Introduction To Precision Planetary Gearboxes Vs. Conventional Gearboxes

A precision planetary gearbox is a specialized type of gearbox. Compared to conventional gearboxes (e.g., worm gear reducers, parallel shaft gear reducers), it differs significantly in structure, performance, and application scenarios. Below are the key distinctions:

1. Structural Design

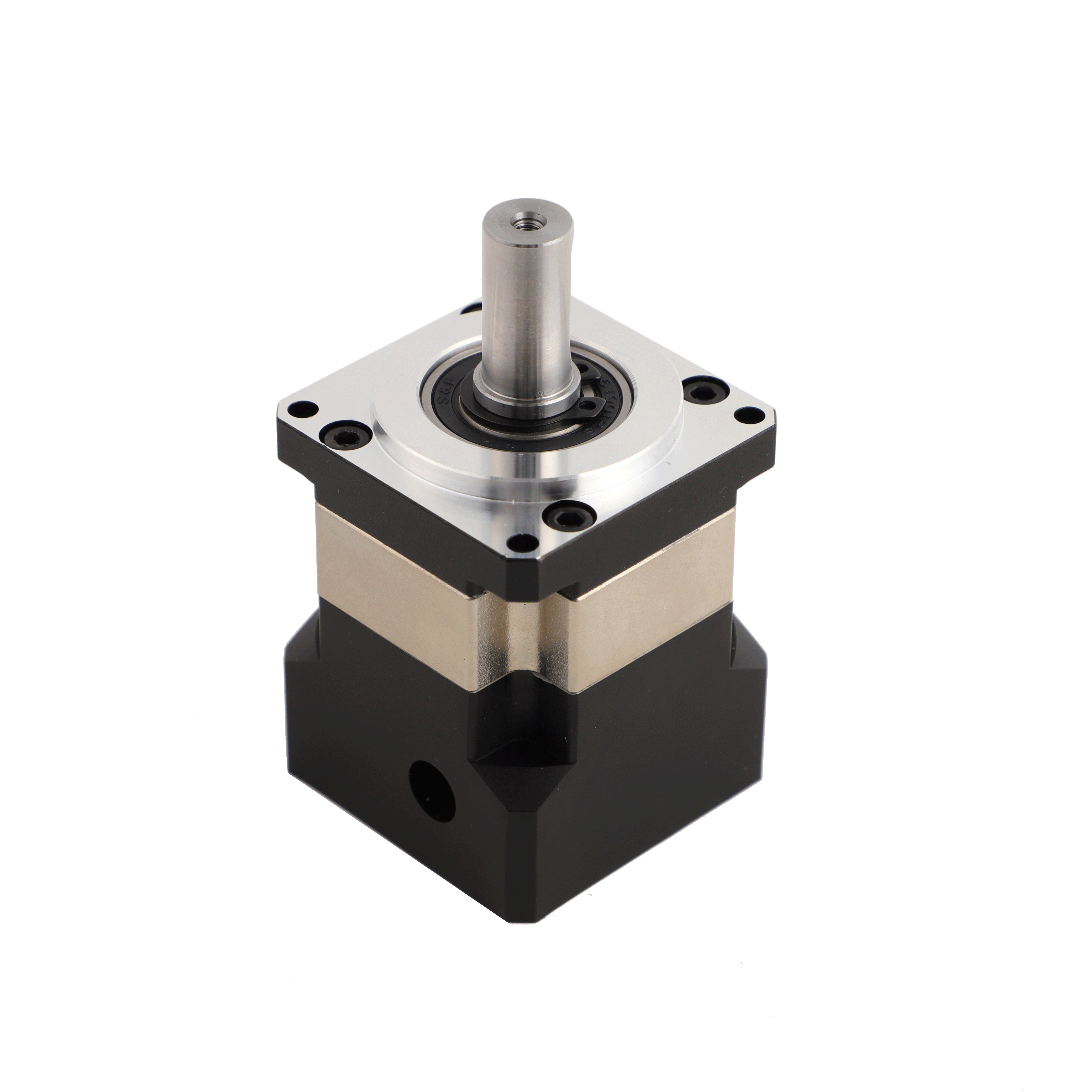

• Precision Planetary Gearbox:

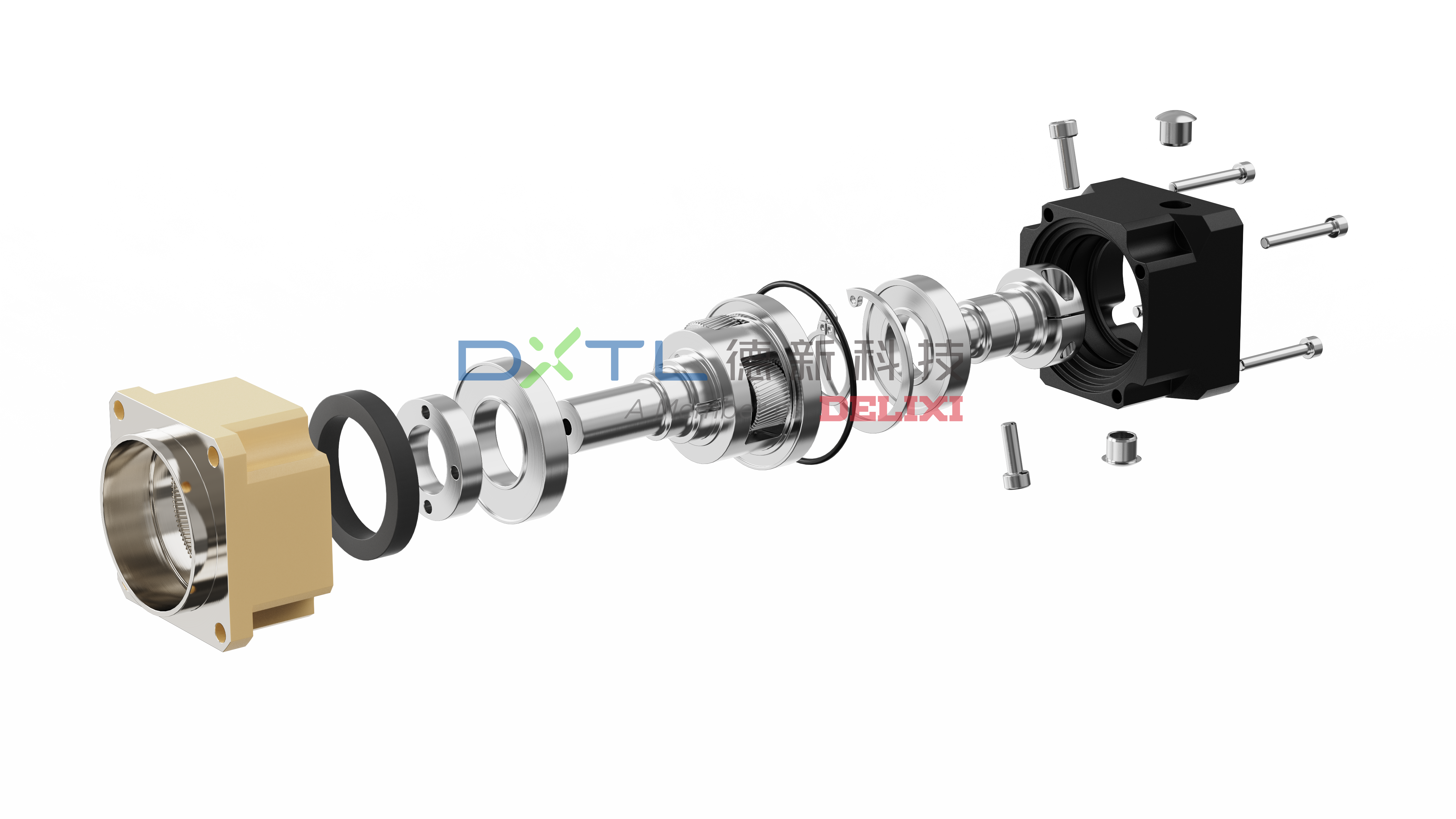

  Uses a planetary gear mechanism consisting of a sun gear, planetary gears, an internal ring gear, and a carrier. Power is transmitted through multiple planetary gears simultaneously, resulting in a compact and symmetrically distributed structure. This design effectively disperses loads and reduces vibration and shock.
  Features: High rigidity, multi-tooth meshing, compact size, lightweight.




• Conventional Gearbox (e.g., worm gear reducer):
  Employs a perpendicular meshing structure between a worm and a worm wheel, typically transmitting motion at a 90-degree angle. Sliding friction in worm gears leads to lower efficiency.
  Features: Large single-stage reduction ratio, self-locking capability, simple structure but bulkier.




2. Performance Comparison

3. Applications

• Precision Planetary Gearbox:
  Ideal for high-precision, high-dynamic-response scenarios, such as industrial robots, CNC machines, semiconductor equipment, and aerospace systems. Often paired with servo motors for precise control.

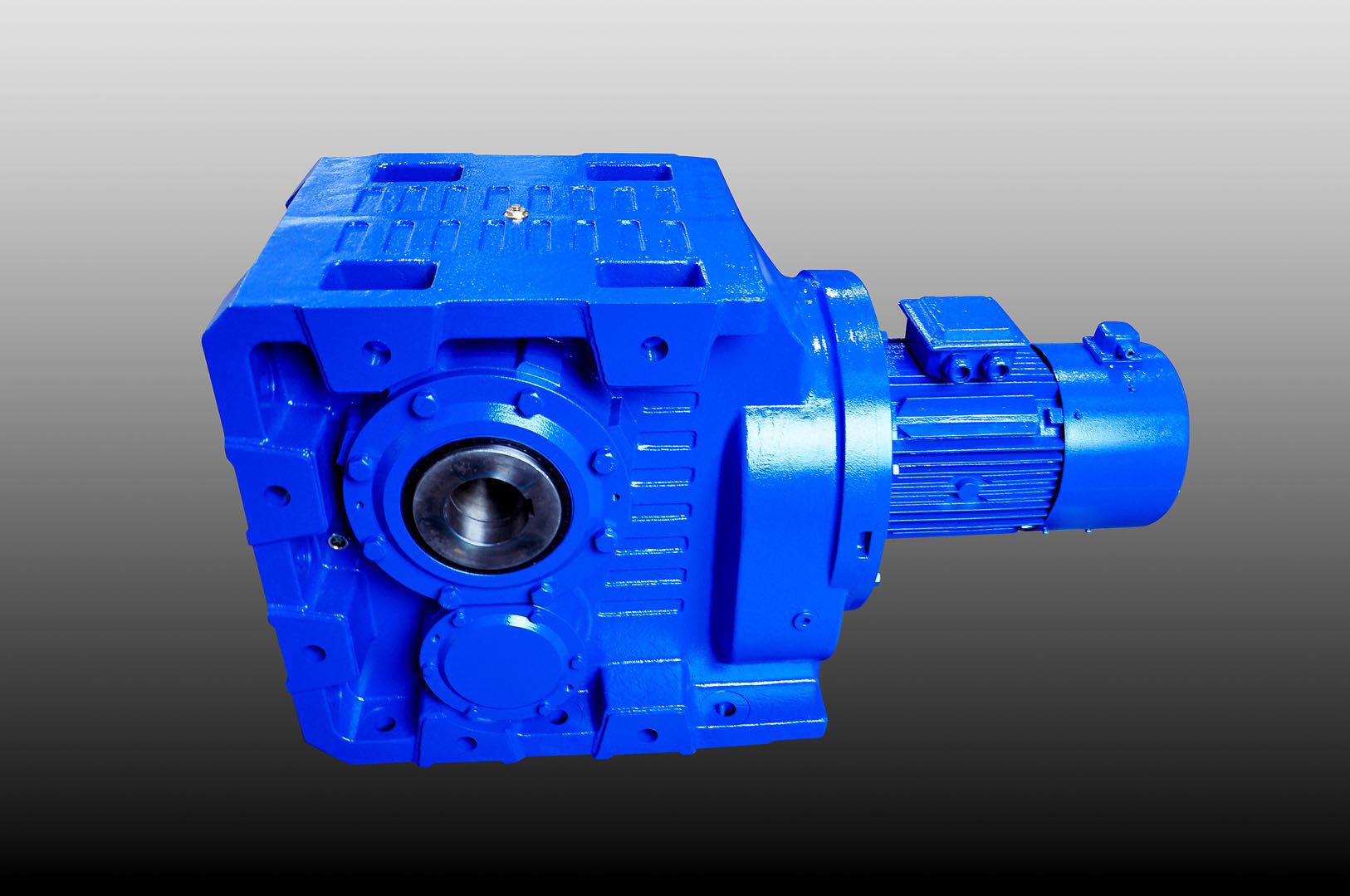

• Conventional Gearbox:
  Suitable for low-precision applications like conveyors, cranes, mixers, and general machinery. Focuses on cost-effectiveness and basic power transmission.

4. Cost and Maintenance

• Cost:
  Precision planetary gearboxes are significantly more expensive (often several times higher) due to high-quality materials and precision manufacturing (e.g., hardened gears, heat treatment).
  Conventional gearboxes (e.g., worm gears) are simpler and cheaper.

• Maintenance:
  Planetary gearboxes require periodic lubrication but have long lifespans (up to tens of thousands of hours).
  Worm gears suffer from friction-induced wear, requiring frequent replacements and higher maintenance costs.

5. Case Studies

• Precision Planetary Gearbox:
  An industrial robot joint requiring ±0.01mm repeatability uses a planetary gearbox (backlash ≤3 arcmin).

• Conventional Worm Gearbox:
  A warehouse elevator needing unidirectional motion and self-locking uses a worm gearbox (cost reduced by 50%).

Summary

• Precision Planetary Gearbox: High accuracy, efficiency, compactness—ideal for advanced automation.

• Conventional Gearbox: Cost-effective, simple—suited for basic industrial tasks.

Selection depends on specific needs (precision, load, space, budget). For high-precision motion control, planetary gearboxes are essential; for general purposes, conventional gearboxes suffice.
