| Quantity: | |
|---|---|

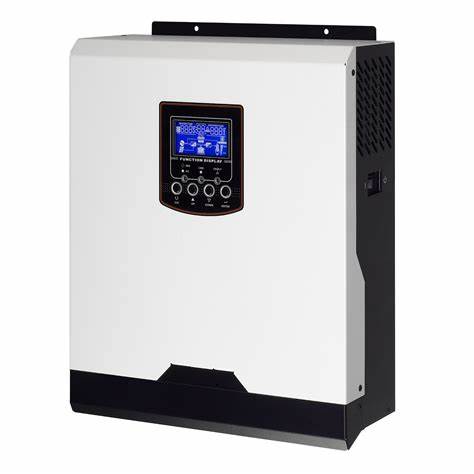

| SUOER 4.2KW Hybrid Solar Inverter | |
| INVERTER CHARGER | |
| MODEL NAME: | 4.2KW Hybrid Solar Inverter |
| MODEL NUMBER: | VMS-III-4.2KW-24V |
| Color: | White and Black |
| Operating Temperature: | Range-10-50°C |
| PV INPUT: | |
| Nominal operating voltage: | 240Vdc |
| Vmax PV: | 500Vdc |
| PV input voltage range: | 90-450Vdc |
| lmax PV: | 27A |
| Full load MPPT range: | 240~450Vdc |
| Rated Power: | 6500W |
| Maximum Solar Charging Current: | 120A |
| GRIDIAC OUTPUT: | |
| Nominal Output Voltage: | 220/230/240Vac |
| Feed-in Grid Voltage Range: | 195~253Vac |
| Feed-in Grid Frequency Range: | 49~51+1HZ |
| Nominal Output Current: | 18.2A |
| Power Factor Range: | >0.99 |
| Maximum Conversion Efficiency(DClAC): | 97% |
| Nominal Operating Frequency: | 50/60Hz |
| TWO LOAD OUTPUT POWER: | |
| Full Load: | 4200w |
| Maximum Main Load: | 4200w |
| Maximum Second Load: | 1400W |
| Main Load Cut Off Voltage: | 22VDC |
| Main Load Return Voltage: | 26VDC |
| AC INPUT: | |
| Nominal operating voltage: | 230Vac |
| Maximum input current: | 30A |
| Nominal operating frequency: | 50/60Hz |
| Surge power: | 8400VA |
| Maximum Ac charging Current: | 100A |
| BATTERY: | |
| Battery voltage range: | 20~33VDC |
| Maximum battery current: | 200A |
FAQ
Q1.Who are we?
A1.We are a R&D and manufacture company which start from 2005. "SUOER" is a registered brand in China. We can take OEM orders as well.
Q2.What can you buy from us?
A2.Solar tied inverter, solar off grid hybrid solar inverter, Solar pumping inverter, Pure sine wave inverter, Modified sine wave inverter, MPPT/PWM solar controller, battery charger, Solar lighting system, power converter
Q3. What is our advantage ?
A3.We have professional R&D team, can customized the products you want.
We have 20,000 square meters and more than 600 staffs.
Q4. How can we guarantee quality?
A4.Always a pre-production sample before mass production;
Always final Inspection before packing.
Q5. How to select a suitable products?
A5.Tell us your demand, we can recommend a suitable inverter to you.
Q6. How long can we offer a sample?
A6.Most products are in stock, you can buy sample and be shipped at any time.
