42mm High Precision Spur Gear Planetary Gearbox with Double Stage

42mm High Precision Spur Gear Planetary Gearbox Round Mounted Flange with Double Stage

Planetary gearbox is a versatile industrial product that reduces the speed of the motor while increasing the output torque. Planetary gearboxes can be used as supporting components in lifting, excavation, transportation, construction and other industries.

Model:
HPR42-L2/HPR42-L2-SW

Ratio:	16/20/25/35/40/50/70/100
Norminal output torque:	10-12N.m
Input speed:	1000-2000rpm
Backlash:	≤20arcmin
Efficiency:	94%
Weight:	0.35/0.38kg
Availability:

Quantity:



Inquire Add to Basket

Product Description

Product Introduction

Planetary gearbox is a versatile industrial product that reduces the speed of the motor while increasing the output torque. Planetary gearboxes can be used as supporting components in lifting, excavation, transportation, construction and other industries.

Why Choose Our Products?

1.Round flange shaft output, threaded reverse connection, standardized dimensions
2.Input connections are available in a wide range of sizes and options
3.Steel teeth straight gear transmission, single cantilever structure, simple design, cost-effective
4.Smooth running and low noise

HPR42-L2 IMG_9870_副本 HPR42

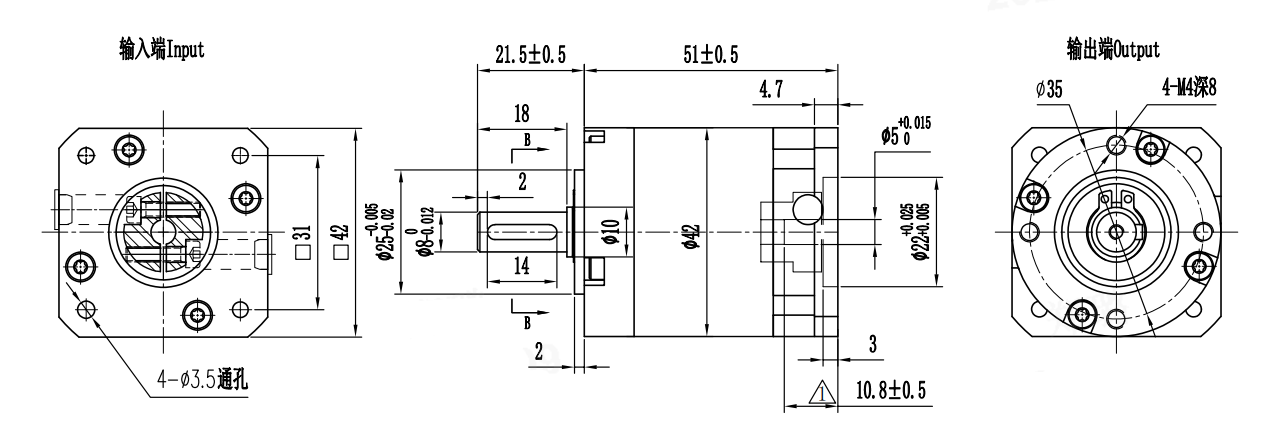

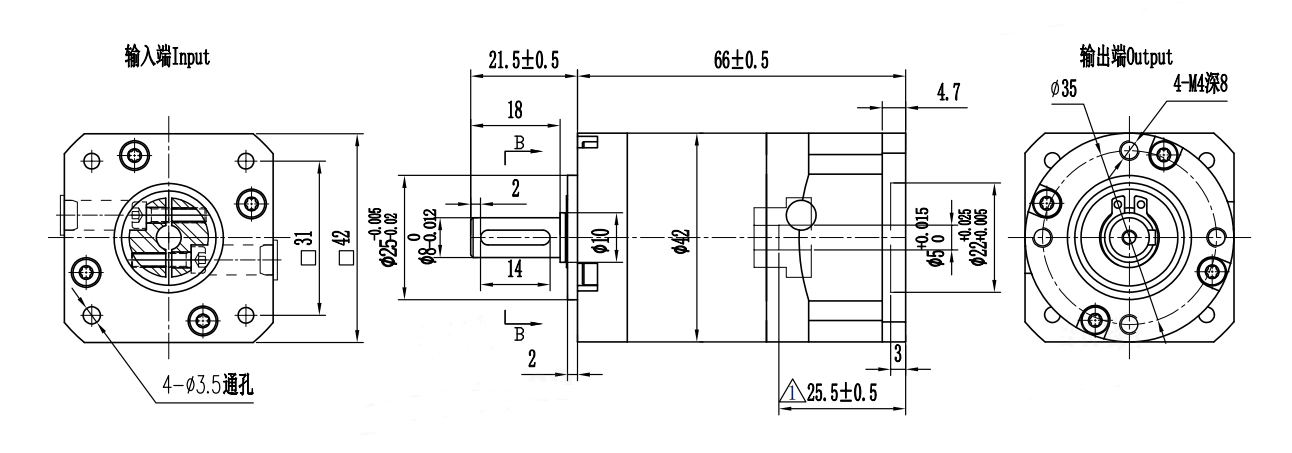

Technical Parameters

HPR42-L2

HPR42-L2
