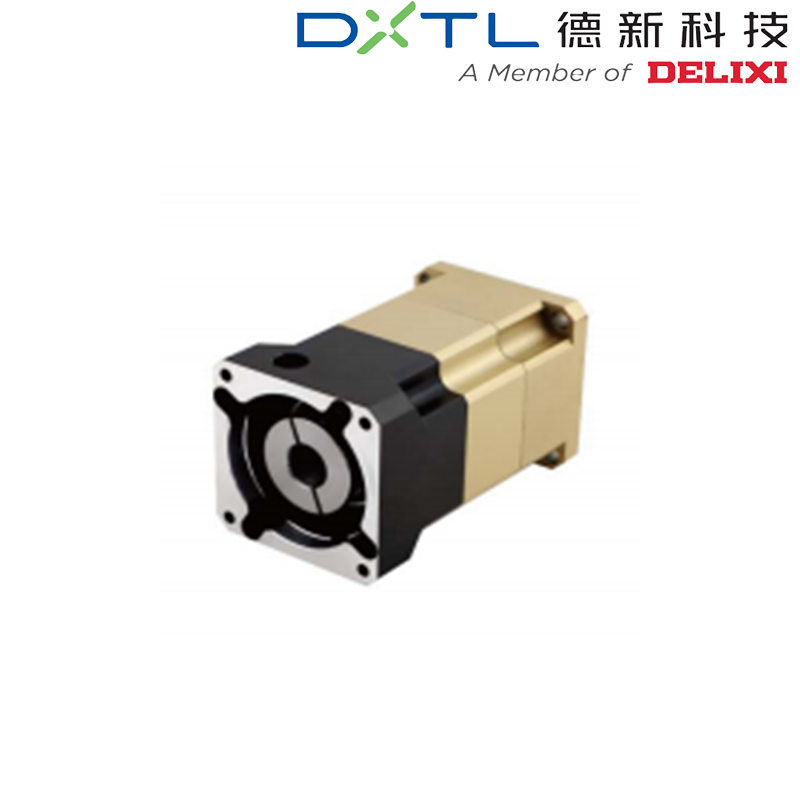

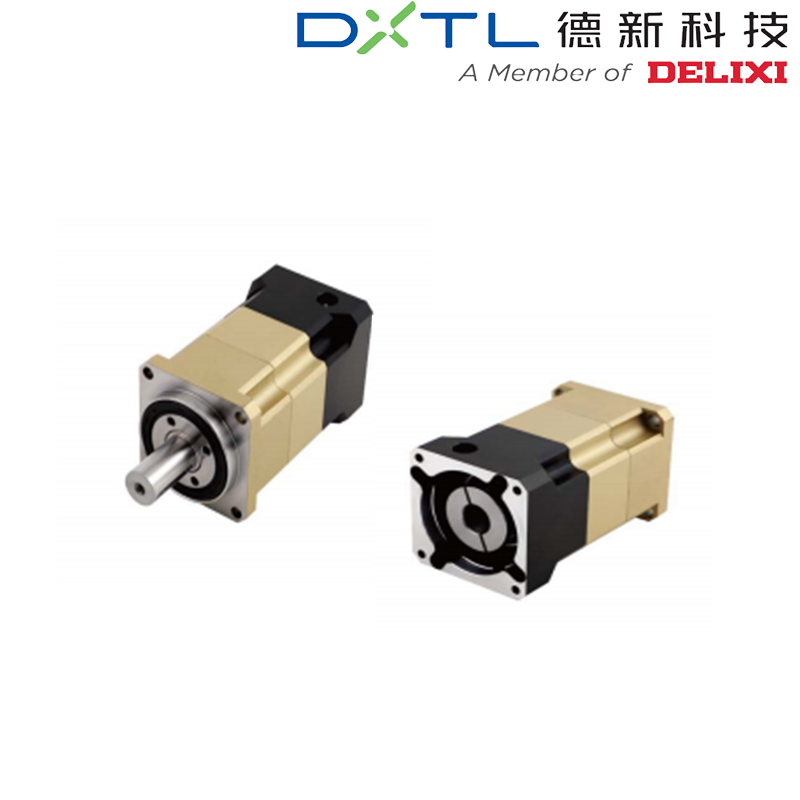

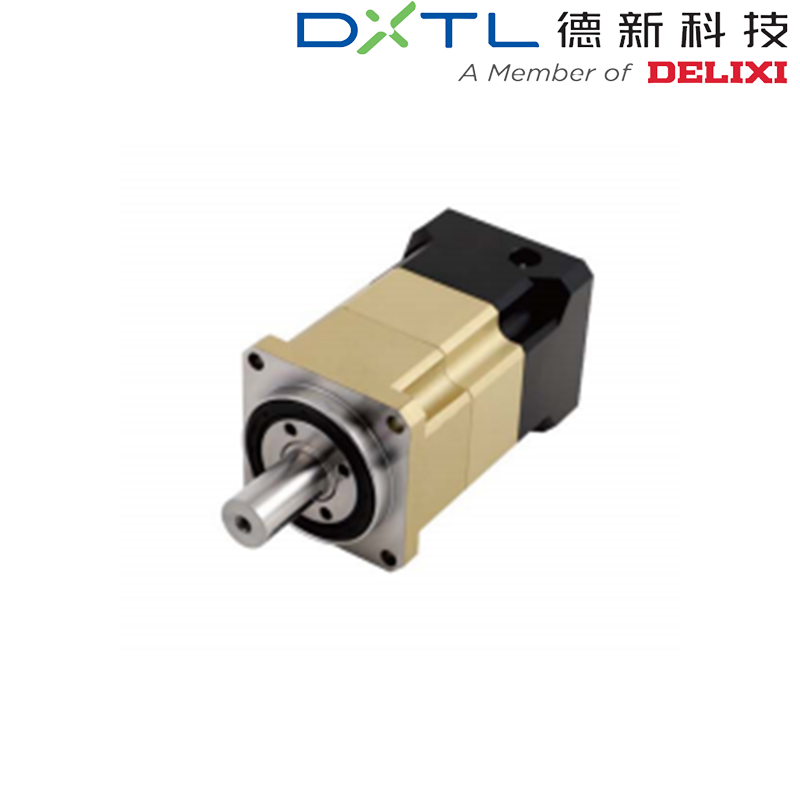

60 Model High Precision Helical Gear Planetary Gearbox

60 Model High Precision Helical Gear Planetary Gearbox

Planetary gearbox is a versatile industrial product that reduces the speed of the motor while increasing the output torque. Planetary gearboxes can be used as supporting components in lifting, excavation, transportation, construction and other industries.

Model:
HXF060

Availability:

Quantity:



Inquire Add to Basket

Product Description

Product Introduction

Planetary gearbox is a versatile industrial product that reduces the speed of the motor while increasing the output torque. Planetary gearboxes can be used as supporting components in lifting, excavation, transportation, construction and other industries.

Why Choose Our Products?

Helical gear transmission, integrated design, high precision, high rigidity
Suitable for frequent forward and reverse rotation at high speed
Higher axial and radial forces can be carried
Low return clearance for more accurate positioning
Inlet shaft can be keywayed

Technical Parameters

Reduction Ratio	Single stage: 03,04,05,07,010 Double stage: 012,016,020,025,028,030,035,040,050,070,100
Total Length Without Output Shaft	72.5-101.5mm
Weight	1.1-1.4kg
Life Span	20000h
Norminal Output Torque (N.m)	Single stage: 104,112,112,100,76 Double stage: 112,112,112,104,112,112,100,76
Norminal/Max Input Speed	3000rpm/6000rpm
Max Radial Load	1530N
Max Axial Load	630N
Backlash	≤5-7arcmin
Working Temp	-20℃~+150℃
Protection Level	IP 65
Efficiency	97%
Lubrication Method	Permanente lubrication
Noises	≤55dB
