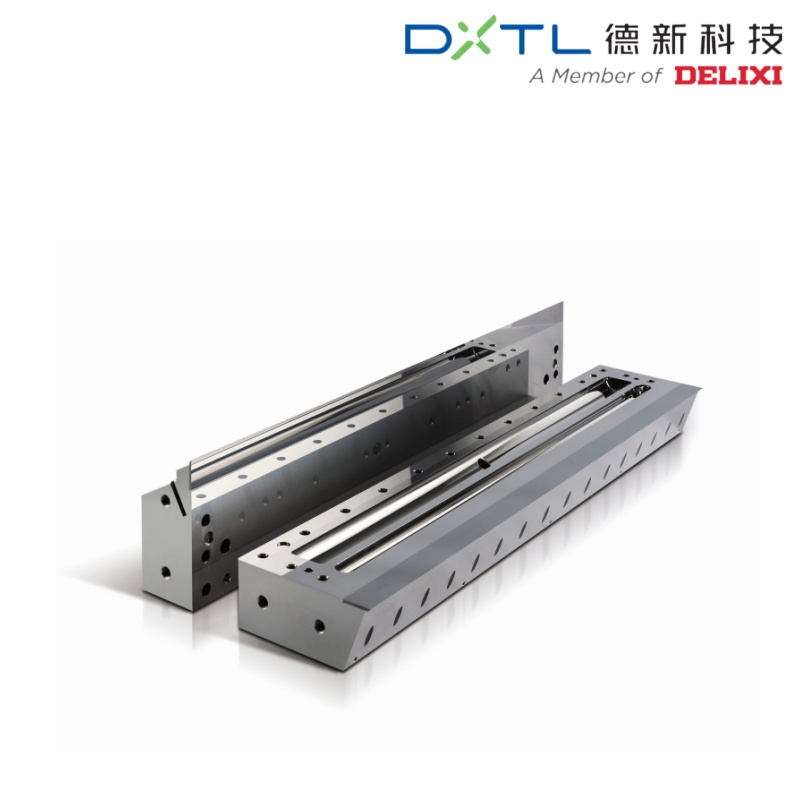

Differential Thread Adjustment Slot Die

The Differential Thread Adjustment Slot Die is a precision tool designed for fine-tuning in forming and cutting applications. This die head features a differential thread mechanism, allowing for ultra-precise adjustments, making it ideal for high-precision manufacturing processes. Its robust design and superior materials ensure durability and reliable performance in demanding industrial settings.

Availability:

Quantity:



Inquire Add to Basket

Product Description

Product Introduce

Slot Die with Differential Thread Adjustment has a simple structure, strong versatility.

Simple structure, strong versatility

Easy to maintain and cost-effective

Specialized lip design

Customized coating cavity

Customized installation method

Can be upgraded to a smart coating die

Hundreds of use cases

Product Details

Technical Parameters

Parameter	Description
Length specification	≤2000mm
Flatness	≤3um
Straightness	≤3um
Roughness of runner	≤Ra0.025
Adjustment method	Differential thread

Product Uses

Differential Thread Adjustment Coating Die Head is a type of coating die head in which the upper die lip is deformed by adjusting the differential screw, thus changing the local pressure and thus adjusting the flow rate to be distributed in a wide direction. The design of this die head is characterized by simple structure, high versatility, easy maintenance and high cost performance. In addition, the lip structure and runner dimensions can be customized to meet the needs of different application scenarios. Differential Thread Adjustment Coating Die Heads are a key component of coating equipment, helping to achieve high precision, high efficiency, and high yield coating operations.

FAQ

Q:How does the differential thread mechanism work?

A:The differential thread mechanism involves two threads with slightly different pitches. As the adjusting nut is turned, the small difference in thread pitches allows for extremely fine adjustments, enabling precise control over the die head's positioning.

Q:What are the key benefits of using a differential thread adjustable die head?

A:The key benefits include ultra-precise adjustments with an accuracy of ±0.001 mm, robust construction for durability, versatility across various materials and applications, and easy adjustment for quick setup and fine-tuning.

Please inquire us for more details of this product!
