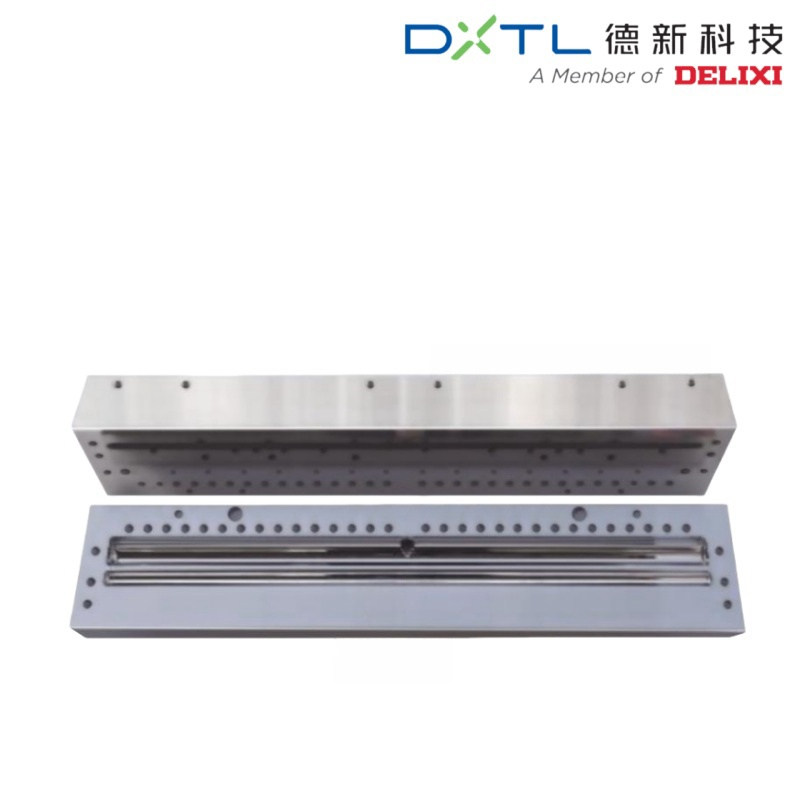

Ultra-hard Coating Slot Die

An ultra-hard coating die head is a die head with a special coating that covers the surface with an overlay film layer that enhances hardness and wear resistance. This coating is commonly used to improve the service life and performance of a die, especially on the surface of work molds or machine parts to enhance their hardness and wear resistance.

Availability:

Quantity:



Inquire Add to Basket

Product Description

Product Introduce

Exceptional Durability: Constructed from ultra-hard materials, the slot die offers superior wear resistance, extending its operational lifespan and reducing maintenance costs.
High Precision: Provides precise control over coating thickness and width, ensuring uniform application and high-quality finishes across various substrates.
Versatility: Accommodates a wide range of coating materials and viscosities, making it suitable for diverse industrial applications.

Product Details

Technical Parameters

Parameter	Description
Material	Tungsten Carbide, Ceramic Composites, or High-Grade Stainless Steel
Coating Width	50-2000 mm (customizable)
Coating Thickness	1 -500 um with ±1 μm accuracy
Adjustment Mechanism	Precision micrometer or automatic adjustment system
Flow Rate	0.1 -15 L/min
Surface Finish	Ra ≤ 0.02 um
Temperature Control	Integrated heating/cooling system
Viscosity Range	1-20,000 cP
Pressure Range	0-15 bar
Maintenance	Regular cleaning and calibration
Environmental Resistance	Extreme wear and corrosion resistance, suitable for harsh industrial environments
Lead Time	8-10 weeks depending on customization
Warranty	1 year against manufacturing defects
Certification	ISO 9001:2015

Product Uses

The main areas of application for ultra-hard coating die heads include, but are not limited to, the development and application of coating technology, such as single cavity die heads, dual cavity standard type die heads, etc., as well as related product accessories. In addition, ultra-hard coating die heads offer value-added and retrofit services to meet the needs of specific industrial applications.

FAQ

Q:What materials are used in the construction of the ultra-hard coating slot die?

A:The slot die is typically made from ultra-hard materials such as tungsten carbide, ceramic composites, or high-grade stainless steel, ensuring exceptional wear resistance and durability.

Q:How does the ultra-hard coating slot die enhance coating performance?

A:Its precise adjustment mechanisms and high-quality construction materials allow for uniform and accurate coating applications, resulting in superior product quality and performance.

Please inquire us for more details of this product!
