SPECIFICATIONS |

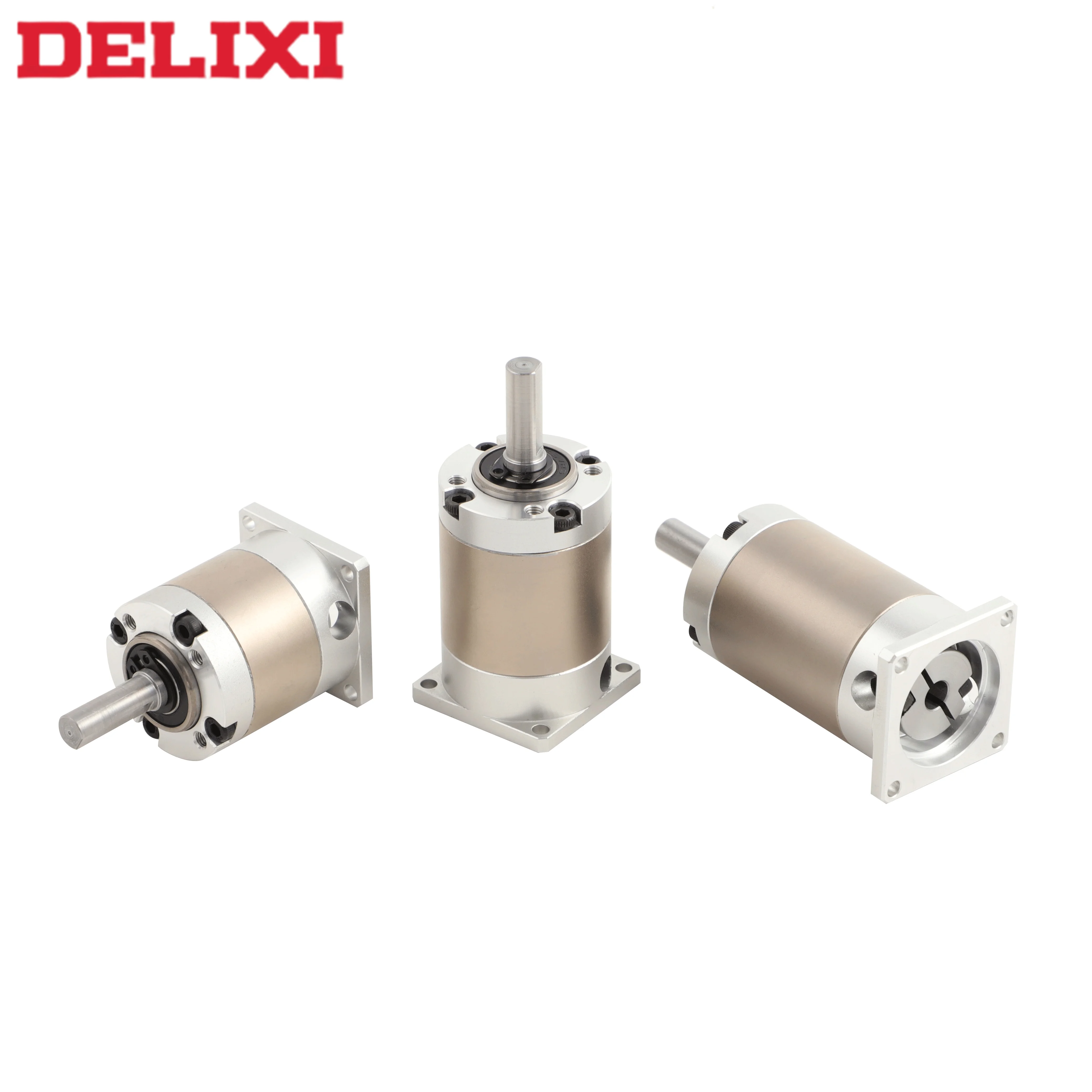

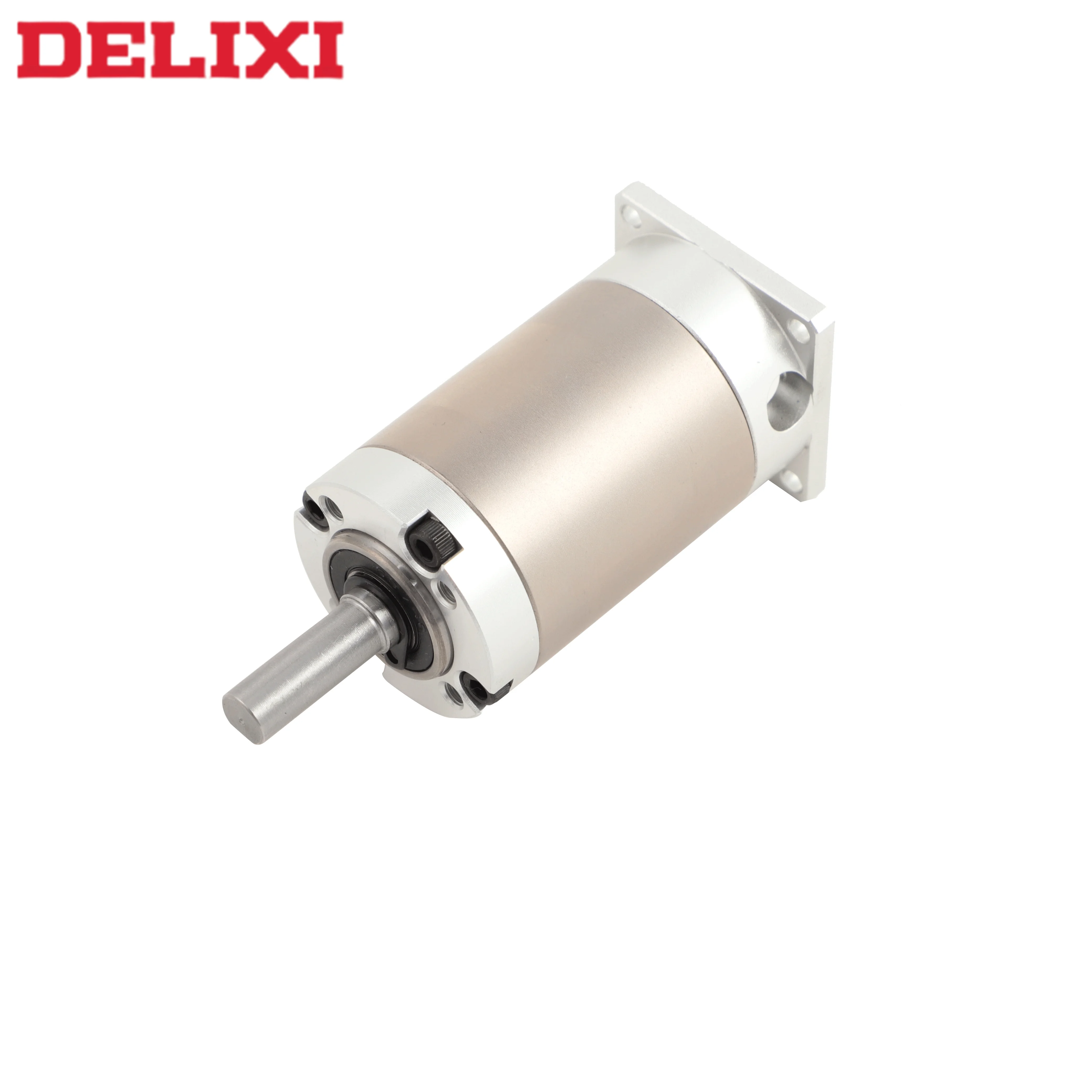

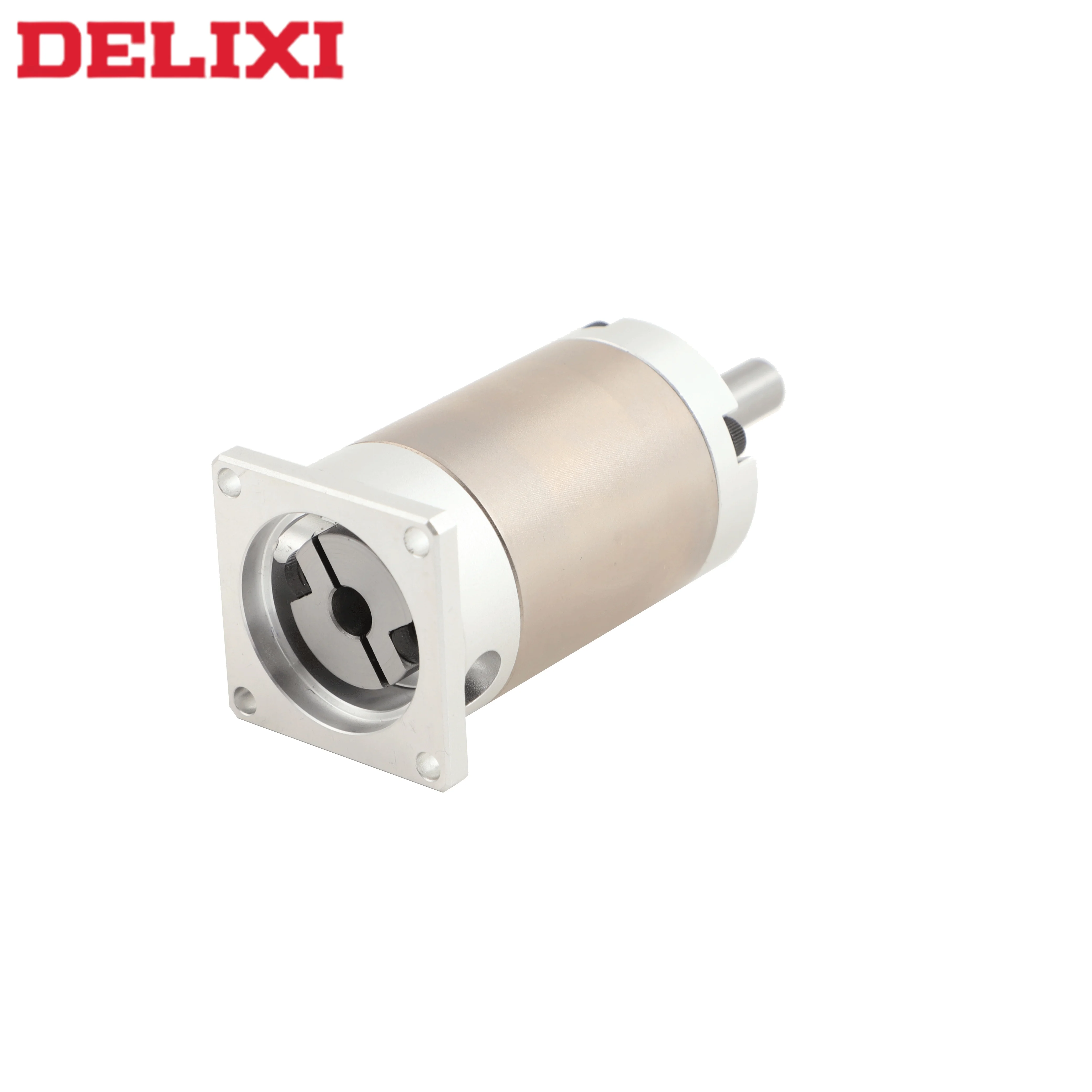

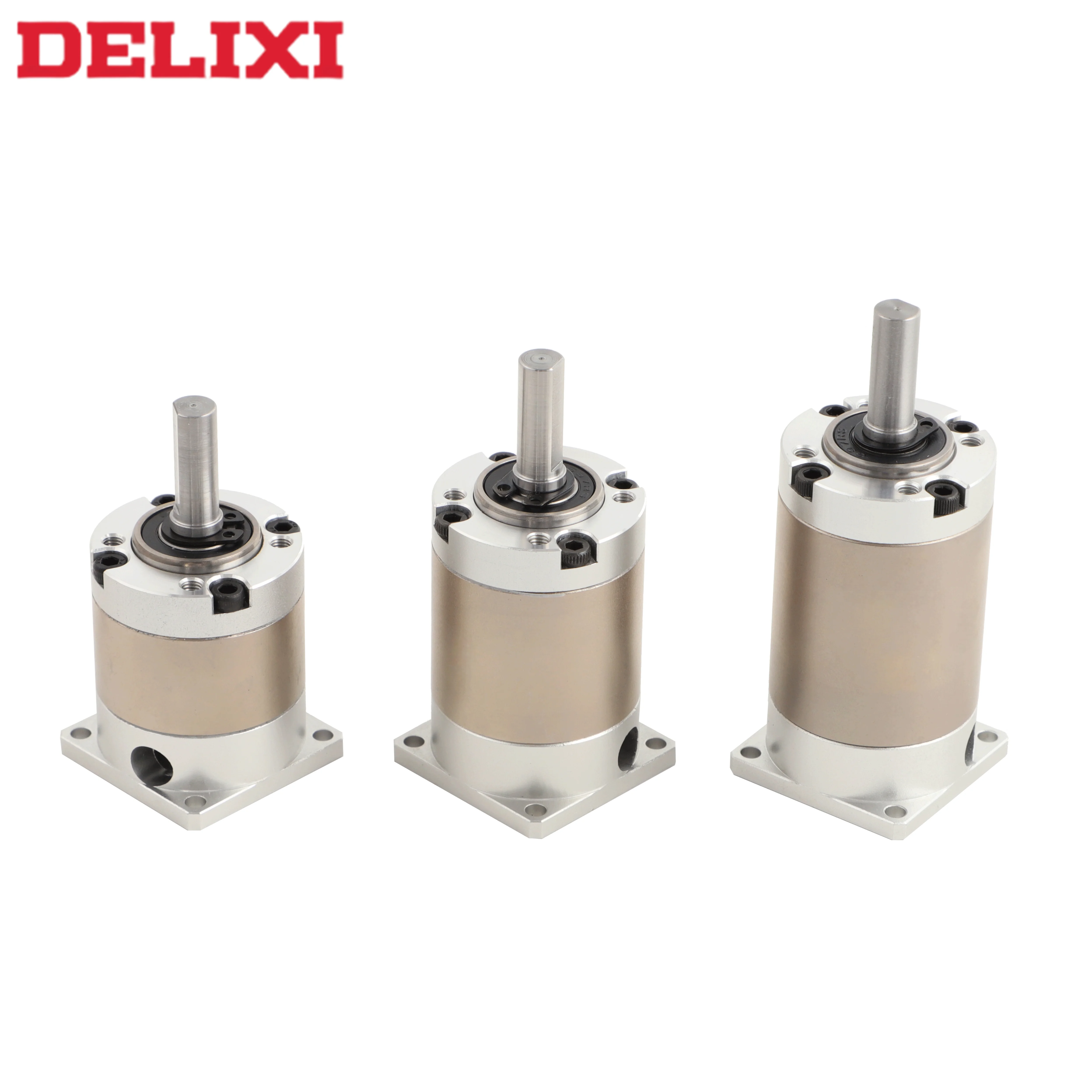

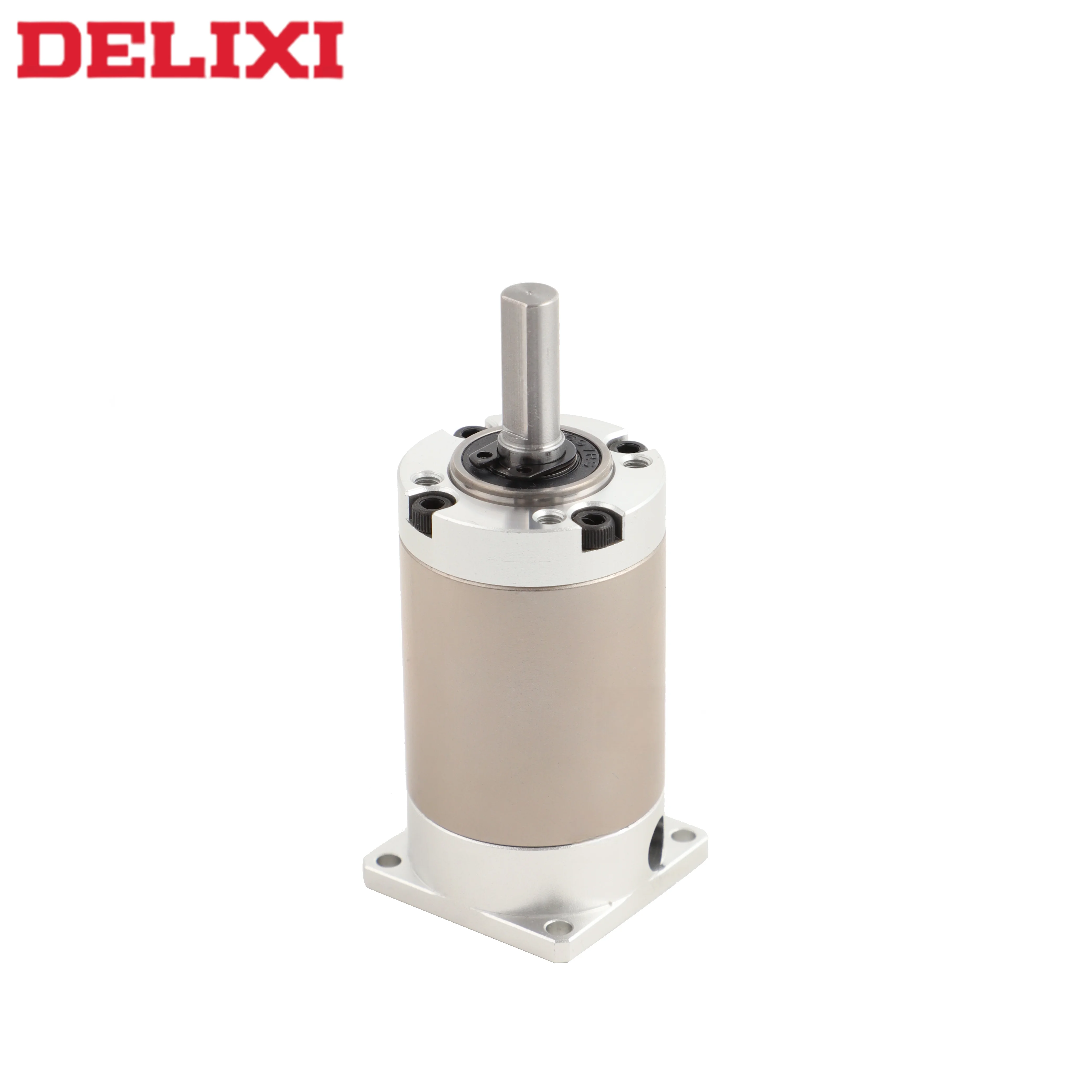

HPR28 Planetary Gearbox |
||
Stage Level |
Single |
Double |
Third |
Ratio |
4 5 7 10 |
16 20 25 28 35 40 50 70 |
64 80 100 125 140 175 200 |
Rated Torque (N.m) |
2 1 |
4 3 |
6 |
Adapted motor |
|||
Rated Input Speed (rpm) |
1000/min |
||
Max Input Speed (rpm) |
2000/min |
||
Backlash |
L1≤15 Arcmin |
L2≤20 Arcmin |
L3≤25 Arcmin |
Fault stop torque(N.m) |
2 times of rated torque |
||
Efficiency |
L1 96% |
L2 94% |
L3 90% |
Average life span |
20000/h |
||
Operating temperature |
-20°～+150° |
||
Nosie |
≤55 db |
||
IP |
54 |
||
Installation method |
Any installation method |
||
L1
L2
L3
