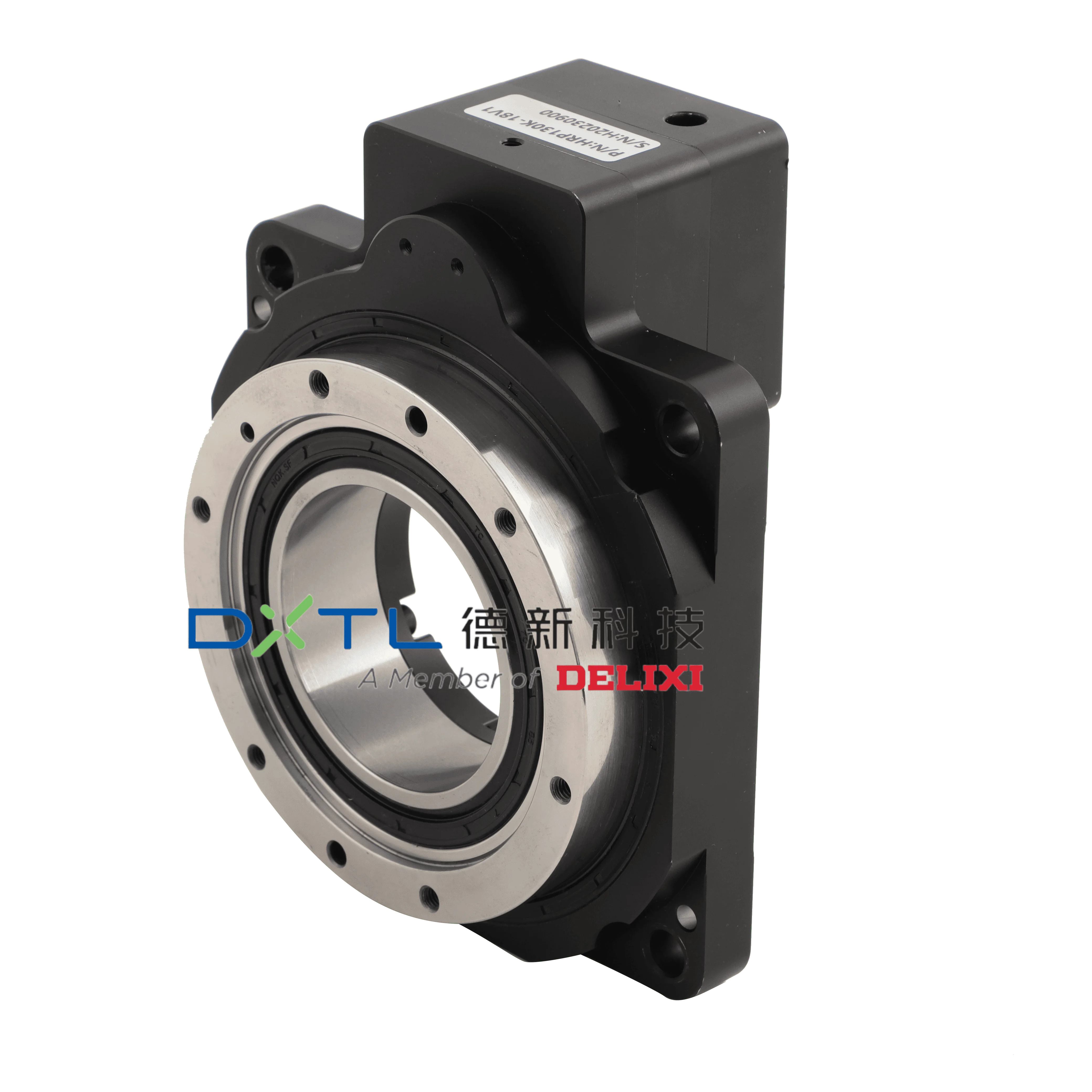

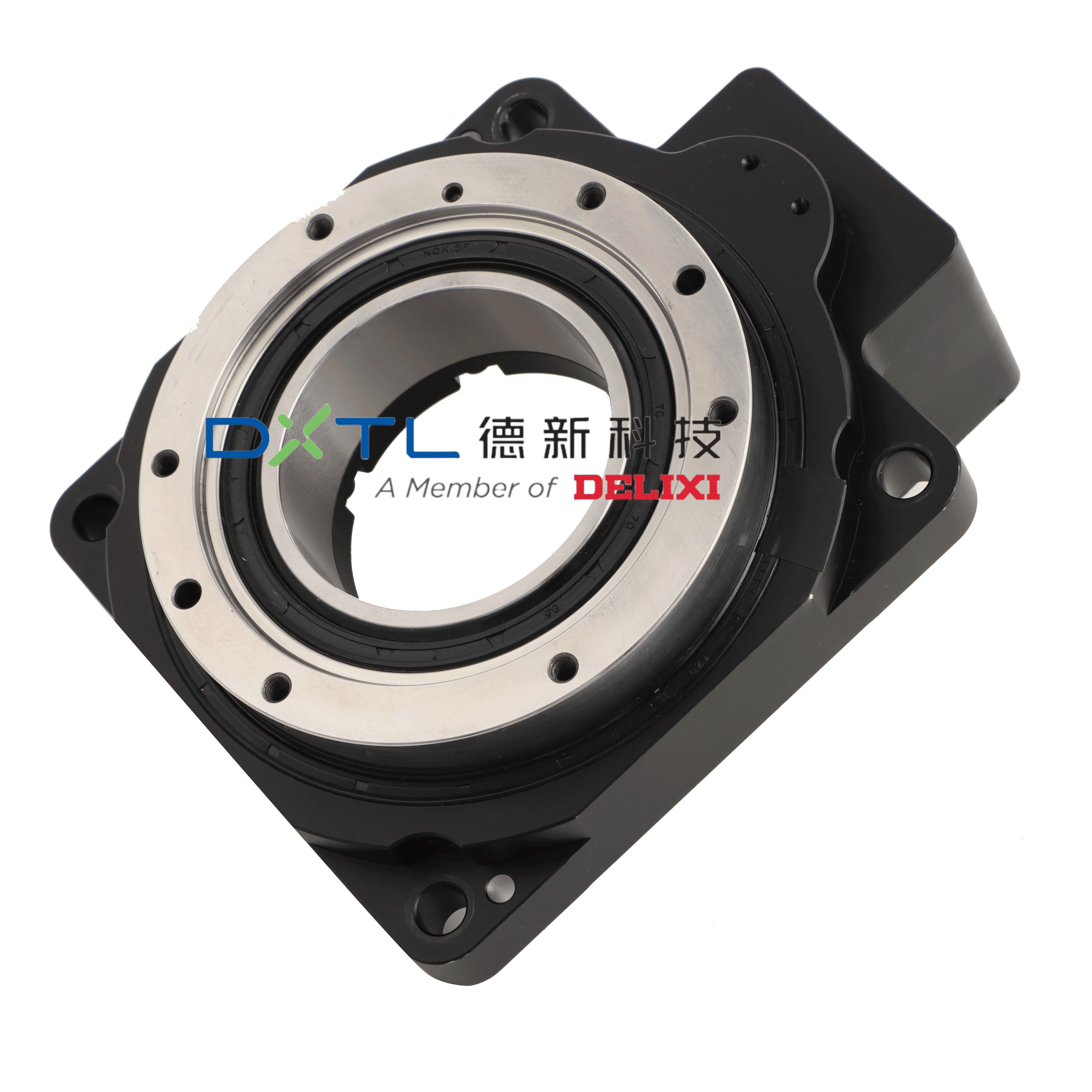

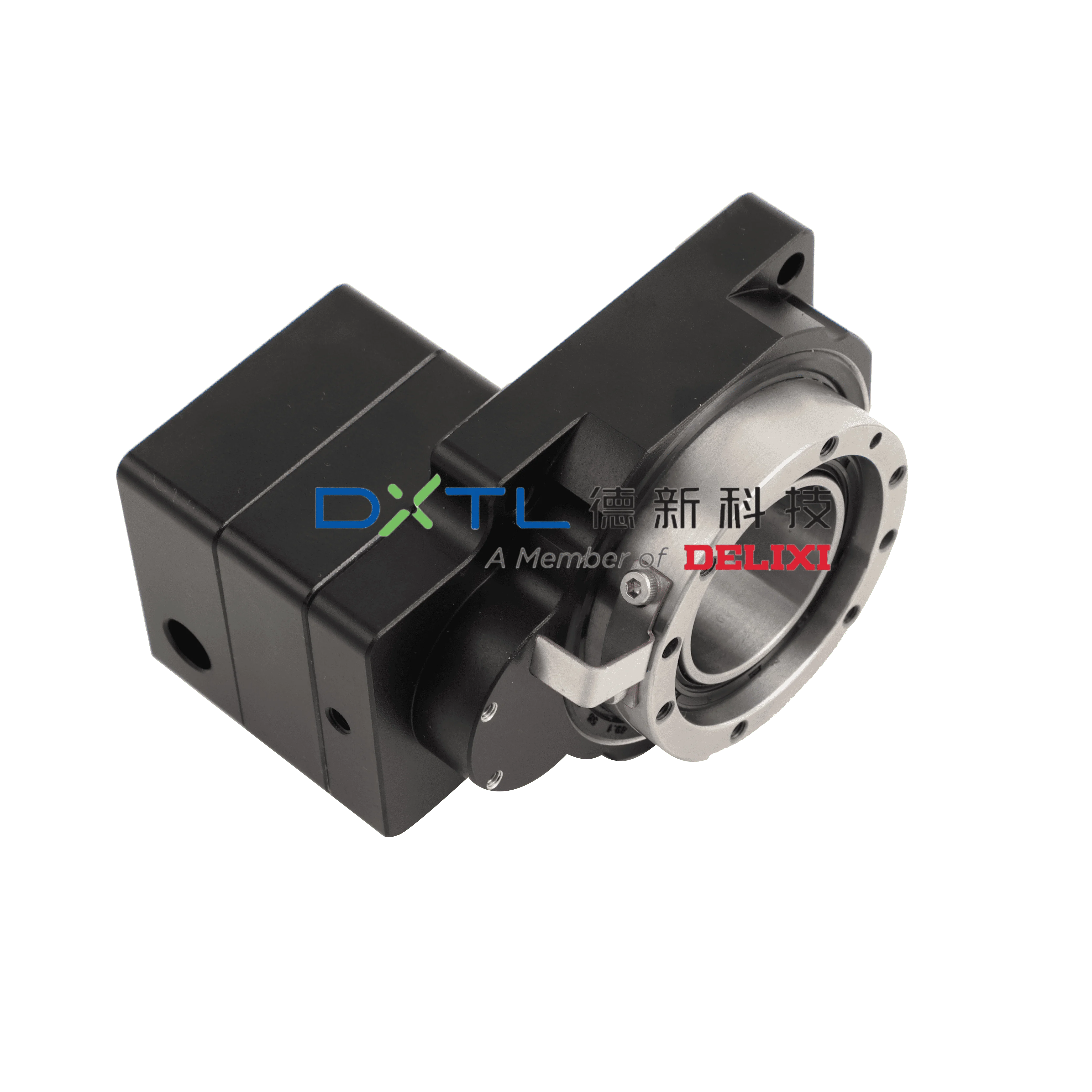

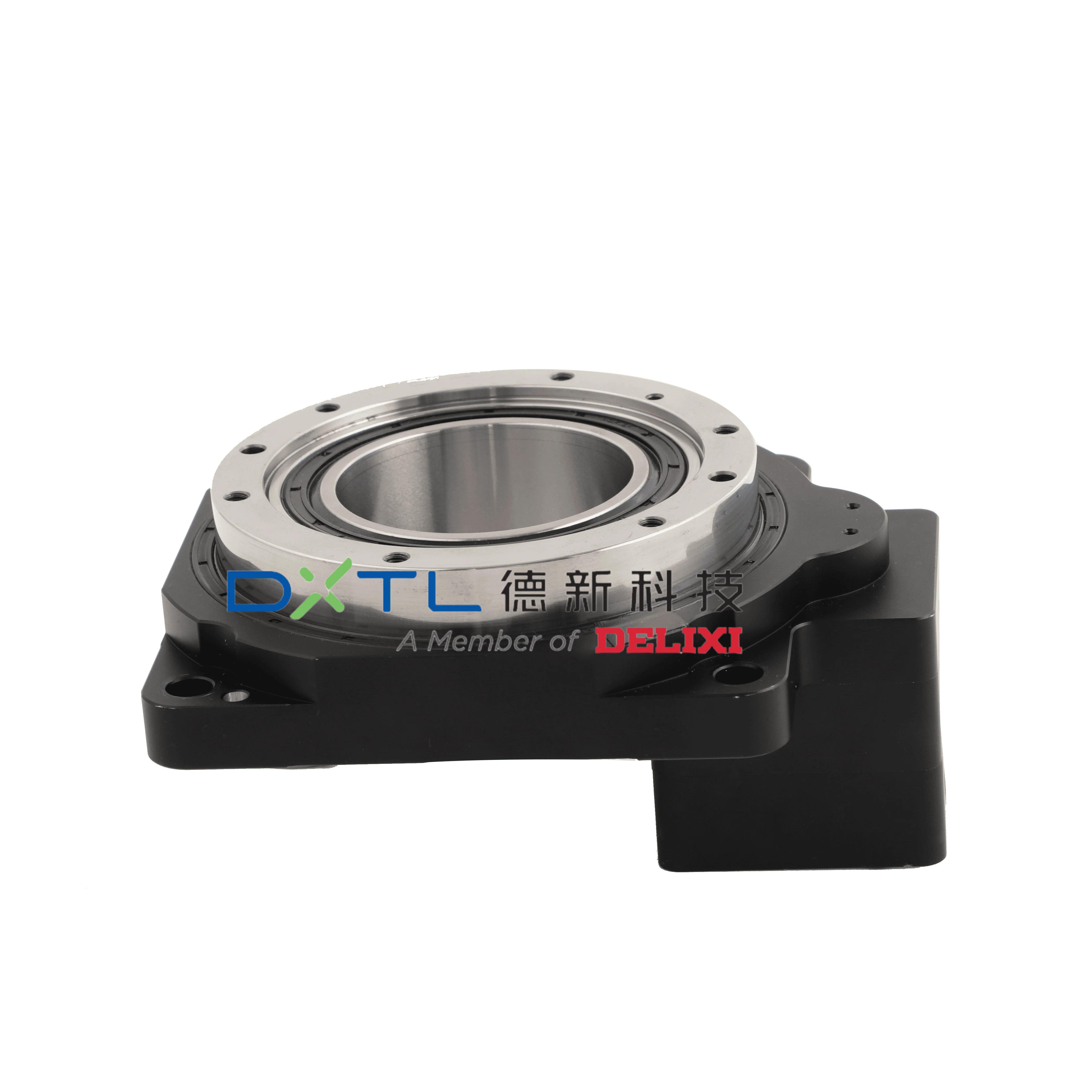

High Precision 130mm Hollow Rotary Platform Planetary Rotating Table CNC Machinery Adapt to 400w Servo Motor 57/60 Stepper Motor
High Precision 130mm Hollow Rotary Platform Planetary Rotating Table CNC Machinery Adapt to 400w Servo Motor 57/60 Stepper Motor
High Precision 130mm Hollow Rotary Platform Planetary Rotating Table CNC Machinery Adapt to 400w Servo Motor 57/60 Stepper Motor
High Precision 130mm Hollow Rotary Platform Planetary Rotating Table CNC Machinery Adapt to 400w Servo Motor 57/60 Stepper Motor
High Precision 130mm Hollow Rotary Platform Planetary Rotating Table CNC Machinery Adapt to 400w Servo Motor 57/60 Stepper Motor
High Precision 130mm Hollow Rotary Platform Planetary Rotating Table CNC Machinery Adapt to 400w Servo Motor 57/60 Stepper Motor
High Precision 130mm Hollow Rotary Platform Planetary Rotating Table CNC Machinery Adapt to 400w Servo Motor 57/60 Stepper Motor
High Precision 130mm Hollow Rotary Platform Planetary Rotating Table CNC Machinery Adapt to 400w Servo Motor 57/60 Stepper Motor
High Precision 130mm Hollow Rotary Platform Planetary Rotating Table CNC Machinery Adapt to 400w Servo Motor 57/60 Stepper Motor
High Precision 130mm Hollow Rotary Platform Planetary Rotating Table CNC Machinery Adapt to 400w Servo Motor 57/60 Stepper Motor
High Precision 130mm Hollow Rotary Platform Planetary Rotating Table CNC Machinery Adapt to 400w Servo Motor 57/60 Stepper Motor
High Precision 130mm Hollow Rotary Platform Planetary Rotating Table CNC Machinery Adapt to 400w Servo Motor 57/60 Stepper Motor

High Precision 130mm Hollow Rotary Platform Planetary Rotating Table CNC Machinery Adapt to 400w Servo Motor 57/60 Stepper Motor

Inquiry
  • Overview
  • Recommended Products
High Precision 130mm Hollow Rotary Platform Planetary Rotating Table CNC Machinery Adapt to 400w Servo Motor 57/60 Stepper Motor details
High Precision 130mm Hollow Rotary Platform Planetary Rotating Table CNC Machinery Adapt to 400w Servo Motor 57/60 Stepper Motor factory
SPECIFICATIONS
HRP130K Hollow Rotate Plateform
Ratio
5 10 18
Rated Torque (N.m)
20 45
Positioning Accuracy
3 arcmin
Repeatable Positioning
±14 arcsec
Max Radial Load
60N
Max Axial Load
100KG
Parallelism
≤0.015mm
Coaxiality
≤0.015mm
Precision Life
15000/h (intermittent operation)
Operating Temperature
-15°～+90°
Nosie
≤65 db
Transmission Efficiency
≥97%
Lubrication Method
Permanent Lubrication
High Precision 130mm Hollow Rotary Platform Planetary Rotating Table CNC Machinery Adapt to 400w Servo Motor 57/60 Stepper Motor details
T1
High Precision 130mm Hollow Rotary Platform Planetary Rotating Table CNC Machinery Adapt to 400w Servo Motor 57/60 Stepper Motor manufacture
T2
High Precision 130mm Hollow Rotary Platform Planetary Rotating Table CNC Machinery Adapt to 400w Servo Motor 57/60 Stepper Motor details
V1
High Precision 130mm Hollow Rotary Platform Planetary Rotating Table CNC Machinery Adapt to 400w Servo Motor 57/60 Stepper Motor manufacture
V2
High Precision 130mm Hollow Rotary Platform Planetary Rotating Table CNC Machinery Adapt to 400w Servo Motor 57/60 Stepper Motor factory
High Precision 130mm Hollow Rotary Platform Planetary Rotating Table CNC Machinery Adapt to 400w Servo Motor 57/60 Stepper Motor manufacture
High Precision 130mm Hollow Rotary Platform Planetary Rotating Table CNC Machinery Adapt to 400w Servo Motor 57/60 Stepper Motor factory
High Precision 130mm Hollow Rotary Platform Planetary Rotating Table CNC Machinery Adapt to 400w Servo Motor 57/60 Stepper Motor manufacture
High Precision 130mm Hollow Rotary Platform Planetary Rotating Table CNC Machinery Adapt to 400w Servo Motor 57/60 Stepper Motor factory
High Precision 130mm Hollow Rotary Platform Planetary Rotating Table CNC Machinery Adapt to 400w Servo Motor 57/60 Stepper Motor manufacture
High Precision 130mm Hollow Rotary Platform Planetary Rotating Table CNC Machinery Adapt to 400w Servo Motor 57/60 Stepper Motor manufacture
High Precision 130mm Hollow Rotary Platform Planetary Rotating Table CNC Machinery Adapt to 400w Servo Motor 57/60 Stepper Motor supplier
