42mm High Precision Spur Gear Planetary Gearbox Square Mounted Flange with Single Stage

42mm High Precision Spur Gear Planetary Gearbox Square Mounted Flange with Single Stage

Planetary gearbox is a versatile industrial product that reduces the speed of the motor while increasing the output torque. Planetary gearboxes can be used as supporting components in lifting, excavation, transportation, construction and other industries.

Model:
HPS42-L1 / HPS42-L1-SW / HPS42-L1-MA(MB)

Ratio:	04/05/07/10
Norminal output torque:	5-9N.m
Input speed:	1000-2000rpm
Backlash:	≤15arcmin
Efficiency:	96%
Weight:	0.25/0.3/0.4kg
Availability:

Quantity:



Inquire Add to Basket

Product Description

Product Introduction

Planetary gearbox is a versatile industrial product that reduces the speed of the motor while increasing the output torque. Planetary gearboxes can be used as supporting components in lifting, excavation, transportation, construction and other industries.

Why Choose Our Products?

1.Square flange shaft output, standardized dimensions
2.Input connections are available in a wide range of sizes and options
3.Steel teeth straight gear transmission, single cantilever structure, simple design, cost-effective
4.Smooth running and low noise

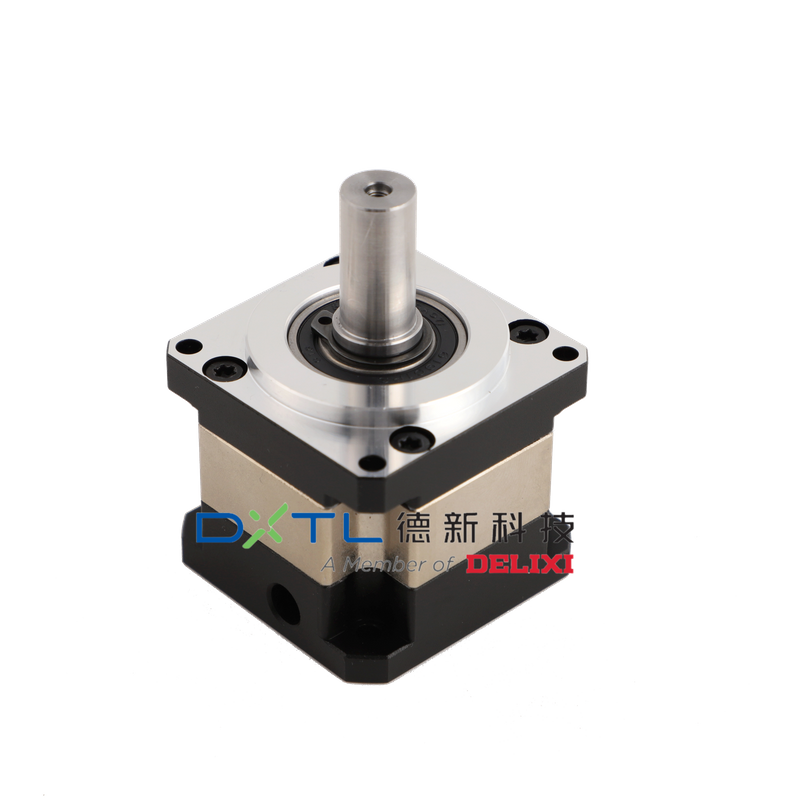

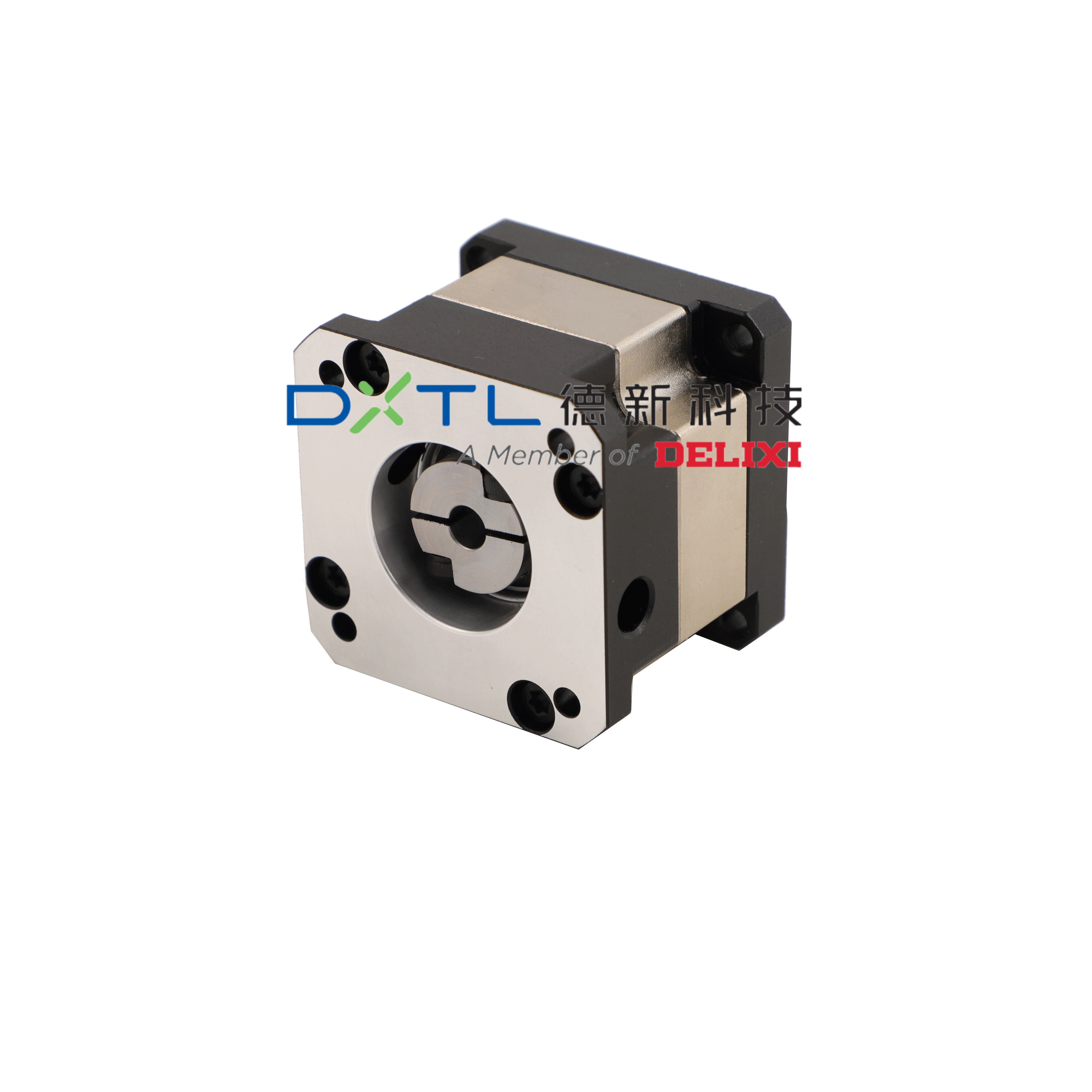

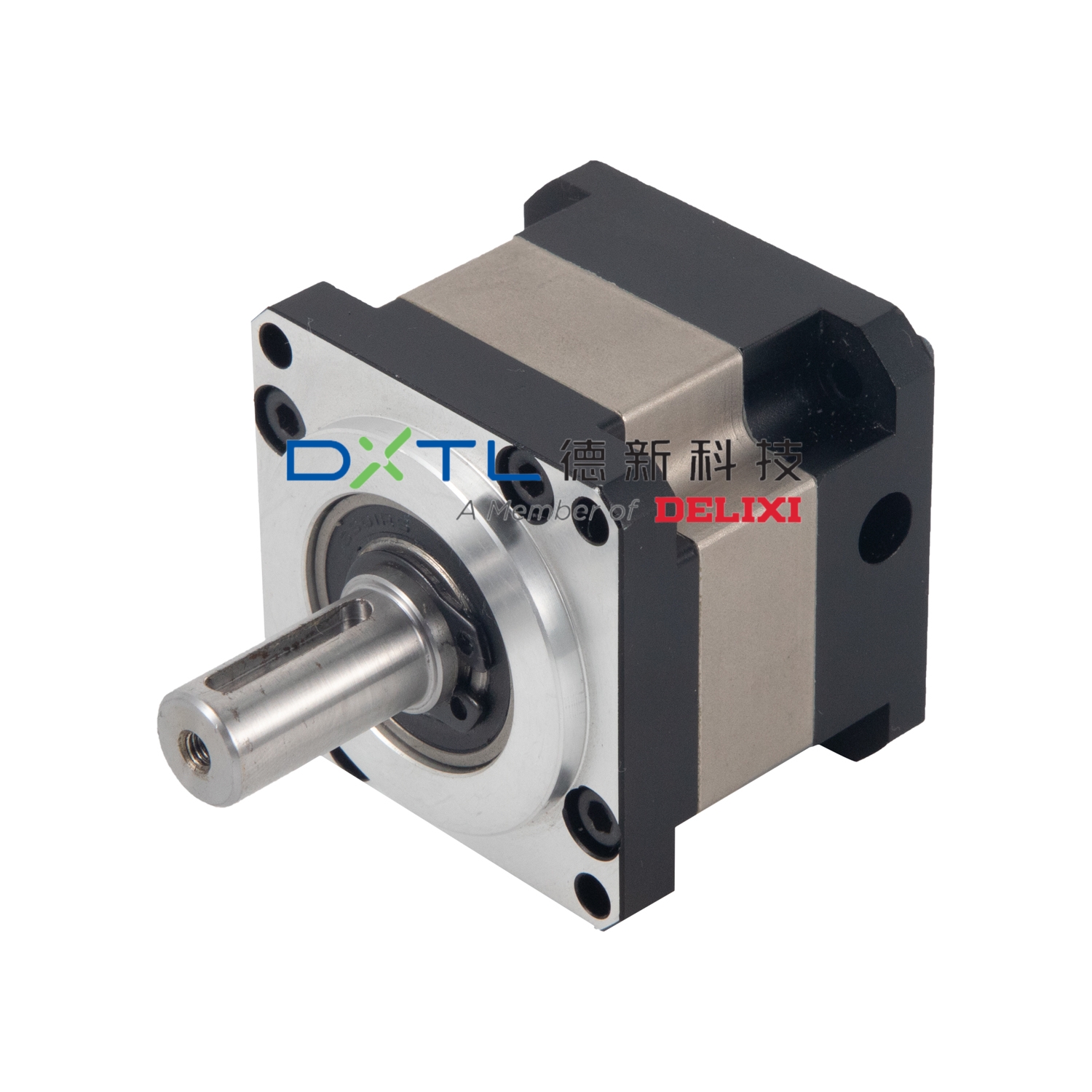

IMG_9923_副本 023_副本 IMG_9928_副本

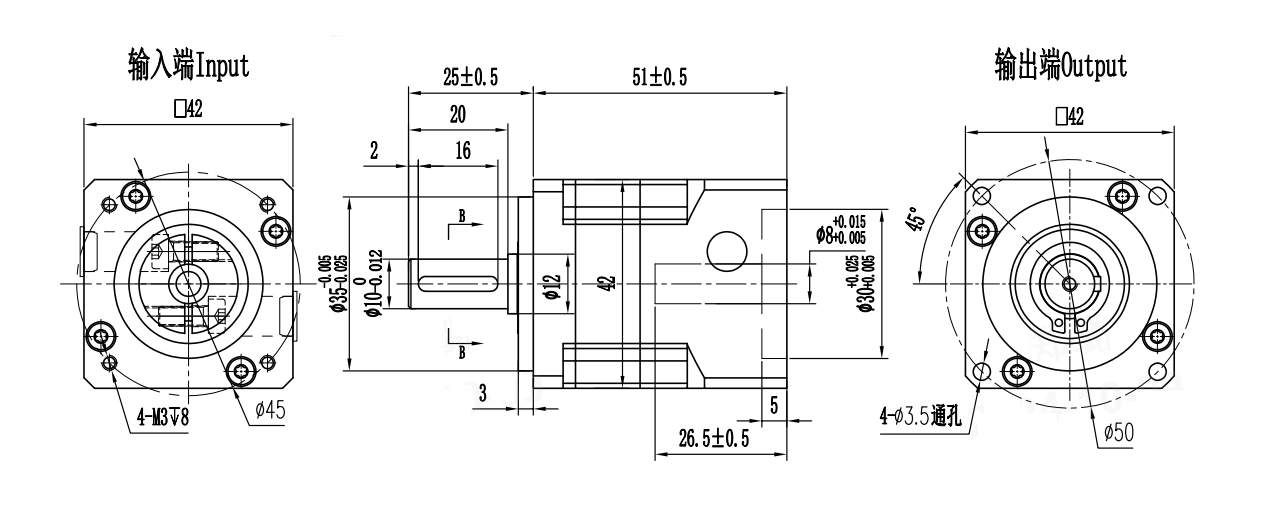

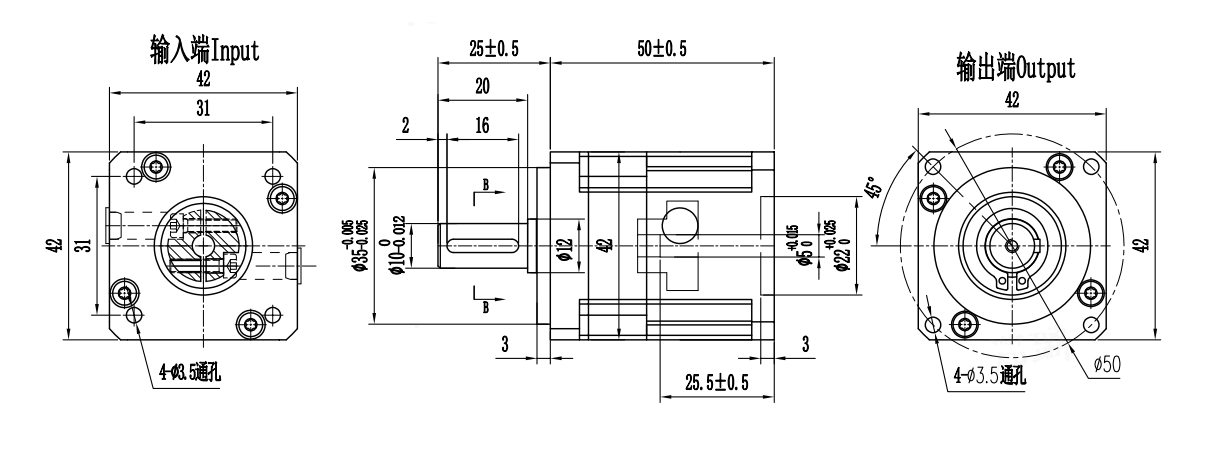

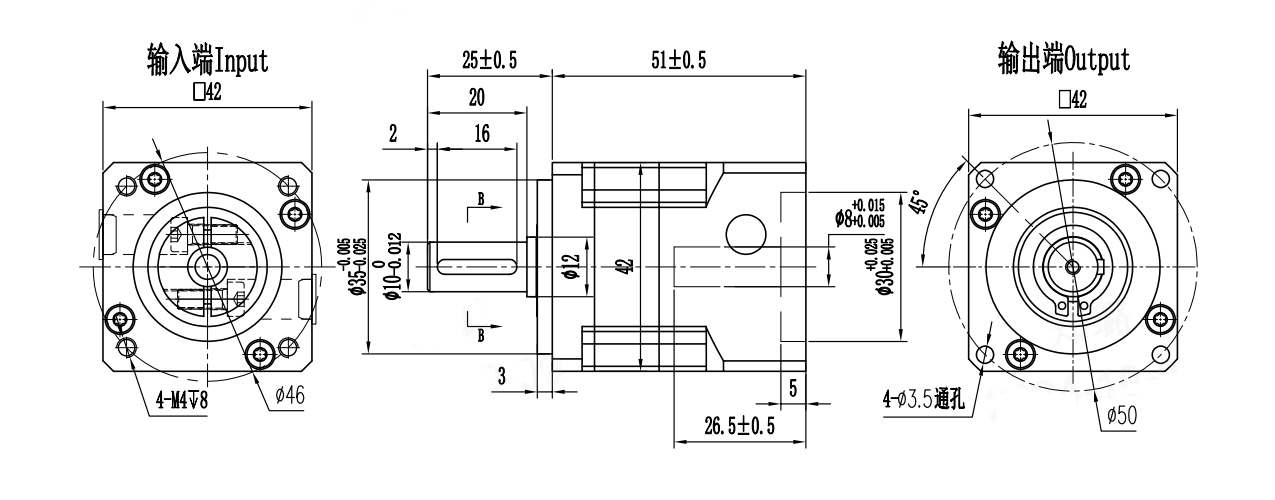

Technical Parameters

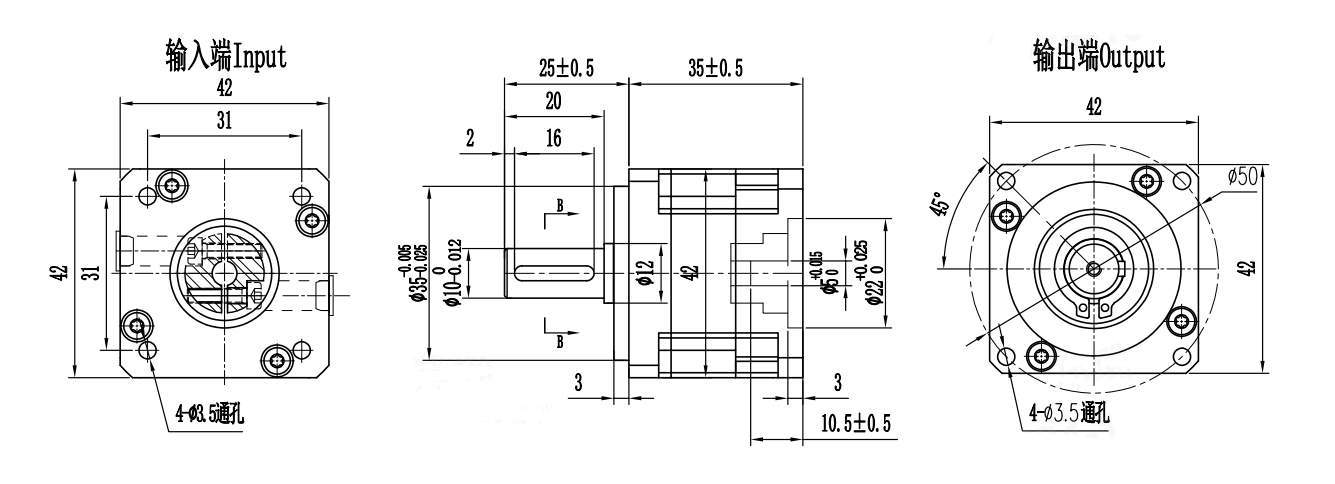

HPS42-L1

HPS42-L1
