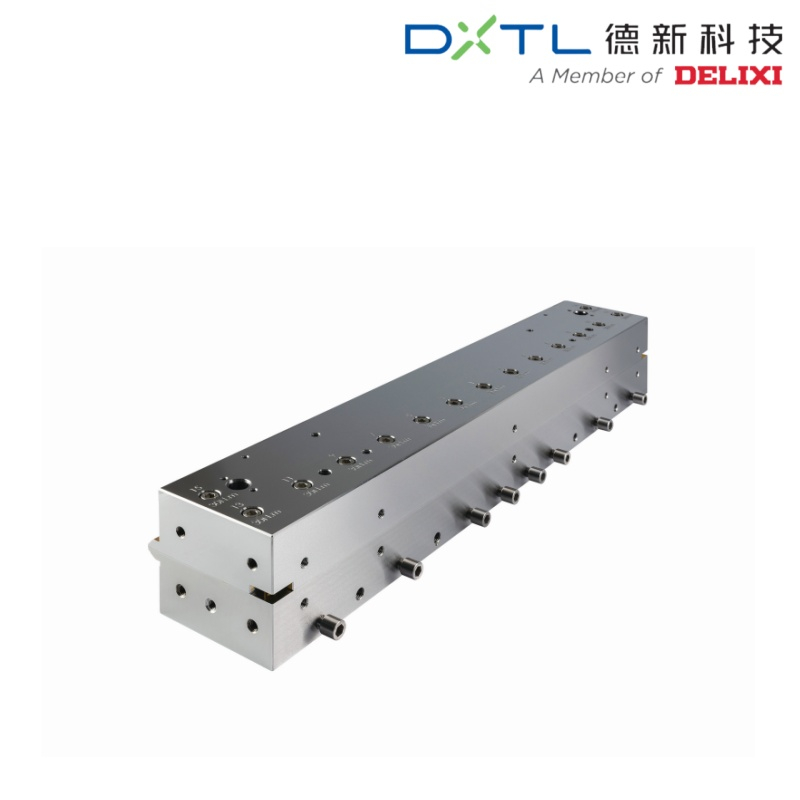

Push-pull Adjustment Coating Die

The Push-Pull Rod Adjustment coating die head is a manual adjustment of the coating die head by means of a push-pull rod with an adjustment accuracy of 1 μm and 6 adjustments with a spacing of 29.5 mm on the left and right and 46 mm in the center, which allows the operator to manually manipulate the push-pull rod to fine-tune the position of the die head and thus achieve precise control of the coating process. This allows the operator to fine-tune the position of the coating die head by manually operating the push-pull lever, thus enabling precise control of the coating process.

Availability:

Quantity:



Inquire Add to Basket

Product Description

Product Introduce

Push-pull Adjustment Coating Die is a precision coating tool designed for efficient and accurate control of the coating thickness. This innovative design utilizes differential threads to adjust the gap between the die lips, allowing for precise control over the coating process.

Push-pull adjustment coating die adopts a special lip structure design, which has high precision and good stability.

Stable meniscus, high product precision

Rich product implementation cases

Independent dispensing function

Special lip design

Self-cleaning runner, effectively reducing local

abnormalities at the edge

Customized installation method

Hundreds of use cases

Product Details

Technical Parameters

Parameter	Description
Length specification	≤2000mm
Flatness	≤3um
Straightness	≤3um
Roughness of runner	≤Ra0.025
Adjustment method	Push-pull rod

Product Uses

Adhesive Coating: The Differential Thread Adjustment Coater Die is extensively used in the adhesive industry for applying uniform layers of adhesive onto substrates such as paper, film, and nonwoven materials.

Ink Coating: In the printing and packaging industries, this type of coater die is used to apply ink onto various substrates, including paper, plastic, and metal foils.

Paint Coating: The automotive, aerospace, and architectural industries utilize the Differential Thread Adjustment Coater Die for applying paint onto surfaces.

Electronics Coating: In the electronics industry, this type of coater die is used to apply conductive inks, adhesives, and protective coatings onto circuit boards and electronic components.

Medical Coating: The medical industry also benefits from the Differential Thread Adjustment Coater Die, as it is used to apply coatings onto medical devices, such as catheters, stents, and wound dressings.

Please inquire us for more details of this product!
