Helical Single Stage Nema35 High Precision Low Backlash Planetary Gearbox Motor Reducer for Transmission
- Overview
- Recommended Products
SPECIFICATIONS |
STAGE |
RATIO |
RATED TORQUE (N.m) |
HXF090 Planetry Gearbox |
L1 |
3 |
104 |
4 |
112 |
||
5 |
112 |
||
7 |
100 |
||
10 |
76 |
||
L2 |
15 |
112 |
|
20 |
112 |
||
25 |
112 |
||
30 |
104 |
||
40 |
112 |
||
50 |
112 |
||
70 |
100 |
||
100 |
76 |
||
Rated Input Speed (rpm) |
3000 |
||
Max Input Speed (rpm) |
6000 |
||
Backlash |
L1 |
≤ 5Arcmin |
|
L2 |
≤ 8Arcmin |
||
Fault stop torque(N.m) |
2 times of rated torque |
||
Efficiency |
L1 |
97% |
|
L2 |
97% |
||
Average life span |
20000h |
||
Operating temperature |
-20°~+150° |
||
Nosie |
≤55 db |
||
IP |
54 |
||
Installation method |
Any installation method |
||

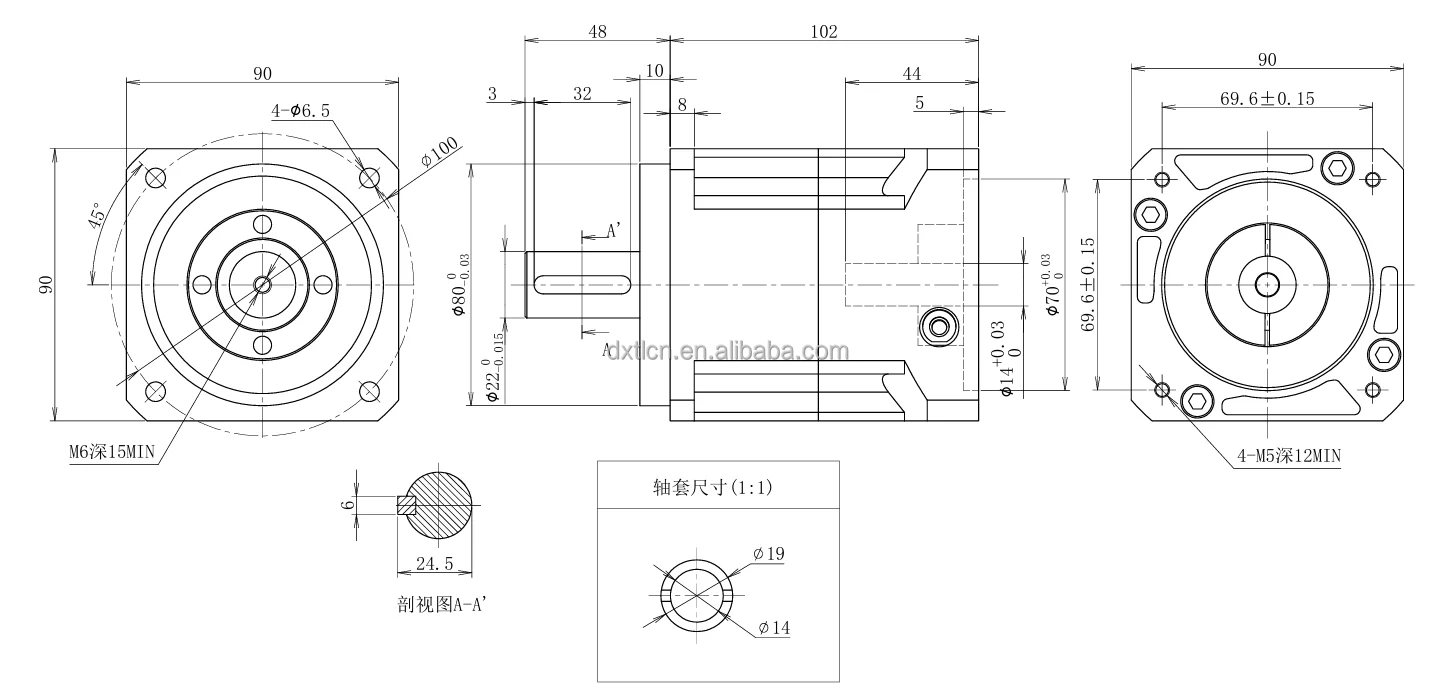

L1T1

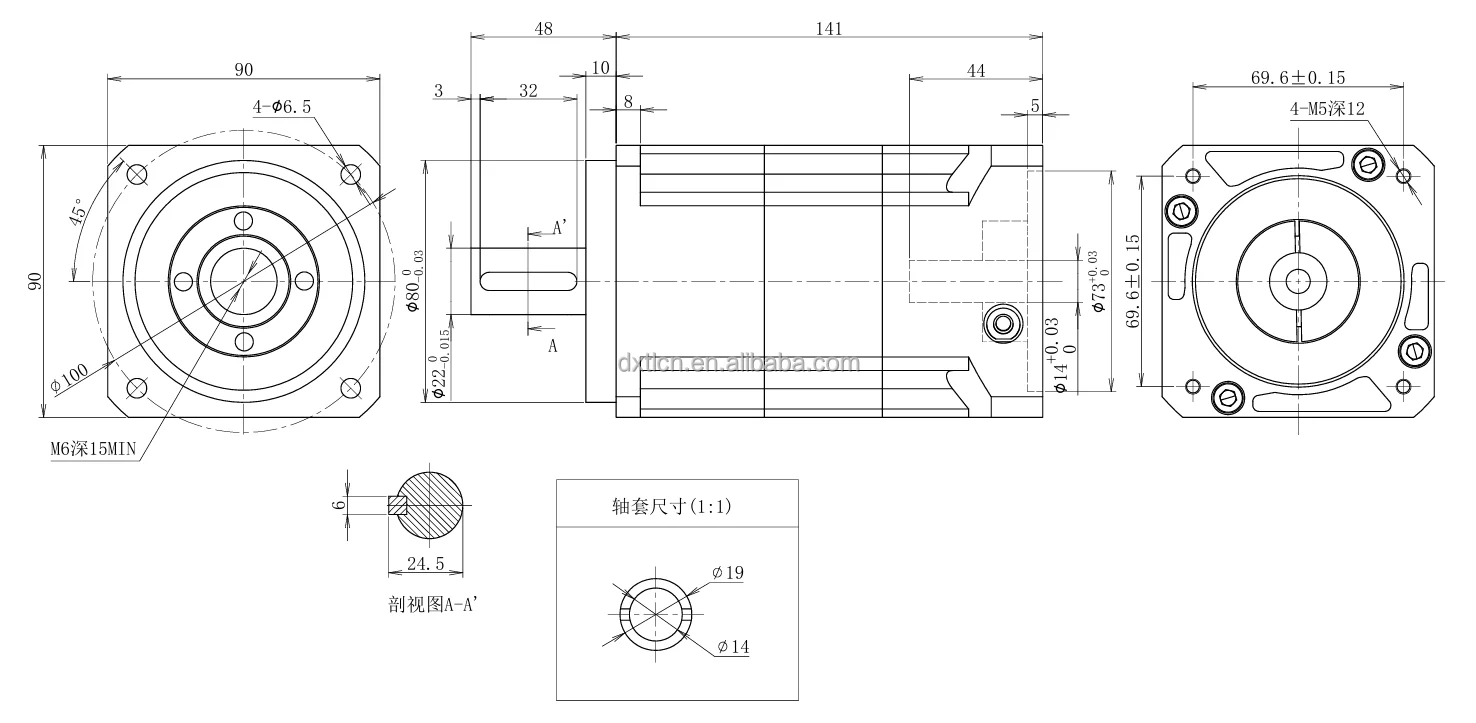

L2T1
