Low Backlash High Precision Low Noise Planetary Right Angle Gearbox with 57mm Standard Input Shaft
Low Backlash High Precision Low Noise Planetary Right Angle Gearbox with 57mm Standard Input Shaft
Low Backlash High Precision Low Noise Planetary Right Angle Gearbox with 57mm Standard Input Shaft
Low Backlash High Precision Low Noise Planetary Right Angle Gearbox with 57mm Standard Input Shaft
Low Backlash High Precision Low Noise Planetary Right Angle Gearbox with 57mm Standard Input Shaft
Low Backlash High Precision Low Noise Planetary Right Angle Gearbox with 57mm Standard Input Shaft
Low Backlash High Precision Low Noise Planetary Right Angle Gearbox with 57mm Standard Input Shaft
Low Backlash High Precision Low Noise Planetary Right Angle Gearbox with 57mm Standard Input Shaft
Low Backlash High Precision Low Noise Planetary Right Angle Gearbox with 57mm Standard Input Shaft
Low Backlash High Precision Low Noise Planetary Right Angle Gearbox with 57mm Standard Input Shaft
Low Backlash High Precision Low Noise Planetary Right Angle Gearbox with 57mm Standard Input Shaft
Low Backlash High Precision Low Noise Planetary Right Angle Gearbox with 57mm Standard Input Shaft

Low Backlash High Precision Low Noise Planetary Right Angle Gearbox with 57mm Standard Input Shaft

Inquiry
  • Overview
  • Recommended Products
Low Backlash High Precision Low Noise Planetary Right Angle Gearbox with 57mm Standard Input Shaft supplier
Low Backlash High Precision Low Noise Planetary Right Angle Gearbox with 57mm Standard Input Shaft supplier
SPECIFICATIONS
STAGE
RATIO
RATED TORQUE (N.m)
HPZS90 Planetary Gearbox
L1
4
80
5
90
7
60
10
39
L2
16
90
20
90
25
100
28
90
35
100
40
90
50
100
70
70
Rated Input Speed (rpm)
3000
Max Input Speed (rpm)
6000
Backlash
L1
≤ 10Arcmin
L2
≤ 15Arcmin
Fault stop torque(N.m)
2 times of rated torque
Efficiency
L1
96%
L2
94%
Average life span
20000h
Operating temperature
-20°~+150°
Nosie
≤55 db
IP
54
Installation method
Any installation method
Low Backlash High Precision Low Noise Planetary Right Angle Gearbox with 57mm Standard Input Shaft supplier

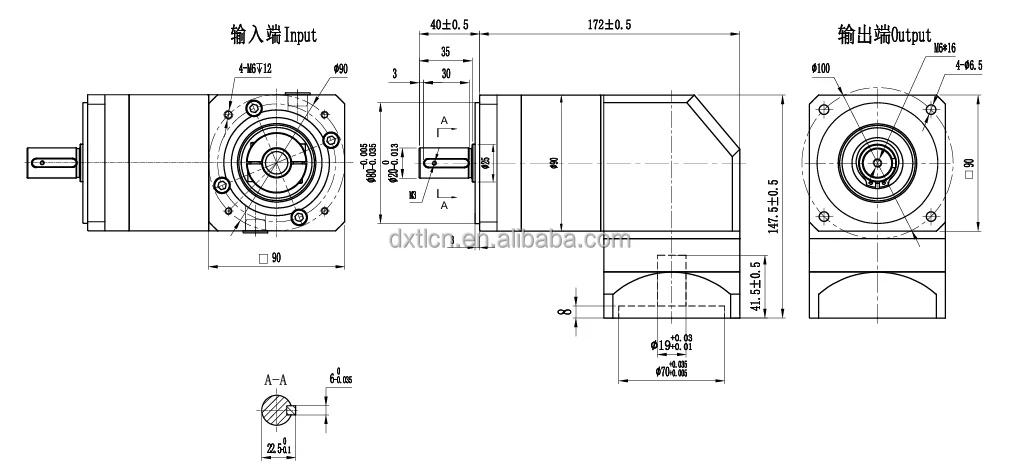

L1MA
Low Backlash High Precision Low Noise Planetary Right Angle Gearbox with 57mm Standard Input Shaft factory

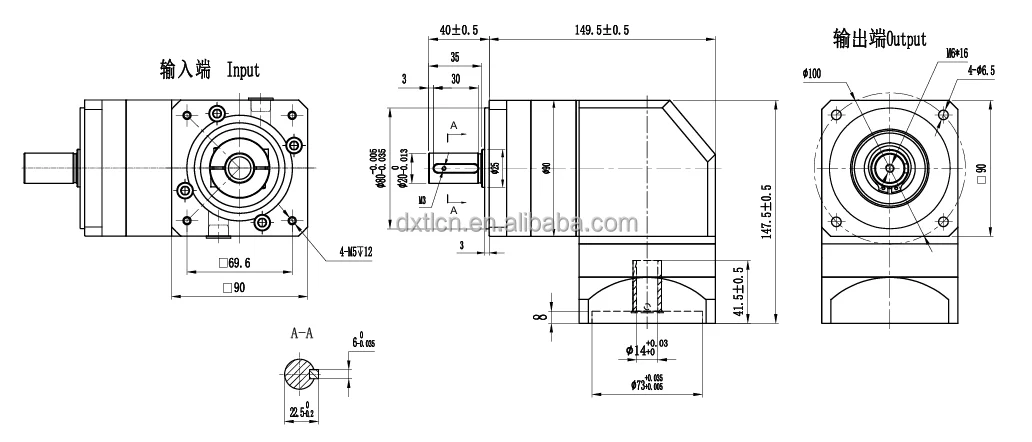

L2MA
Low Backlash High Precision Low Noise Planetary Right Angle Gearbox with 57mm Standard Input Shaft manufacture

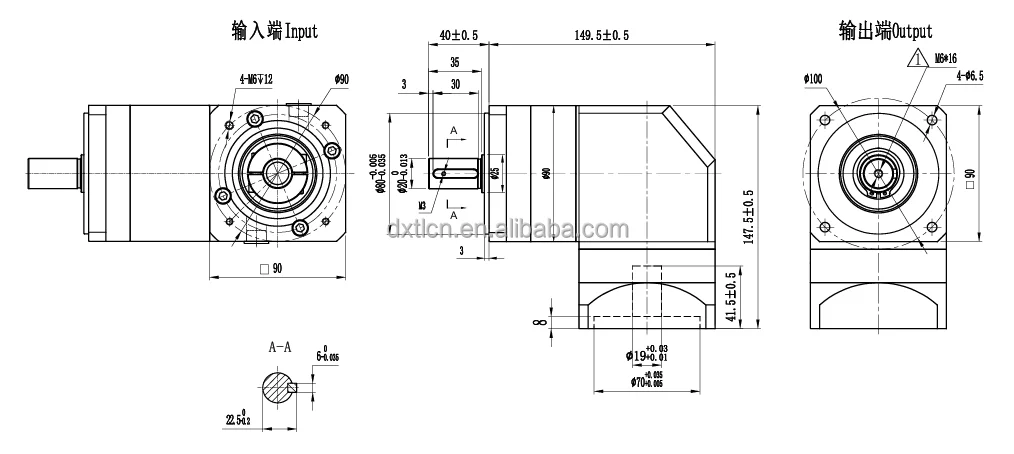

L1MB
Low Backlash High Precision Low Noise Planetary Right Angle Gearbox with 57mm Standard Input Shaft details
L2MB
Low Backlash High Precision Low Noise Planetary Right Angle Gearbox with 57mm Standard Input Shaft details
Low Backlash High Precision Low Noise Planetary Right Angle Gearbox with 57mm Standard Input Shaft supplier
Low Backlash High Precision Low Noise Planetary Right Angle Gearbox with 57mm Standard Input Shaft details
Low Backlash High Precision Low Noise Planetary Right Angle Gearbox with 57mm Standard Input Shaft supplier
Low Backlash High Precision Low Noise Planetary Right Angle Gearbox with 57mm Standard Input Shaft factory
Low Backlash High Precision Low Noise Planetary Right Angle Gearbox with 57mm Standard Input Shaft details
Low Backlash High Precision Low Noise Planetary Right Angle Gearbox with 57mm Standard Input Shaft manufacture
Low Backlash High Precision Low Noise Planetary Right Angle Gearbox with 57mm Standard Input Shaft manufacture
