High Precision Double Stage Ratio Round Flange Spur Gear Boxes Planetary Gearbox Reducer for Servo NEMA11 Stepper Motor
High Precision Double Stage Ratio Round Flange Spur Gear Boxes Planetary Gearbox Reducer for Servo NEMA11 Stepper Motor
High Precision Double Stage Ratio Round Flange Spur Gear Boxes Planetary Gearbox Reducer for Servo NEMA11 Stepper Motor
High Precision Double Stage Ratio Round Flange Spur Gear Boxes Planetary Gearbox Reducer for Servo NEMA11 Stepper Motor
High Precision Double Stage Ratio Round Flange Spur Gear Boxes Planetary Gearbox Reducer for Servo NEMA11 Stepper Motor
High Precision Double Stage Ratio Round Flange Spur Gear Boxes Planetary Gearbox Reducer for Servo NEMA11 Stepper Motor
High Precision Double Stage Ratio Round Flange Spur Gear Boxes Planetary Gearbox Reducer for Servo NEMA11 Stepper Motor
High Precision Double Stage Ratio Round Flange Spur Gear Boxes Planetary Gearbox Reducer for Servo NEMA11 Stepper Motor
High Precision Double Stage Ratio Round Flange Spur Gear Boxes Planetary Gearbox Reducer for Servo NEMA11 Stepper Motor
High Precision Double Stage Ratio Round Flange Spur Gear Boxes Planetary Gearbox Reducer for Servo NEMA11 Stepper Motor
High Precision Double Stage Ratio Round Flange Spur Gear Boxes Planetary Gearbox Reducer for Servo NEMA11 Stepper Motor
High Precision Double Stage Ratio Round Flange Spur Gear Boxes Planetary Gearbox Reducer for Servo NEMA11 Stepper Motor

High Precision Double Stage Ratio Round Flange Spur Gear Boxes Planetary Gearbox Reducer for Servo NEMA11 Stepper Motor

Inquiry
  • Overview
  • Recommended Products
High Precision Double Stage Ratio Round Flange Spur Gear Boxes Planetary Gearbox Reducer for Servo NEMA11 Stepper Motor manufacture
High Precision Double Stage Ratio Round Flange Spur Gear Boxes Planetary Gearbox Reducer for Servo NEMA11 Stepper Motor factory
SPECIFICATIONS
HPR28 Planetary Gearbox
Stage Level
Single
Double
Third
Ratio
4 5 7 10
16 20 25 28 35 40 50 70
64 80 100 125 140 175 200
Rated Torque (N.m)
2 1
4 3
6
Adapted motor
Rated Input Speed (rpm)
1000/min
Max Input Speed (rpm)
2000/min
Backlash
L1≤15 Arcmin
L2≤20 Arcmin
L3≤25 Arcmin
Fault stop torque(N.m)
2 times of rated torque
Efficiency
L1 96%
L2 94%
L3 90%
Average life span
20000/h
Operating temperature
-20°～+150°
Nosie
≤55 db
IP
54
Installation method
Any installation method
High Precision Double Stage Ratio Round Flange Spur Gear Boxes Planetary Gearbox Reducer for Servo NEMA11 Stepper Motor factory

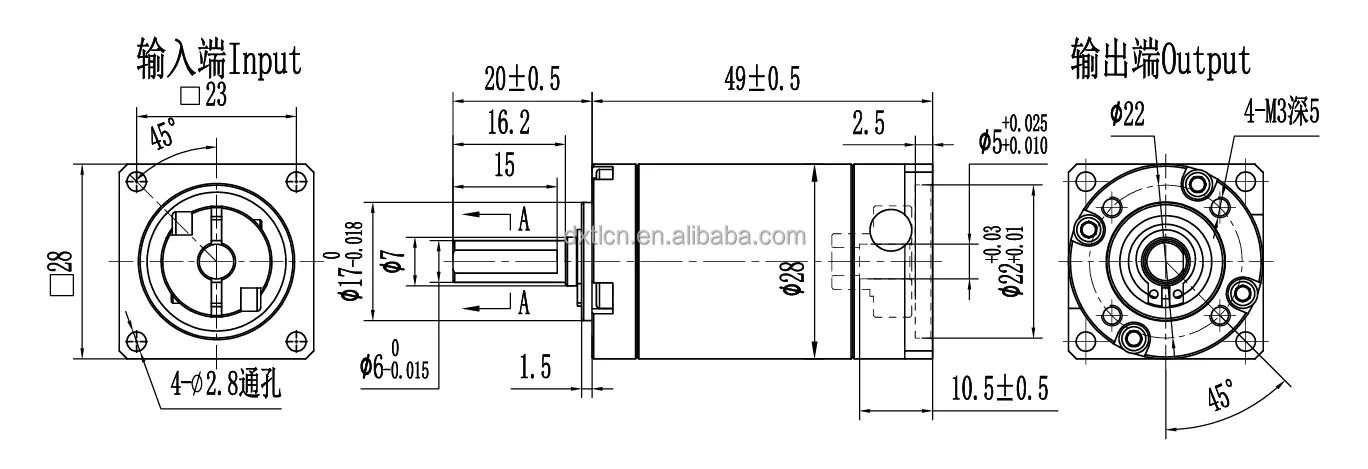

L1
High Precision Double Stage Ratio Round Flange Spur Gear Boxes Planetary Gearbox Reducer for Servo NEMA11 Stepper Motor manufacture

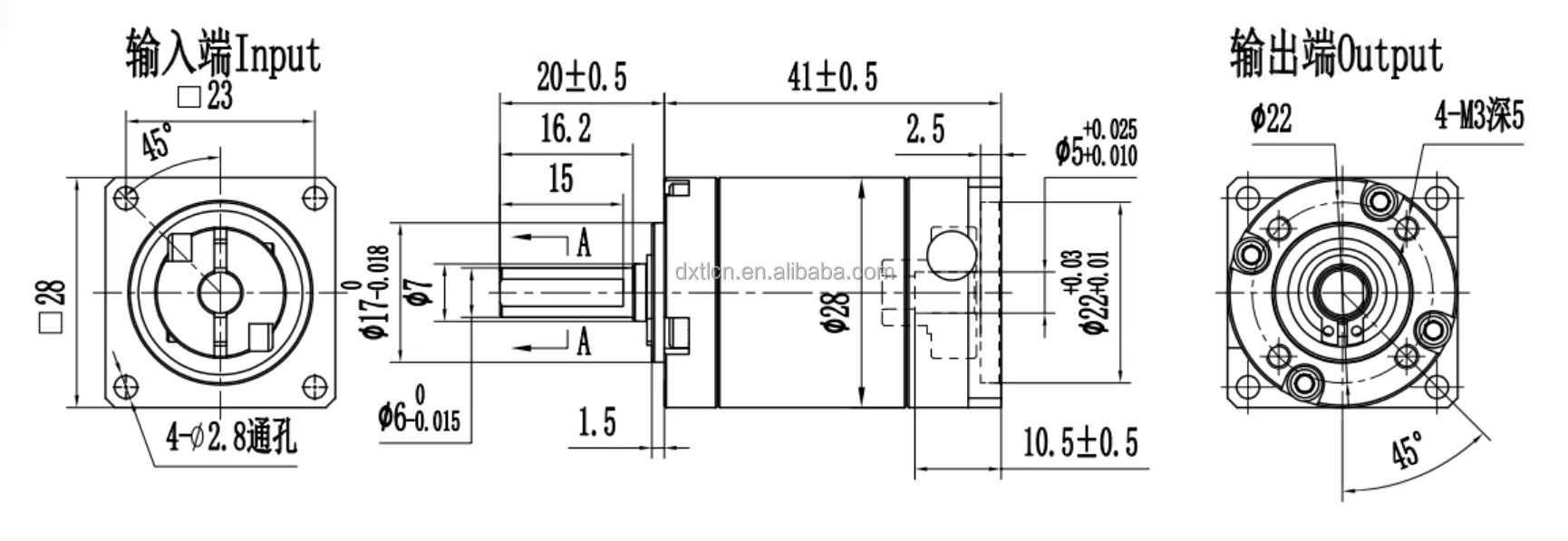

L2
High Precision Double Stage Ratio Round Flange Spur Gear Boxes Planetary Gearbox Reducer for Servo NEMA11 Stepper Motor details

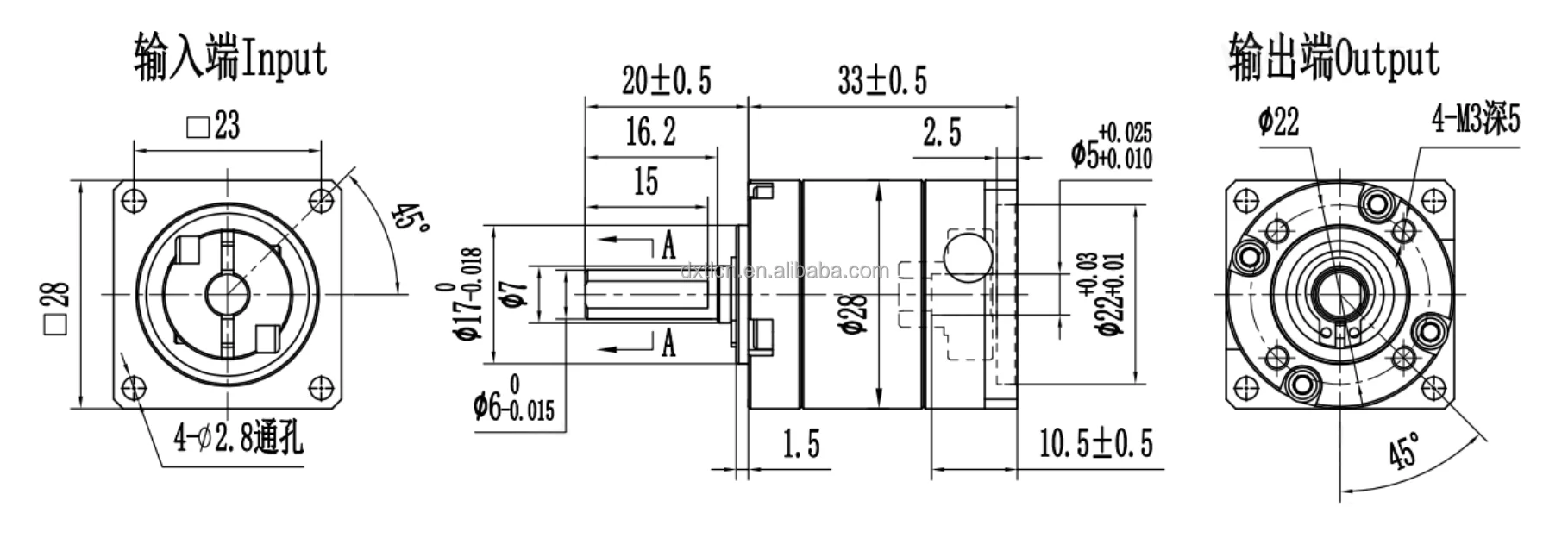

L3
High Precision Double Stage Ratio Round Flange Spur Gear Boxes Planetary Gearbox Reducer for Servo NEMA11 Stepper Motor details
High Precision Double Stage Ratio Round Flange Spur Gear Boxes Planetary Gearbox Reducer for Servo NEMA11 Stepper Motor supplier
High Precision Double Stage Ratio Round Flange Spur Gear Boxes Planetary Gearbox Reducer for Servo NEMA11 Stepper Motor supplier
High Precision Double Stage Ratio Round Flange Spur Gear Boxes Planetary Gearbox Reducer for Servo NEMA11 Stepper Motor supplier
High Precision Double Stage Ratio Round Flange Spur Gear Boxes Planetary Gearbox Reducer for Servo NEMA11 Stepper Motor factory
High Precision Double Stage Ratio Round Flange Spur Gear Boxes Planetary Gearbox Reducer for Servo NEMA11 Stepper Motor details
High Precision Double Stage Ratio Round Flange Spur Gear Boxes Planetary Gearbox Reducer for Servo NEMA11 Stepper Motor supplier
High Precision Double Stage Ratio Round Flange Spur Gear Boxes Planetary Gearbox Reducer for Servo NEMA11 Stepper Motor factory
High Precision Double Stage Ratio Round Flange Spur Gear Boxes Planetary Gearbox Reducer for Servo NEMA11 Stepper Motor manufacture
High Precision Double Stage Ratio Round Flange Spur Gear Boxes Planetary Gearbox Reducer for Servo NEMA11 Stepper Motor manufacture
High Precision Double Stage Ratio Round Flange Spur Gear Boxes Planetary Gearbox Reducer for Servo NEMA11 Stepper Motor factory
High Precision Double Stage Ratio Round Flange Spur Gear Boxes Planetary Gearbox Reducer for Servo NEMA11 Stepper Motor supplier
High Precision Double Stage Ratio Round Flange Spur Gear Boxes Planetary Gearbox Reducer for Servo NEMA11 Stepper Motor manufacture
High Precision Double Stage Ratio Round Flange Spur Gear Boxes Planetary Gearbox Reducer for Servo NEMA11 Stepper Motor manufacture
