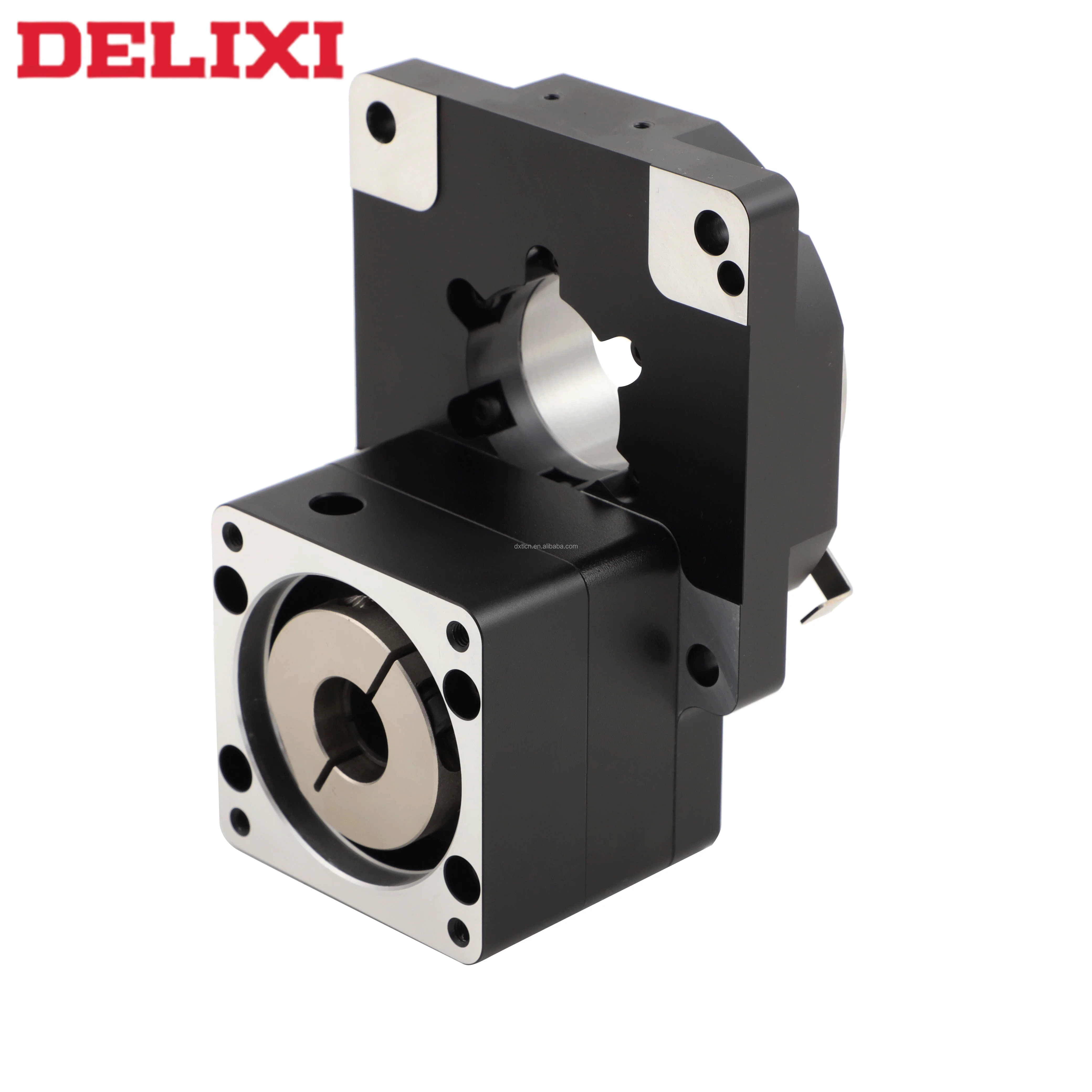

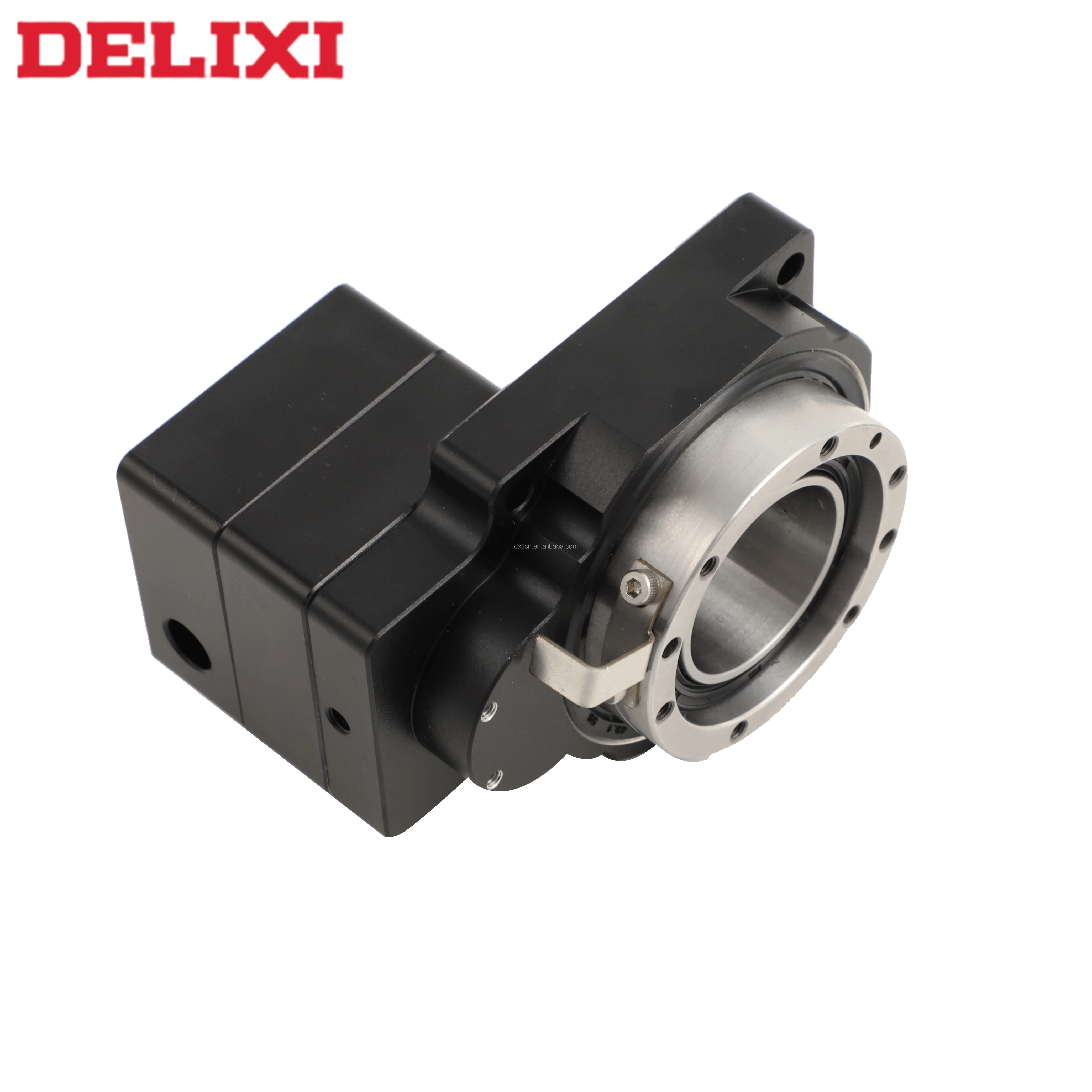

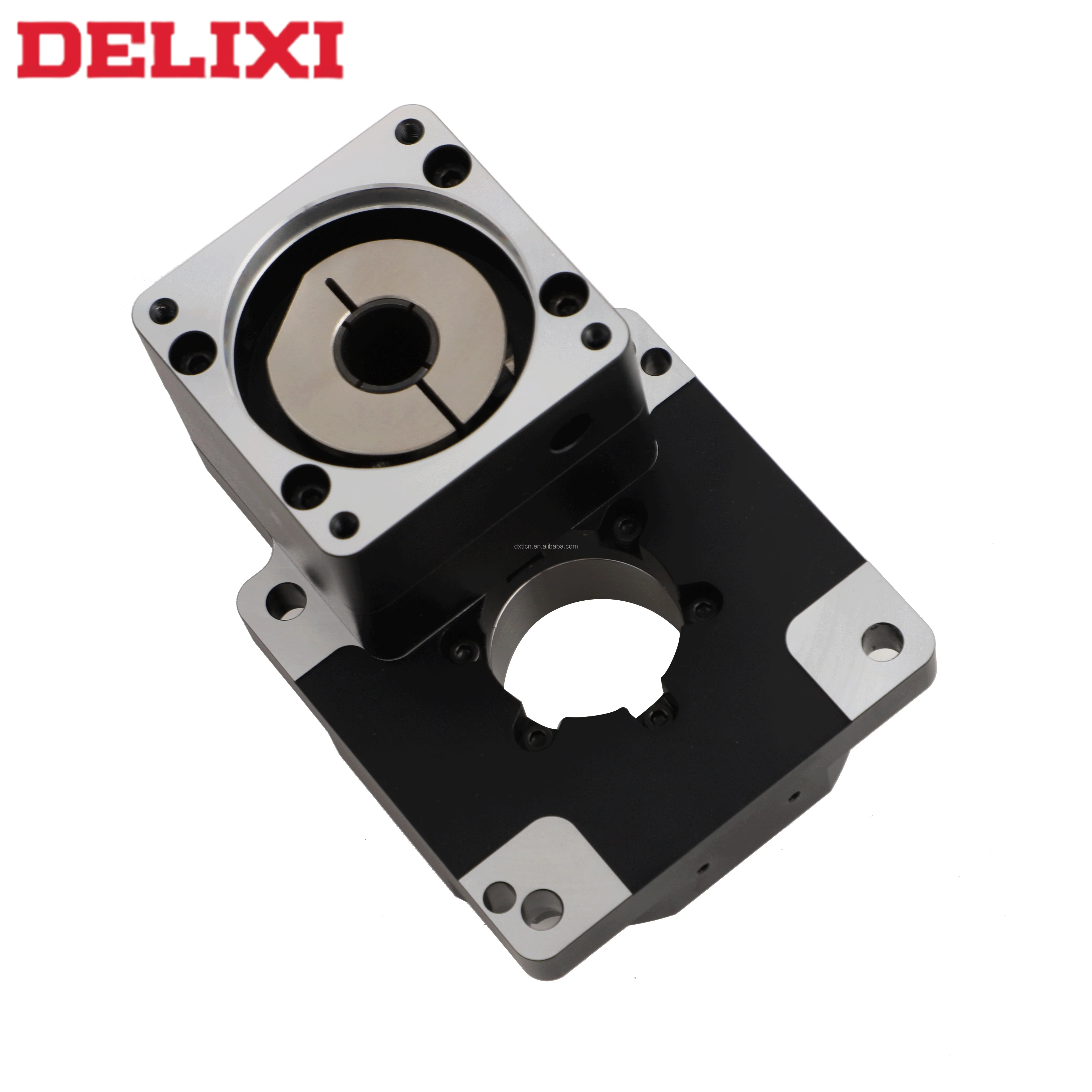

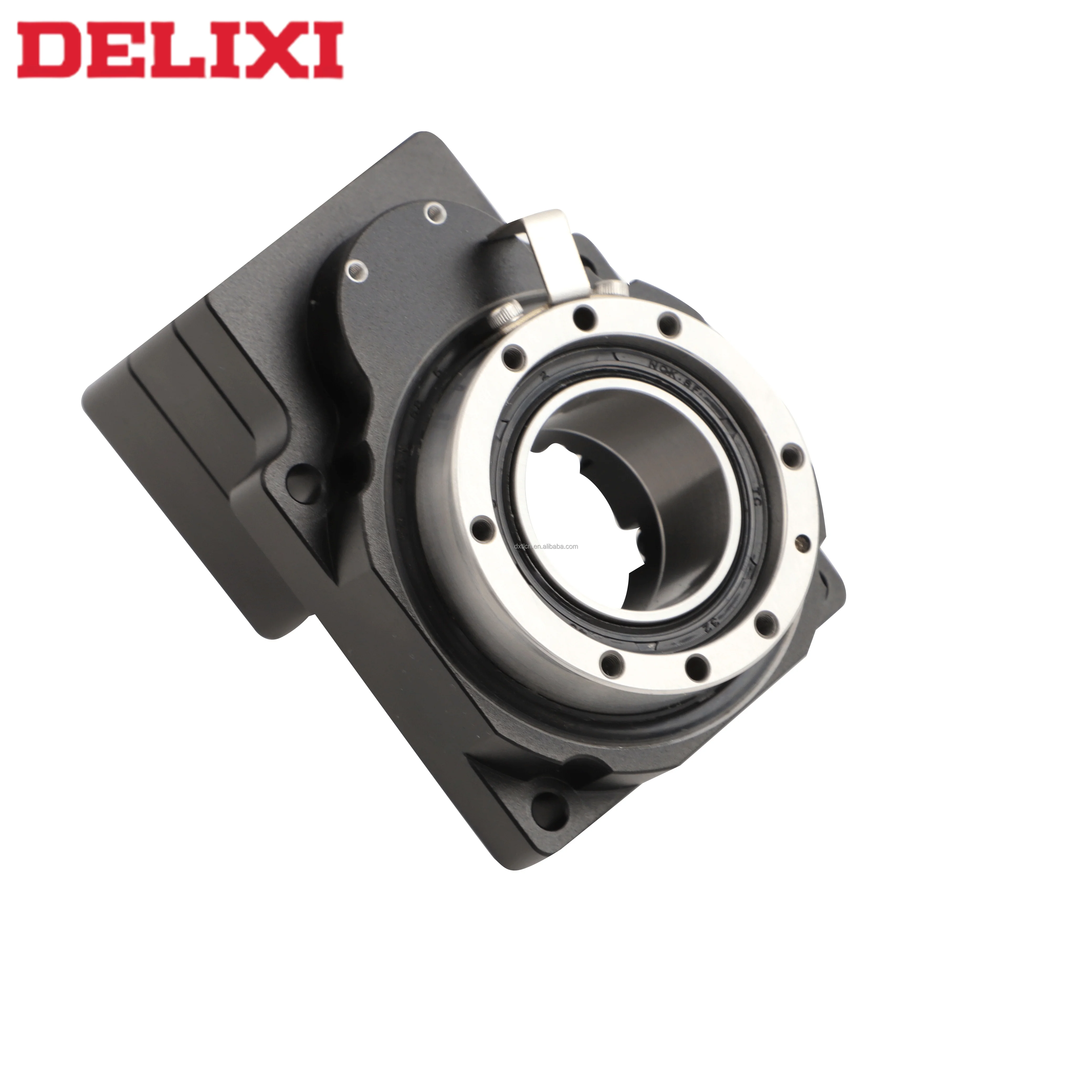

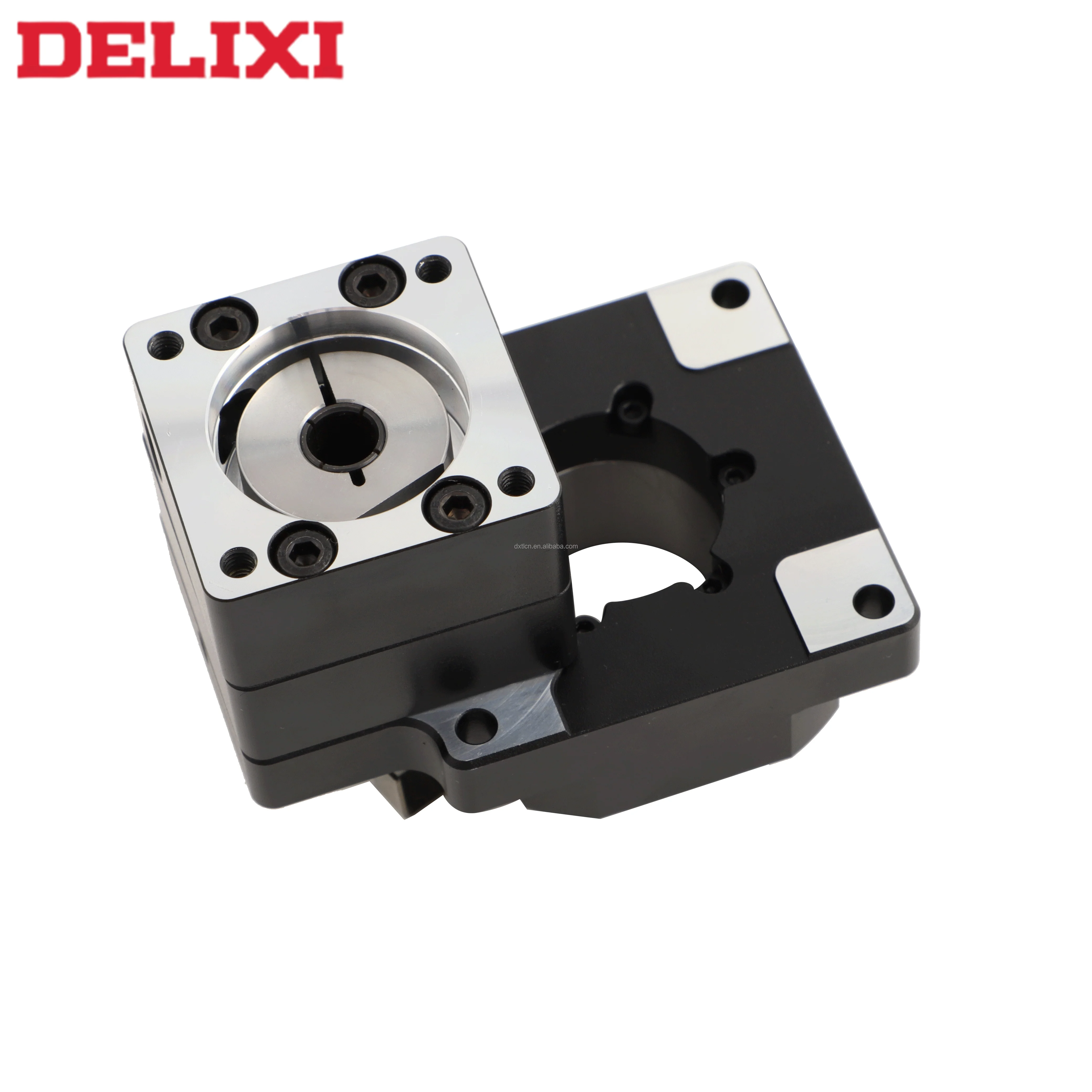

Customizable ODM CNC Hollow Rotating Platform Speed Reducers Planetary for Robot Machinery Construction Servo Motor
- Overview
- Recommended Products
SPECIFICATIONS |
HRP60K Hollow Rotate Plateform |
||
Ratio |
5 10 18 |
||
Rated Torque (N.m) |
5 |
||
Positioning Accuracy |
3 arcmin |
||
Repeatable Positioning |
±14 arcsec |
||
Max Radial Load |
5N |
||
Max Axial Load |
10KG |
||
Parallelism |
≤0.015mm |
||
Coaxiality |
≤0.015mm |
||
Precision Life |
15000/h (intermittent operation) |
||
Operating Temperature |
-15°～+90° |
||
Nosie |
≤65 db |
||
Transmission Efficiency |
≥97% |
||
Lubrication Method |
Permanent Lubrication |
||
