Planetary Gearbox&Motor

Home >  Products >  Precision Automation >  Planetary Gearbox&Motor

Home > Planetary Gearbox&Motor

ALL PRODUCTS

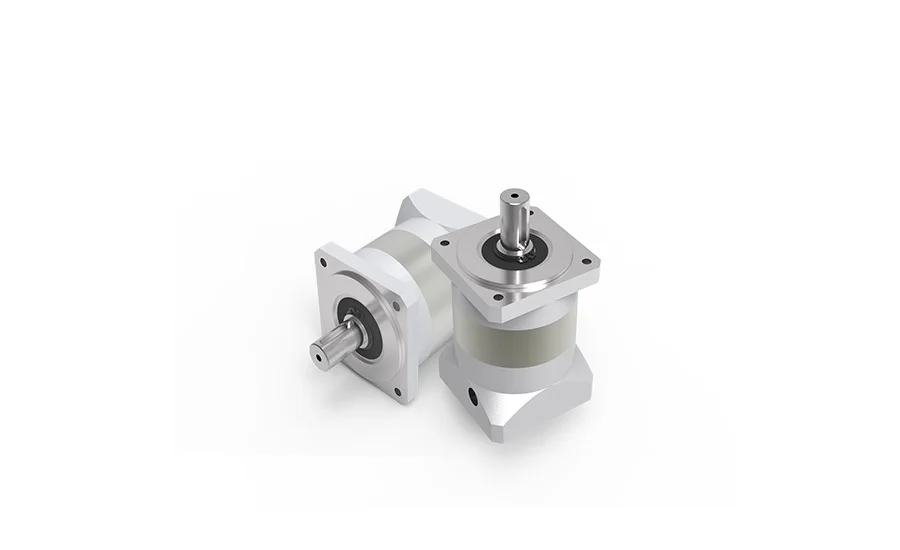

DXTL High Torque Precision 90 Series Planetary Gearbox Reducer Gearboxes Use for Servo Motor Automatic Industry Equipment
DXTL High Torque Precision 90 Series Planetary Gearbox Reducer Gearboxes Use for Servo Motor Automatic Industry Equipment
DXTL High Torque Precision 90 Series Planetary Gearbox Reducer Gearboxes Use for Servo Motor Automatic Industry Equipment
DXTL High Torque Precision 90 Series Planetary Gearbox Reducer Gearboxes Use for Servo Motor Automatic Industry Equipment
DXTL High Torque Precision 90 Series Planetary Gearbox Reducer Gearboxes Use for Servo Motor Automatic Industry Equipment
DXTL High Torque Precision 90 Series Planetary Gearbox Reducer Gearboxes Use for Servo Motor Automatic Industry Equipment
DXTL High Torque Precision 90 Series Planetary Gearbox Reducer Gearboxes Use for Servo Motor Automatic Industry Equipment
DXTL High Torque Precision 90 Series Planetary Gearbox Reducer Gearboxes Use for Servo Motor Automatic Industry Equipment
DXTL High Torque Precision 90 Series Planetary Gearbox Reducer Gearboxes Use for Servo Motor Automatic Industry Equipment
DXTL High Torque Precision 90 Series Planetary Gearbox Reducer Gearboxes Use for Servo Motor Automatic Industry Equipment
DXTL High Torque Precision 90 Series Planetary Gearbox Reducer Gearboxes Use for Servo Motor Automatic Industry Equipment
DXTL High Torque Precision 90 Series Planetary Gearbox Reducer Gearboxes Use for Servo Motor Automatic Industry Equipment

DXTL High Torque Precision 90 Series Planetary Gearbox Reducer Gearboxes Use for Servo Motor Automatic Industry Equipment

Inquiry
  • Overview
  • Recommended Products
DXTL High Torque Precision 90 Series Planetary Gearbox Reducer Gearboxes Use for Servo Motor Automatic Industry Equipment manufacture
DXTL High Torque Precision 90 Series Planetary Gearbox Reducer Gearboxes Use for Servo Motor Automatic Industry Equipment supplier
SPECIFICATIONS
STAGE
RATIO
RATED TORQUE (N.m)
HPS90 Planetary Gearbox
L1
4
80
5
90
7
60
10
39
L2
16
90
20
90
25
100
28
90
30
100
35
100
40
90
50
100
70
70
Rated Input Speed (rpm)
3000
Max Input Speed (rpm)
6000
Backlash
L1
≤ 10Arcmin
L2
≤ 15Arcmin
Fault stop torque(N.m)
2 times of rated torque
Efficiency
L1
96%
L2
94%
Average life span
20000h
Operating temperature
-20°~+150°
Nosie
≤55 db
IP
54
Installation method
Any installation method
DXTL High Torque Precision 90 Series Planetary Gearbox Reducer Gearboxes Use for Servo Motor Automatic Industry Equipment supplier

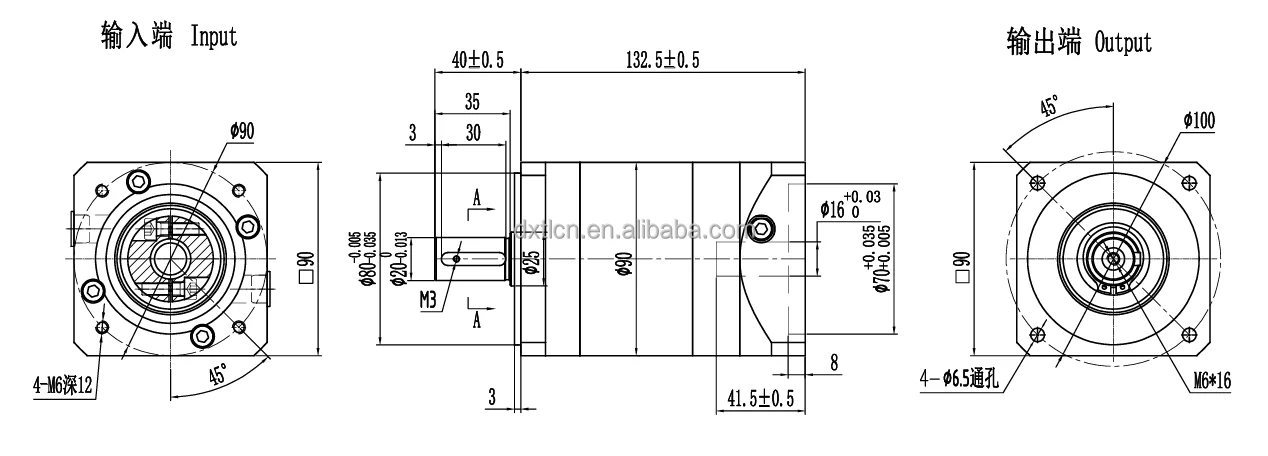

L1MA
DXTL High Torque Precision 90 Series Planetary Gearbox Reducer Gearboxes Use for Servo Motor Automatic Industry Equipment manufacture

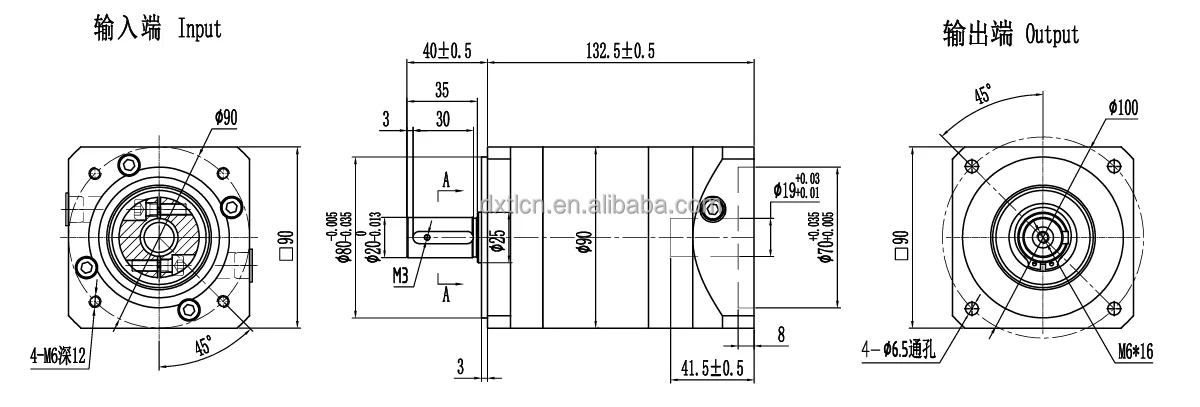

L1MA-R16
DXTL High Torque Precision 90 Series Planetary Gearbox Reducer Gearboxes Use for Servo Motor Automatic Industry Equipment details

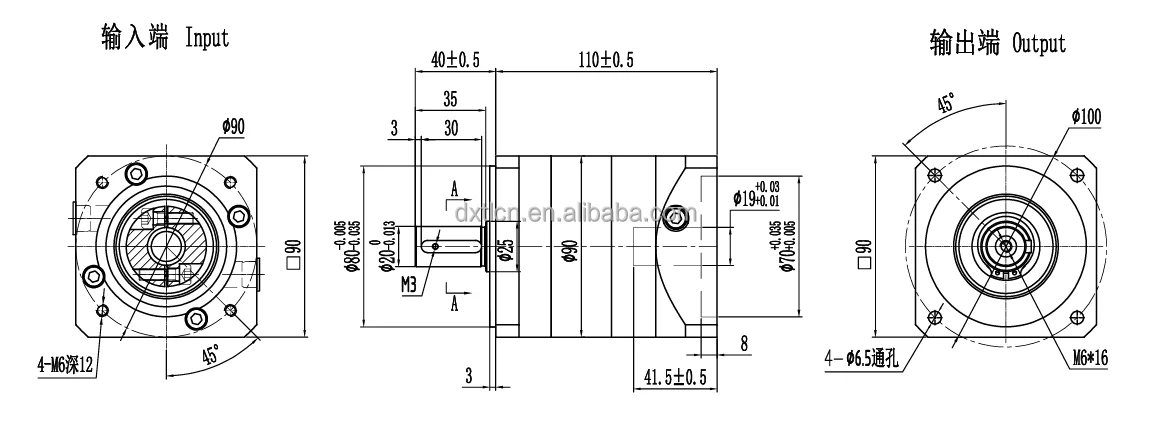

L2MA
DXTL High Torque Precision 90 Series Planetary Gearbox Reducer Gearboxes Use for Servo Motor Automatic Industry Equipment details

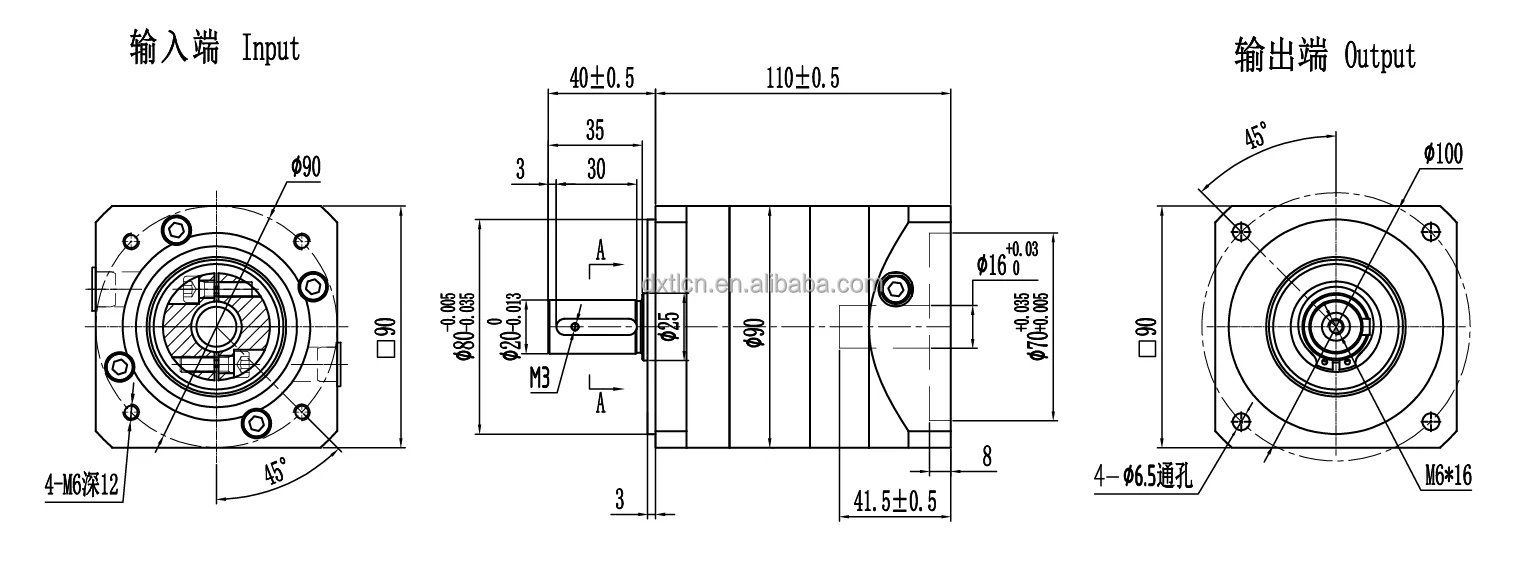

L2MA-R16
