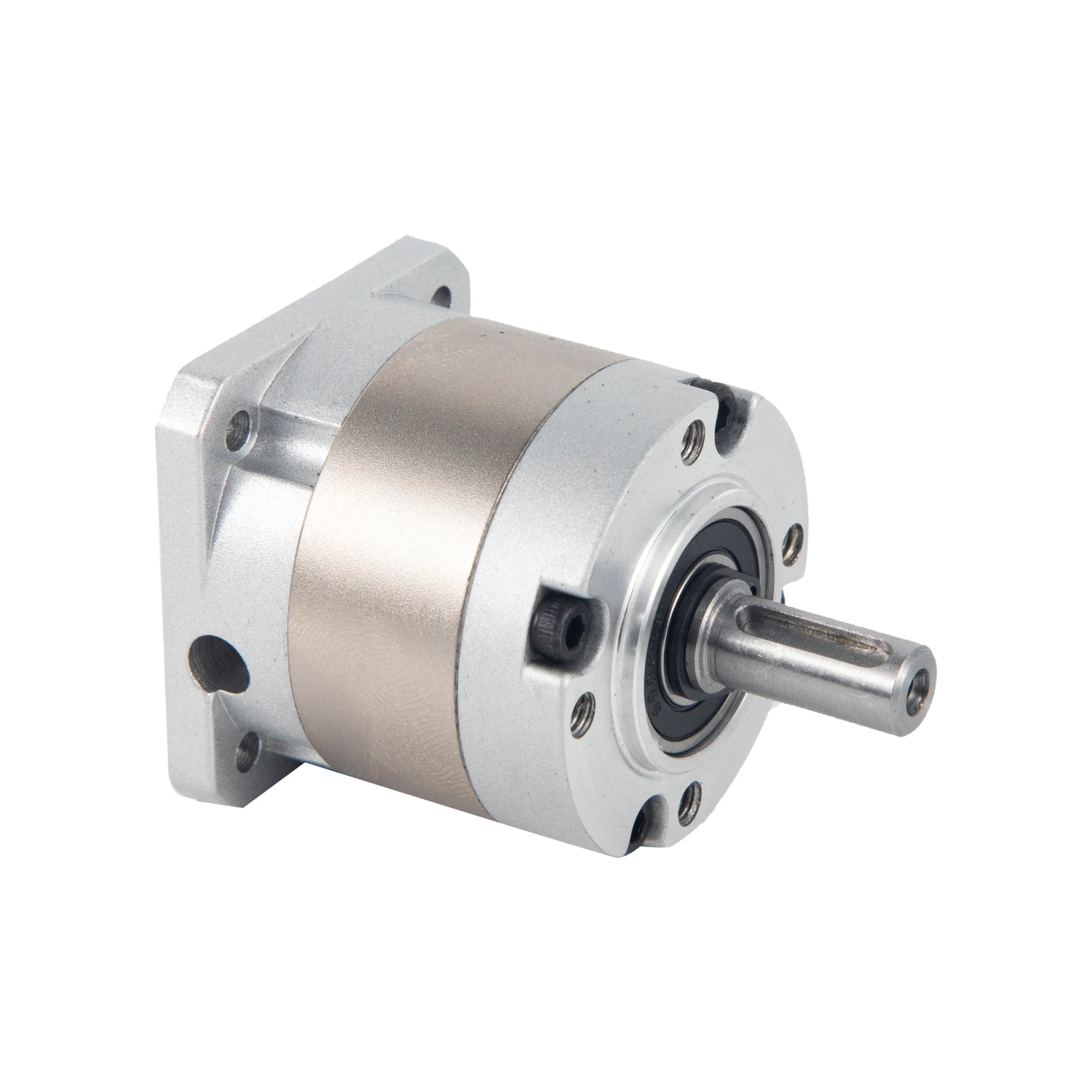

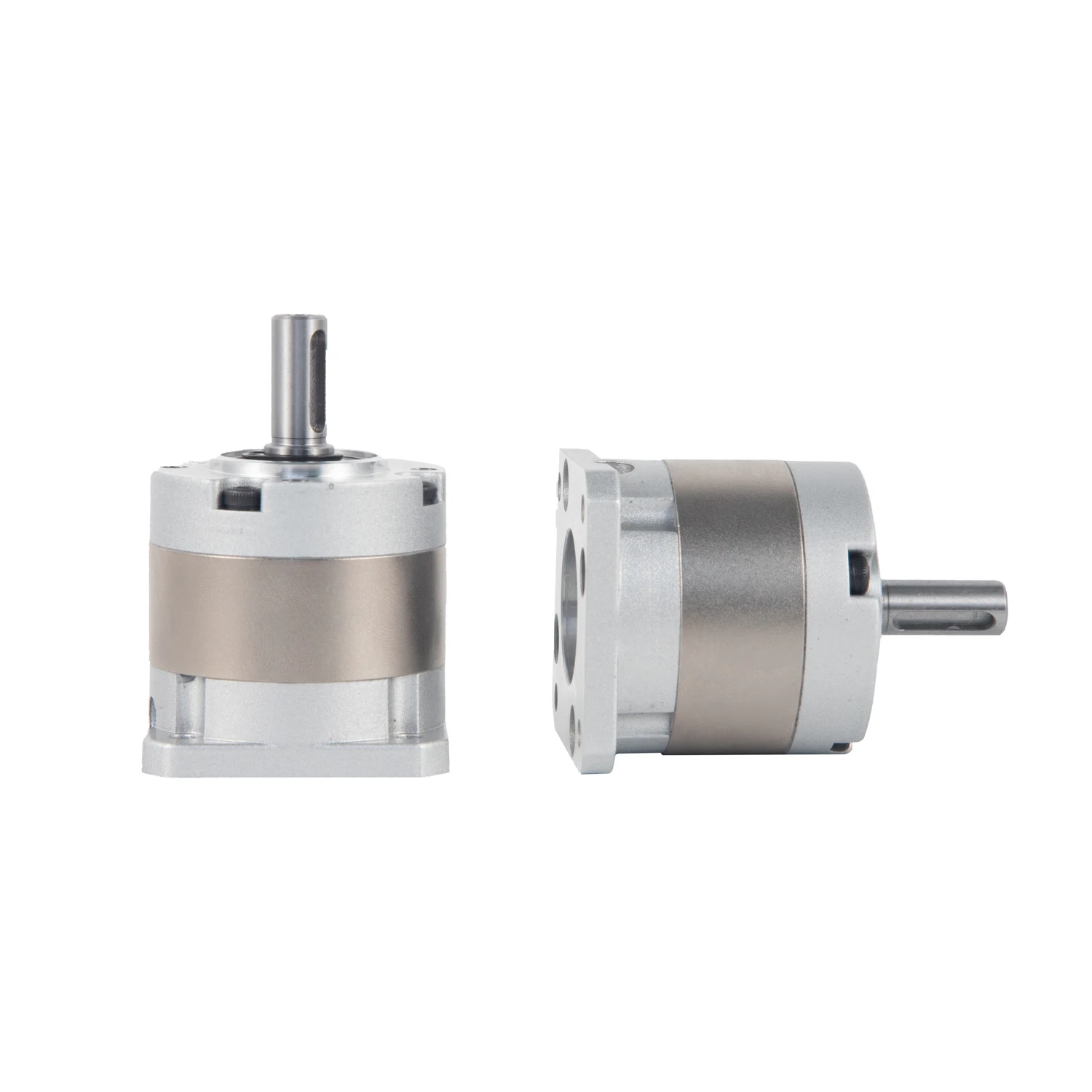

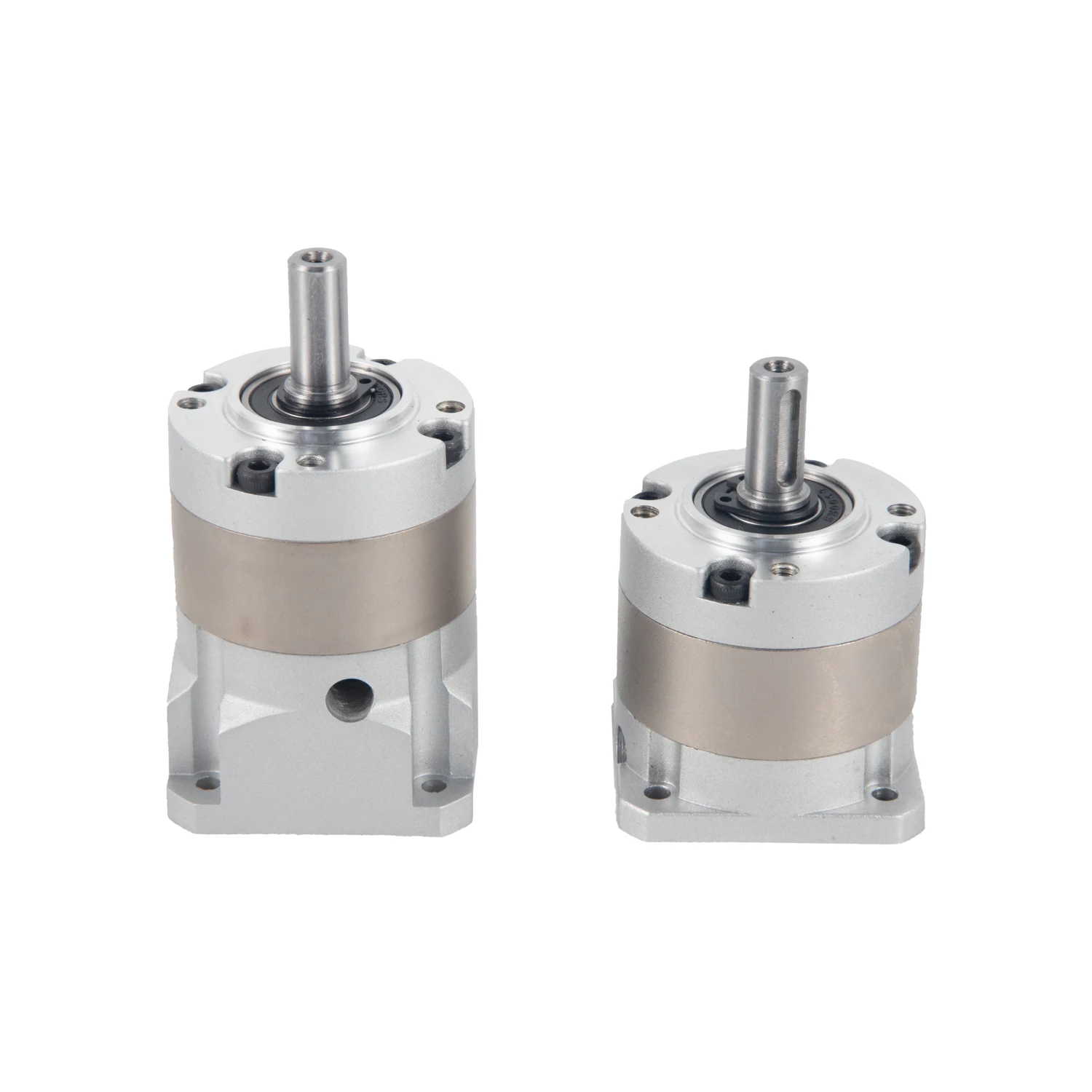

DPS42 Series Gearbox Planetary Reducer for Servo Motors Custom Precision Low Noise Harden Steel Planetary Gearbox 42mm
- Overview
- Recommended Products
SPECIFICATIONS |
STAGE |
RATIO |
RATED TORQUE (N.m) |
HPS42 Planetary Gearbox |
L1 |
3 |
8 |
4 |
9 |
||
5 |
9 |
||
7 |
5 |
||
10 |
5 |
||
L2 |
16 |
10 |
|
20 |
12 |
||
25 |
12 |
||
28 |
10 |
||
30 |
10 |
||
35 |
10 |
||
40 |
10 |
||
50 |
10 |
||
70 |
10 |
||
100 |
5 |
||
Rated Input Speed (rpm) |
1000 |
||
Max Input Speed (rpm) |
2000 |
||
Backlash |
L1 |
≤ 15Arcmin |
|
L2 |
≤ 20Arcmin |
||
Fault stop torque(N.m) |
2 times of rated torque |
||
Efficiency |
L1 |
96% |
|
L2 |
94% |
||
Average life span |
20000h |
||
Operating temperature |
-10°~+150° |
||
Nosie |
≤55 db |
||
IP |
54 |
||
Installation method |
Any installation method |
||

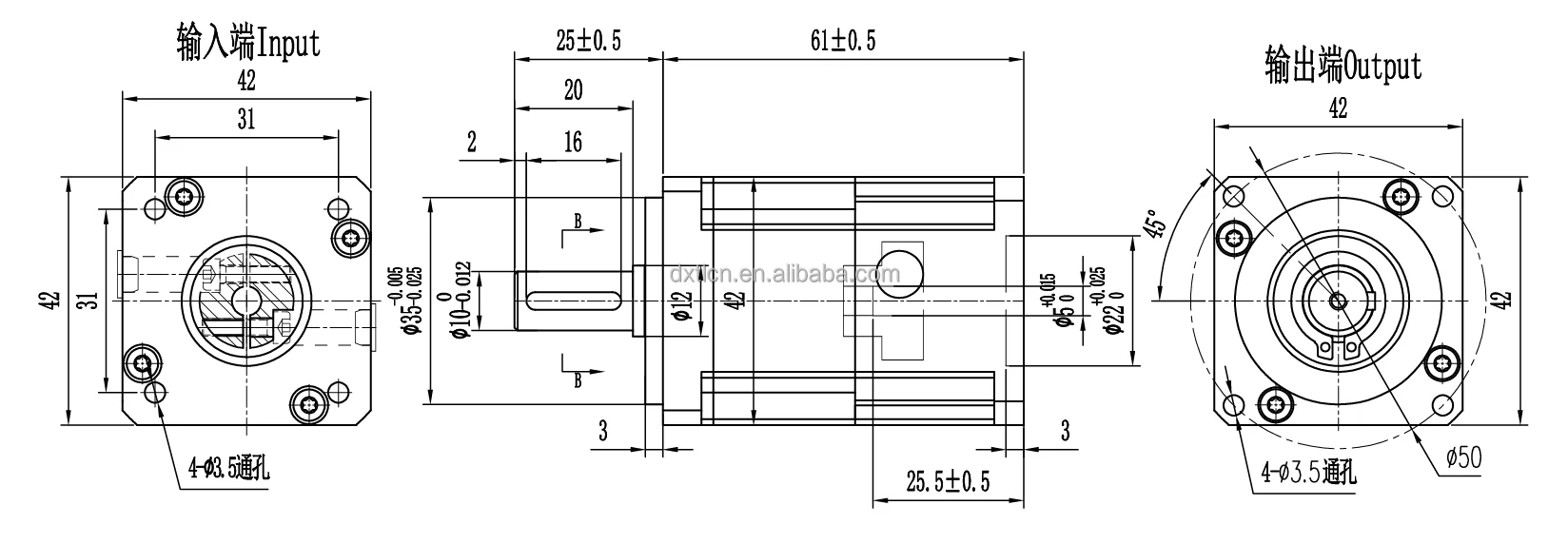

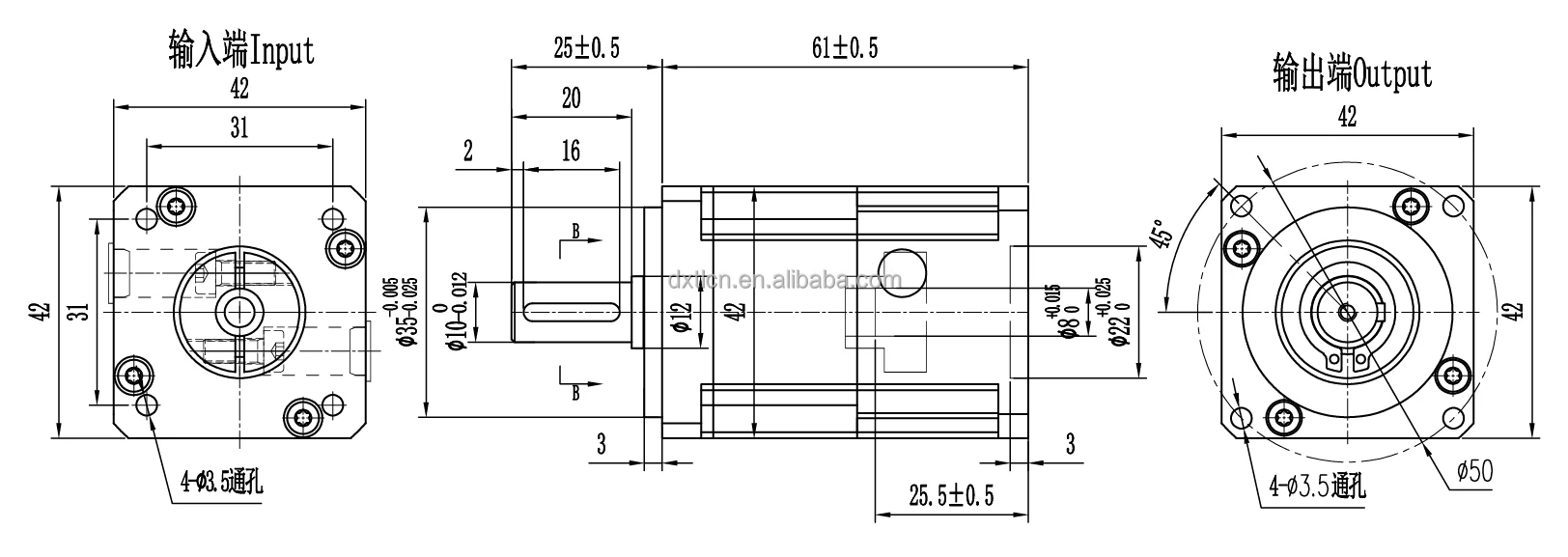

L1SW
L1SW-R8
L2SW
L2SW-R8
