28mm High Precision Spur Gear Planetary Gearbox Round Mounted Flange with Single/Double/Third Stage

28mm High Precision Spur Gear Planetary Gearbox Round Mounted Flange with Single/Double/Third Stage

Planetary gearbox is a versatile industrial product that reduces the speed of the motor while increasing the output torque. Planetary gearboxes can be used as supporting components in lifting, excavation, transportation, construction and other industries.

Model:
HPR28-L1/L2/L3

Ratio:	4-200
Norminal output torque:	1-6N.m
Input speed:	1000-2000rpm
Backlash:	≤15/20/25arcmin
Efficiency:	90-96%
Weight:	0.1kg
Availability:

Quantity:



Inquire Add to Basket

Product Description

Product Introduction

Planetary gearbox is a versatile industrial product that reduces the speed of the motor while increasing the output torque. Planetary gearboxes can be used as supporting components in lifting, excavation, transportation, construction and other industries.

Why Choose Our Products?

1.Round flange shaft output, threaded reverse connection, standardized dimensions
2.Input connections are available in a wide range of sizes and options
3.Steel teeth straight gear transmission, single cantilever structure, simple design, cost-effective
4.Smooth running and low noise

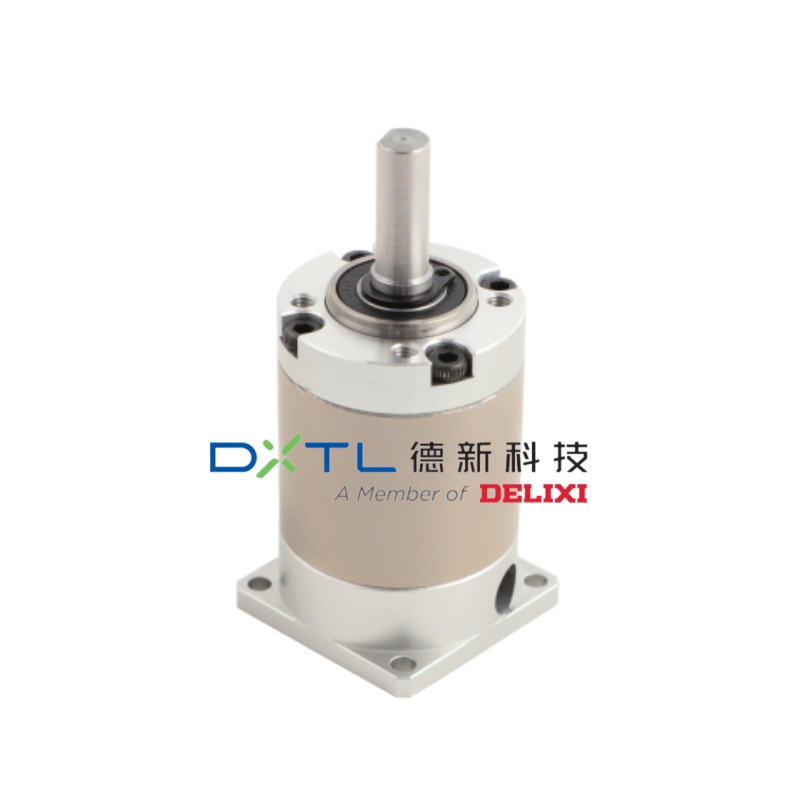

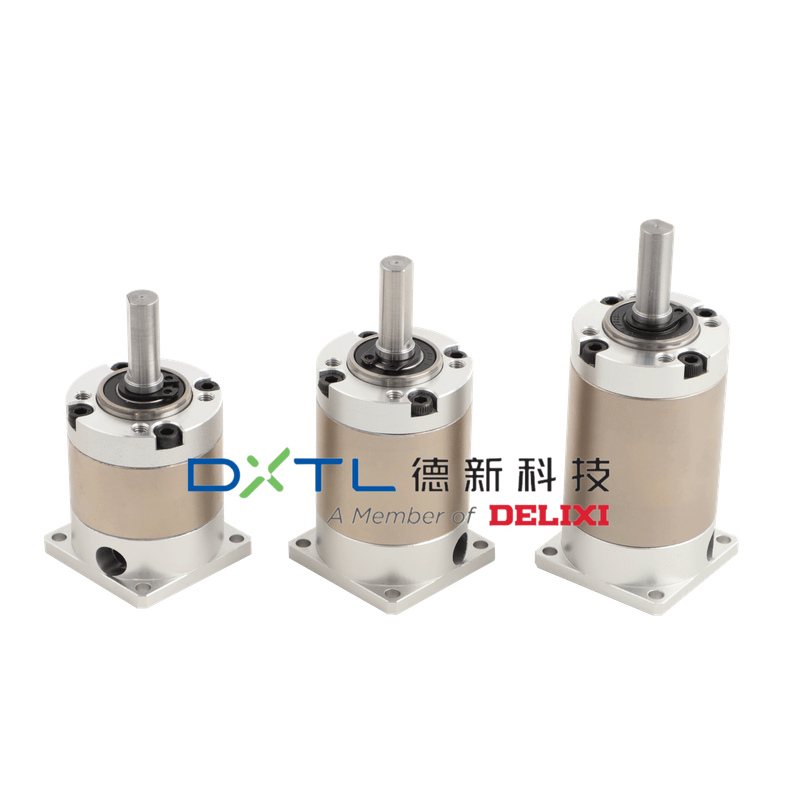

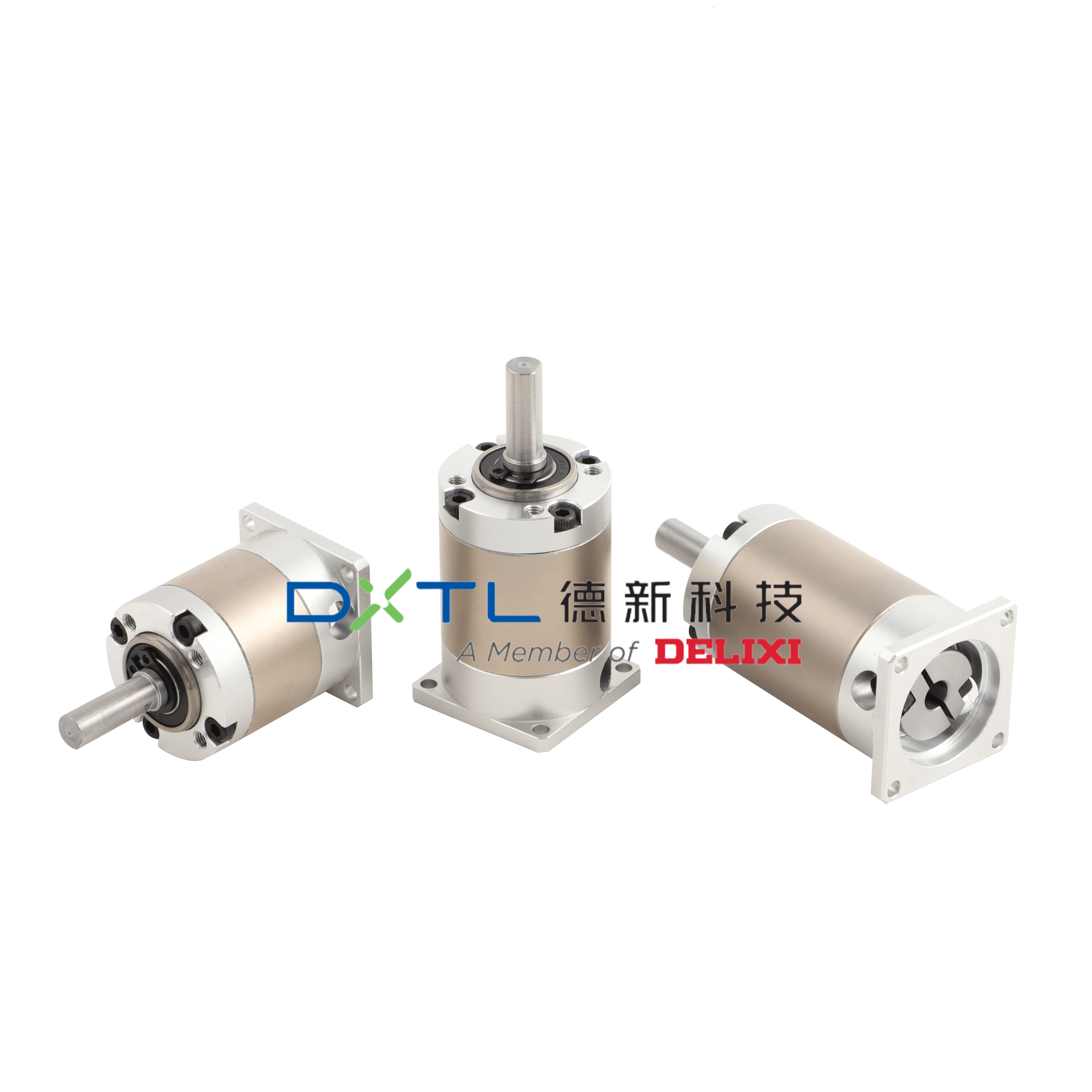

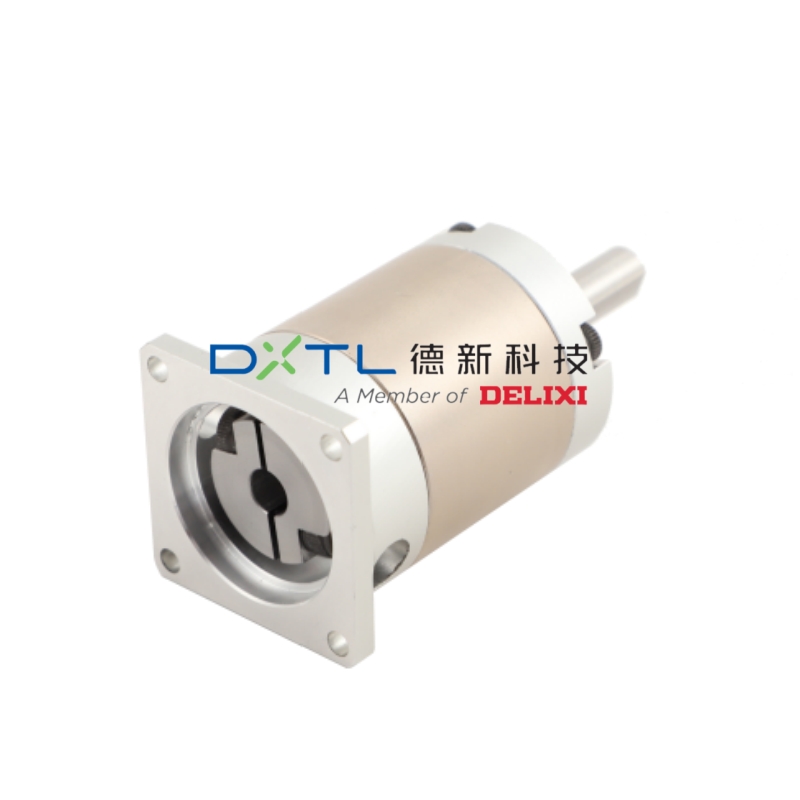

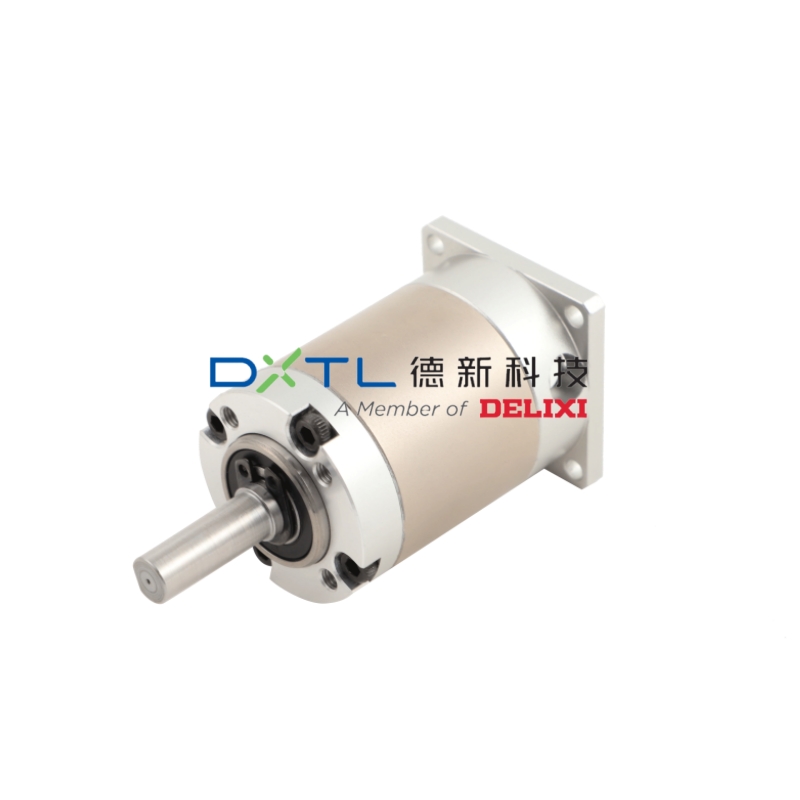

IMG_0165_副本 IMG_0166_副本 L2-1 L2-3

Technical Parameters

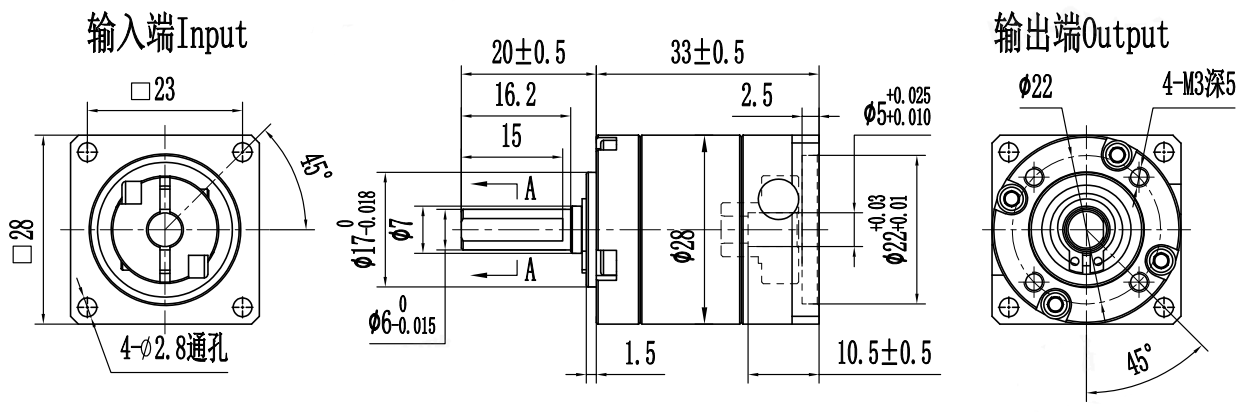

HPR28-L1

HPR28-L1

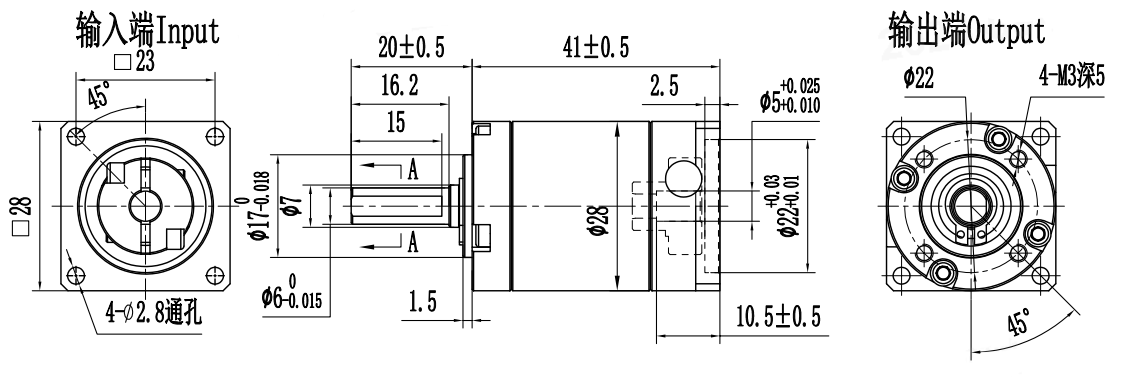

HPR28-L2

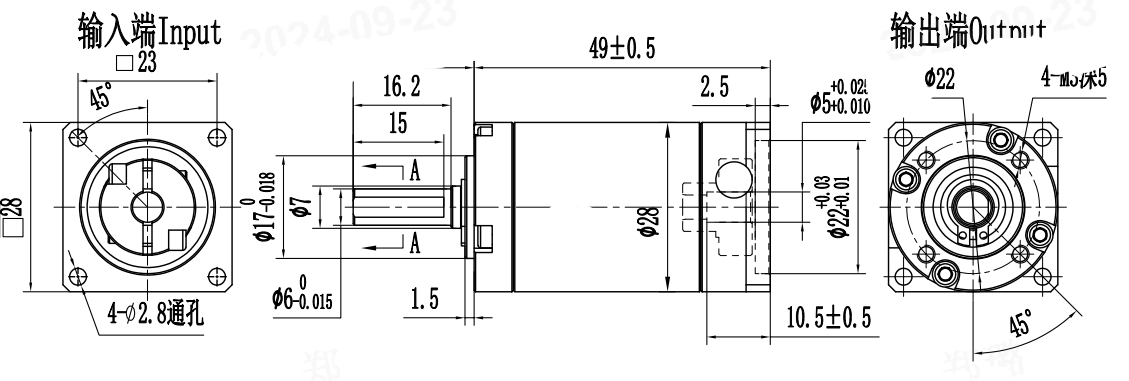

HPR28-L3

HPR28-L3

Product Uses

Industrial automation field / CNC machine tool industry / new energy field / medical equipment industry / packaging and printing industry / electronic manufacturing field / automobile manufacturing industry / logistics and warehousing field

Please inquire us for more details of this product!
