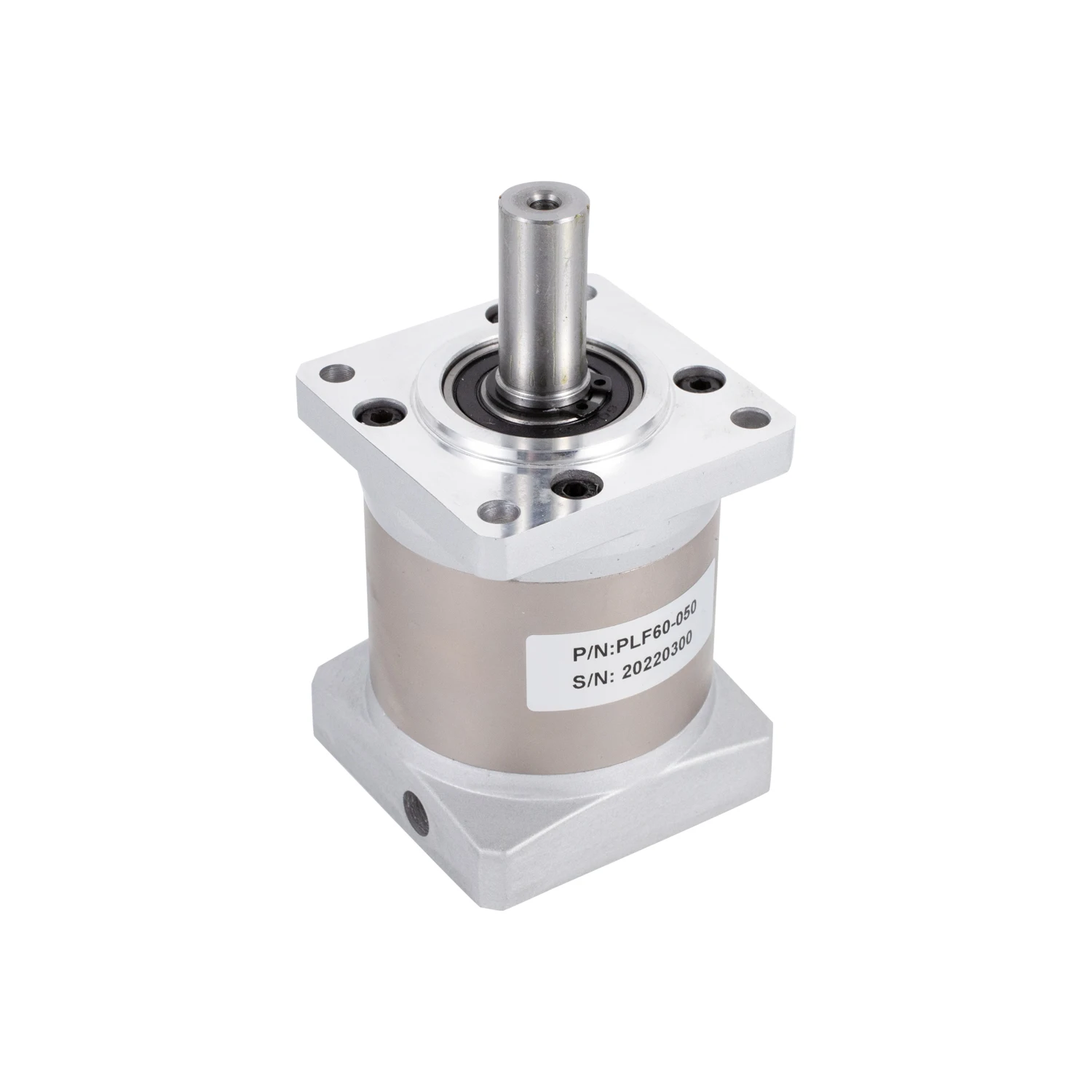

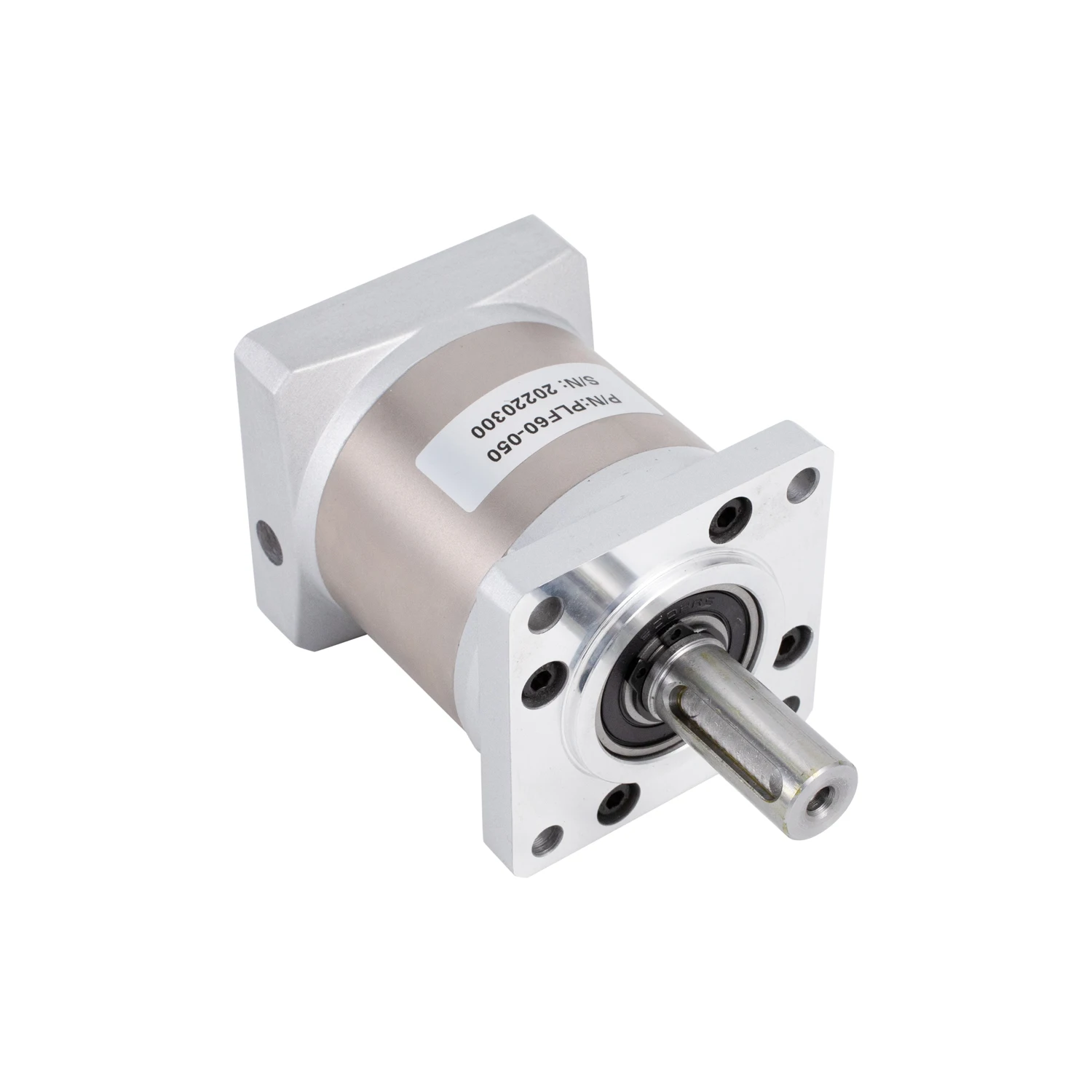

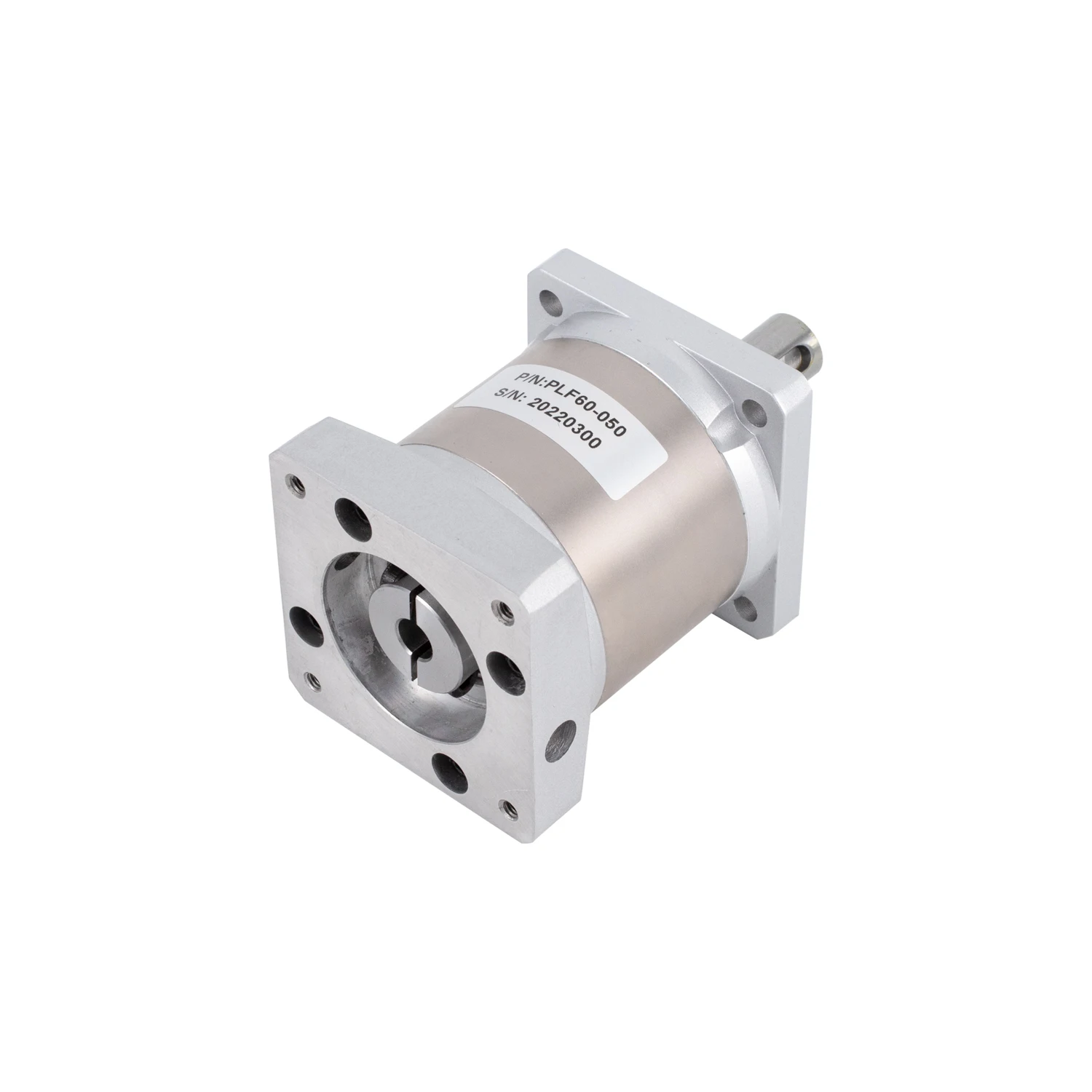

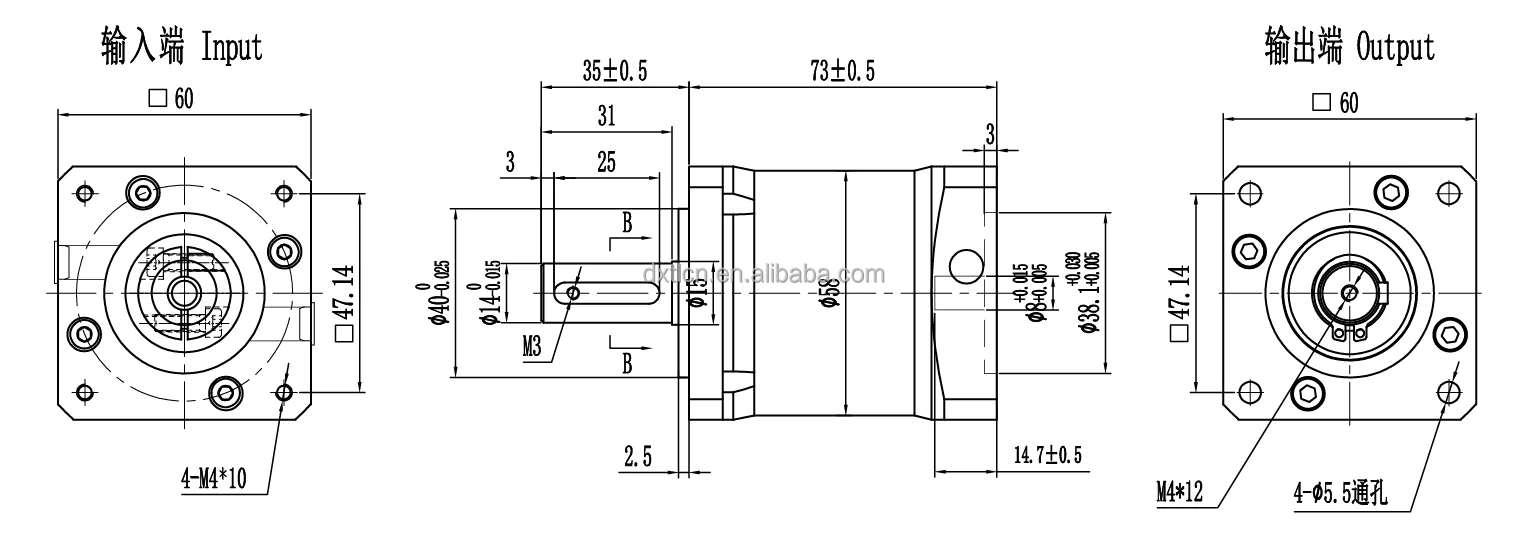

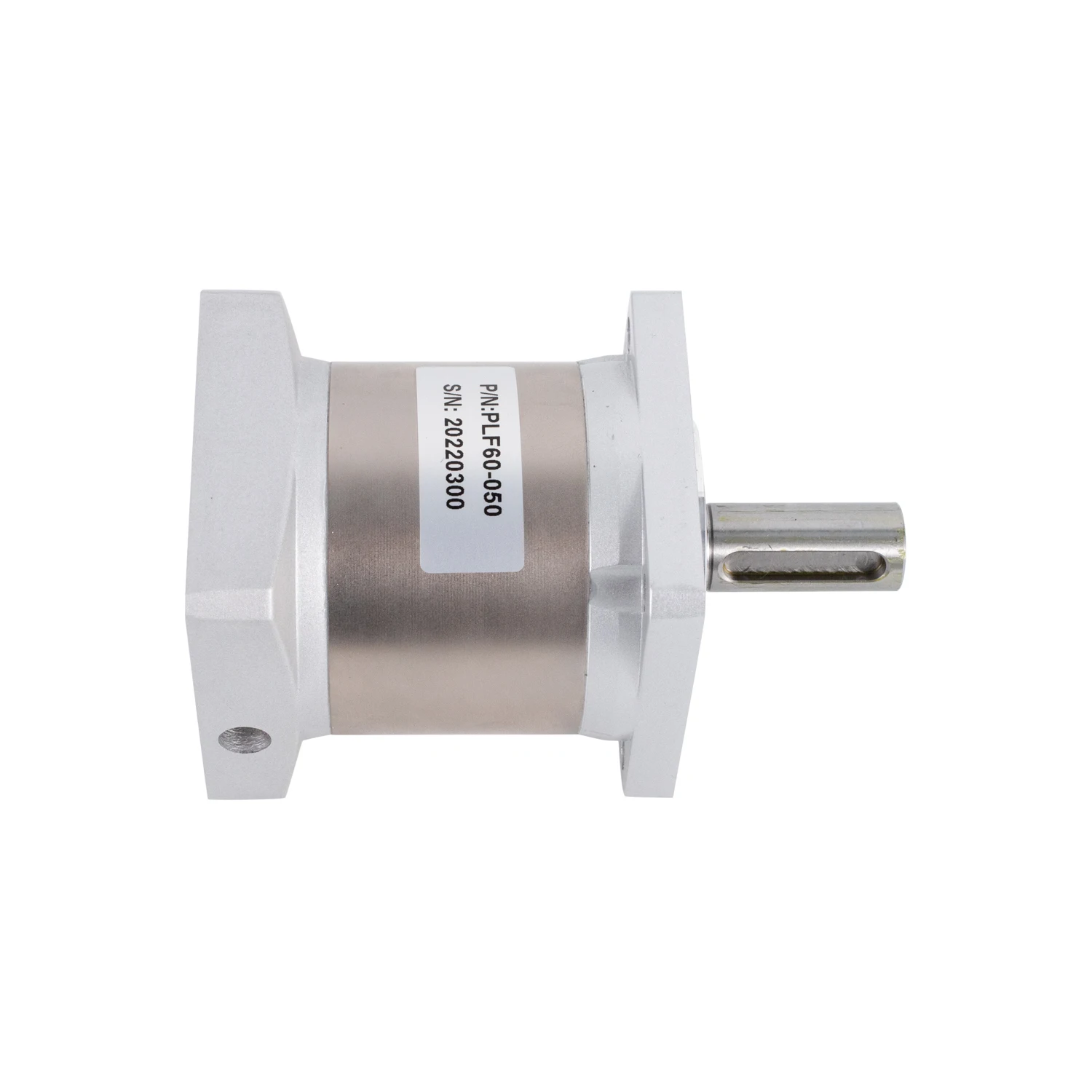

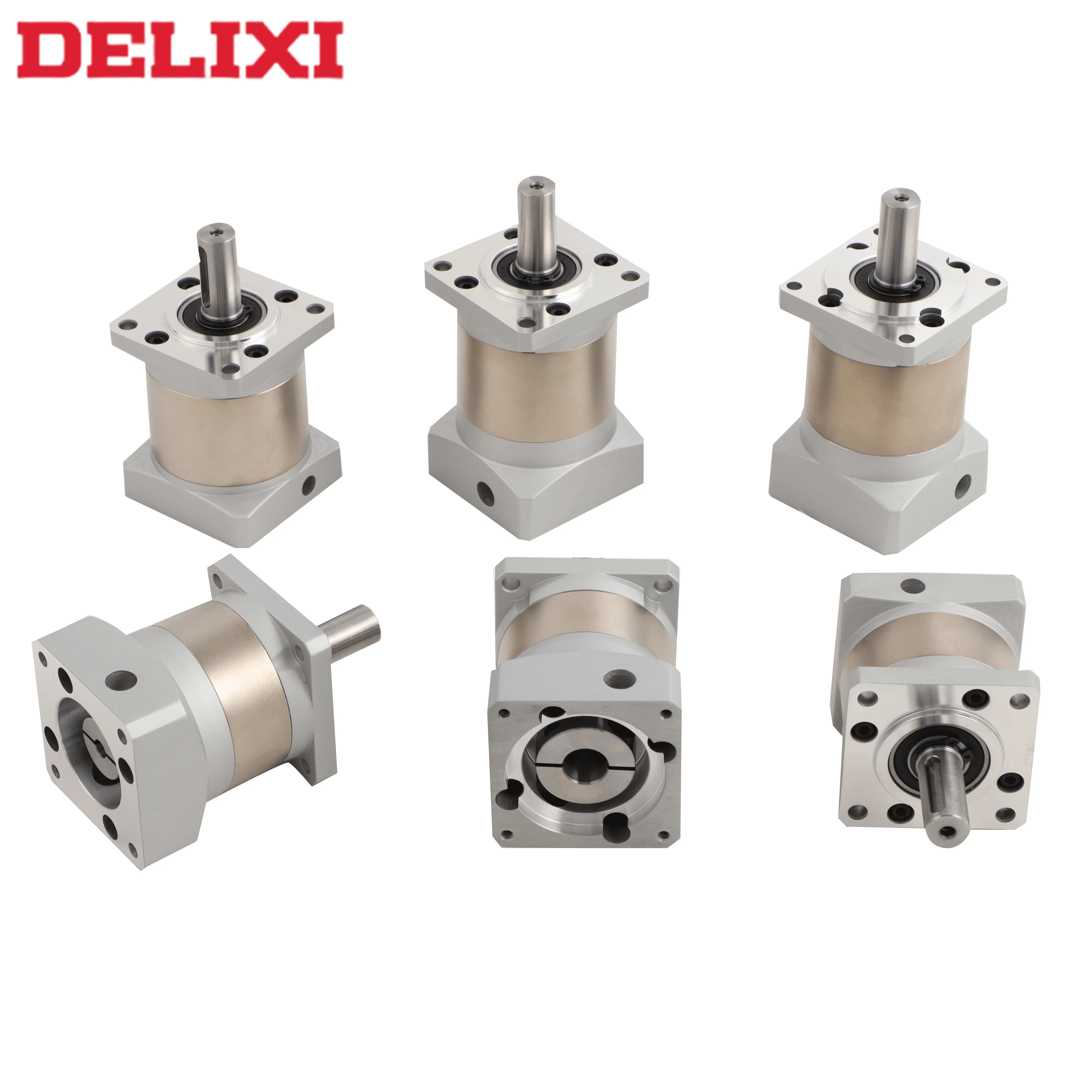

Square Flange 60mm Diameter Stepper Motor Planetary Gearbox Double Stage Planetary Reducer Planetary Gears Speed Reducer
- Overview
- Recommended Products
item |
value |
Gearing Arrangement |
Spur |
Input Speed |
≤6000 RPM |
Output Speed |
≤100 RPM |
Applicable Industries |
Manufacturing Plant, Machinery Repair Shops, Retail, Energy & Mining, Other |
Weight (KG) |
0.96KG |
Place of Origin |
China |
Ratio |
16, 20, 25, 28, 30, 35, 40, 50, 70, 100 |
Output Torque |
≤32Nm |
Warranty |
1 year |
Customized support |
OEM, ODM |
Brand Name |
DELIXI |
Backlash |
≤20 arcmin |
IP |
IP54 |
Noise |
≤65dB |
working life |
20000H |
Efficiency |
94% |
