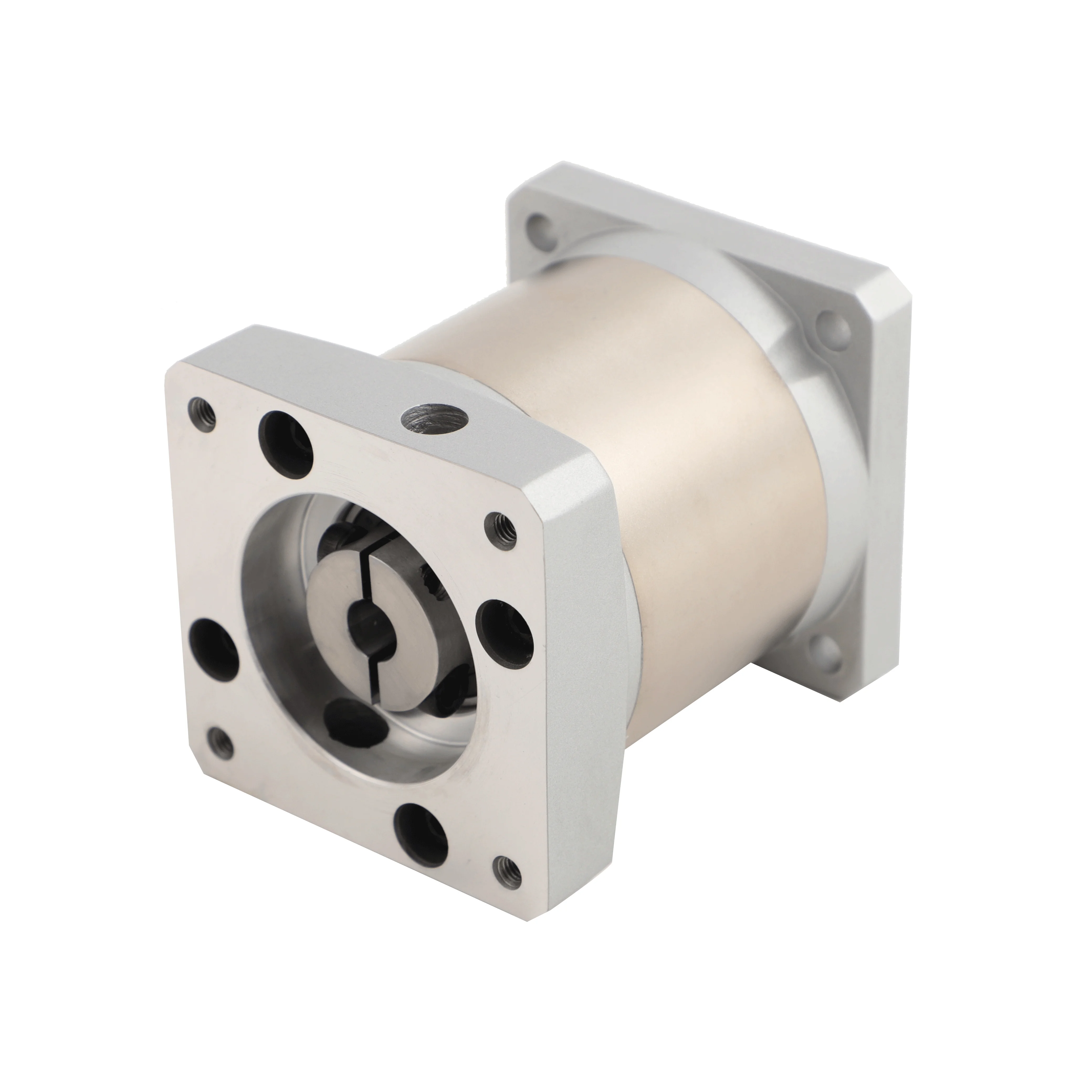

60mm 90mm Small Size PLE Series Precision Planetary Gearboxes Speed Reducers for Servo Motor
- Overview
- Recommended Products
SPECIFICATIONS |
STAGE |
RATIO |
RATED TORQUE (N.m) |
HPS60 Planetry Gearbox |
L1 |
3 |
16 |
4 |
25 |
||
5 |
28 |
||
7 |
20 |
||
10 |
10 |
||
L2 |
16 |
30 |
|
20 |
30 |
||
25 |
32 |
||
28 |
30 |
||
30 |
16 |
||
35 |
30 |
||
40 |
25 |
||
50 |
25 |
||
70 |
20 |
||
100 |
10 |
||
Rated Input Speed (rpm) |
3000 |
||
Max Input Speed (rpm) |
6000 |
||
Backlash |
L1 |
≤ 15Arcmin |
|
L2 |
≤ 20Arcmin |
||
Fault stop torque(N.m) |
2 times of rated torque |
||
Efficiency |
L1 |
96% |
|
L2 |
94% |
||
Average life span |
20000h |
||
Operating temperature |
-20°~+150° |
||
Nosie |
≤55 db |
||
IP |
54 |
||
Installation method |
Any installation method |
||

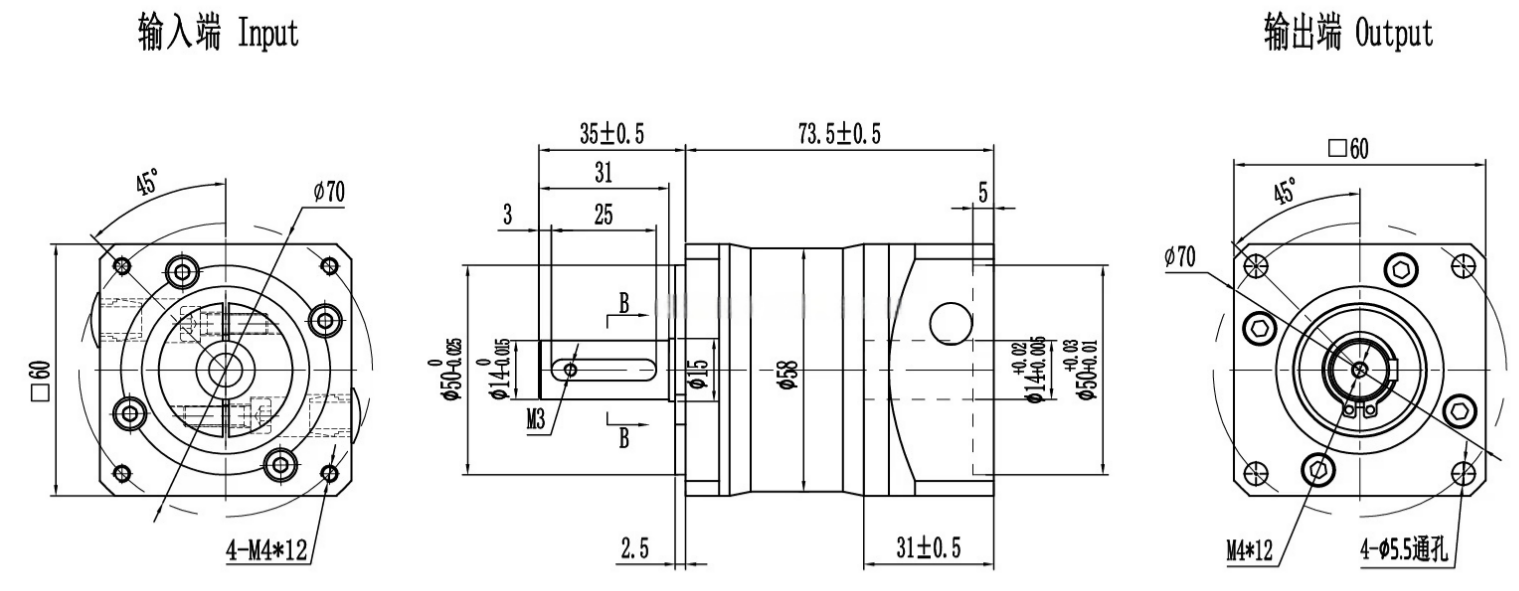

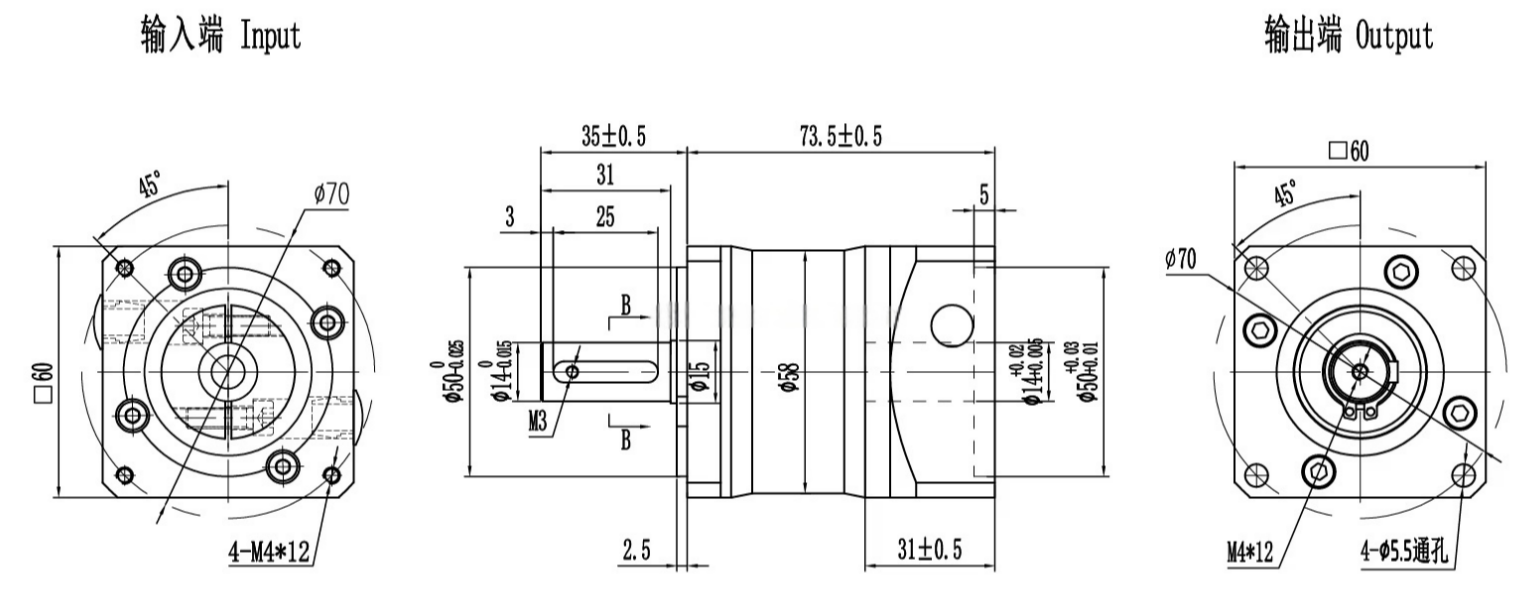

L1MA

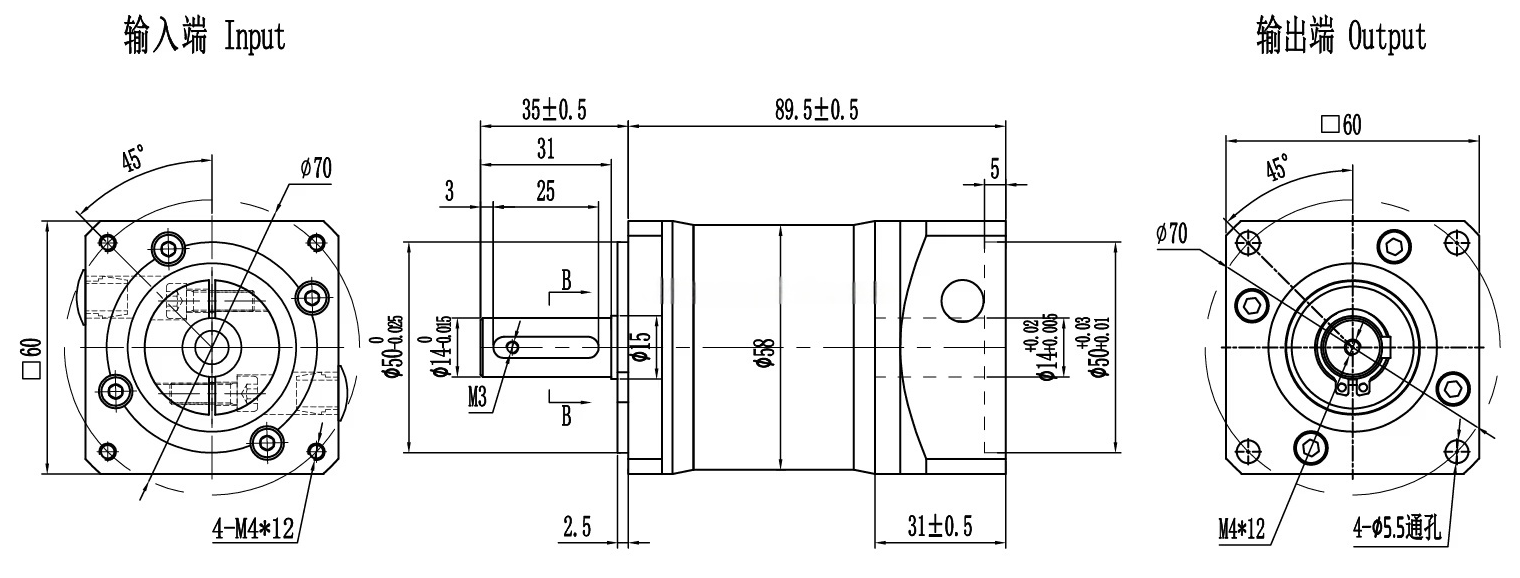

L1MAW

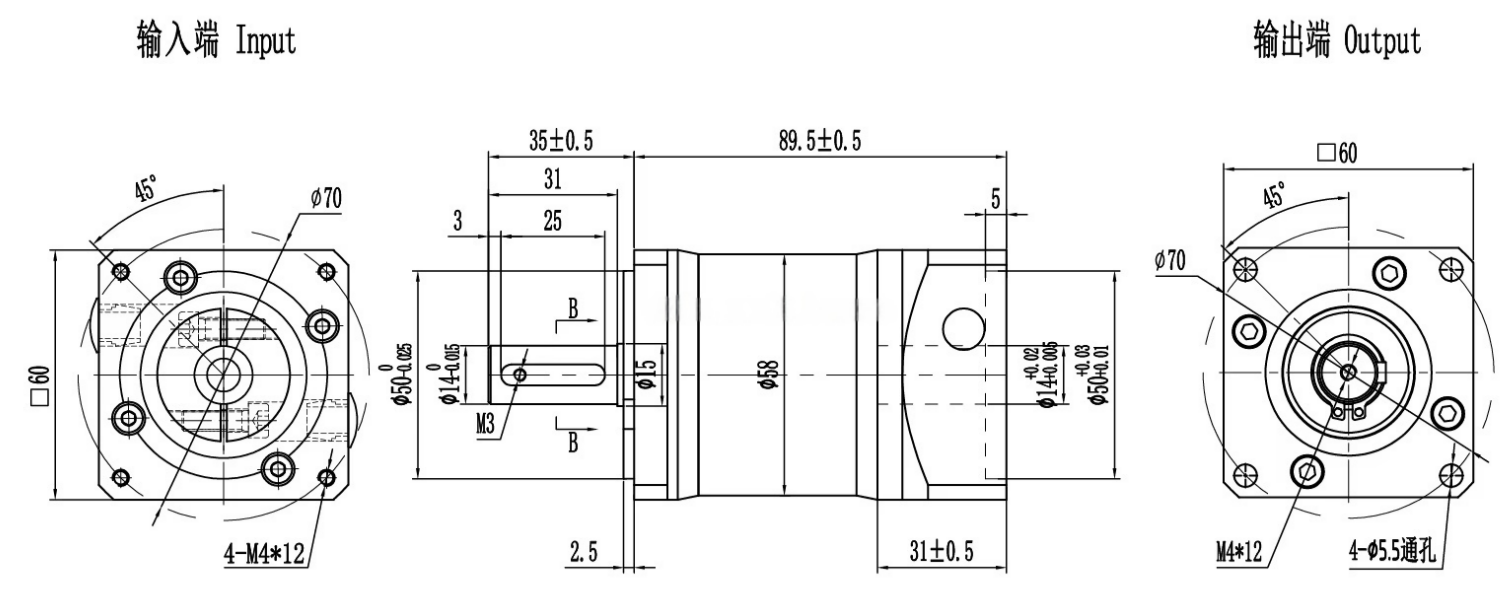

L2MA
L2MAW
