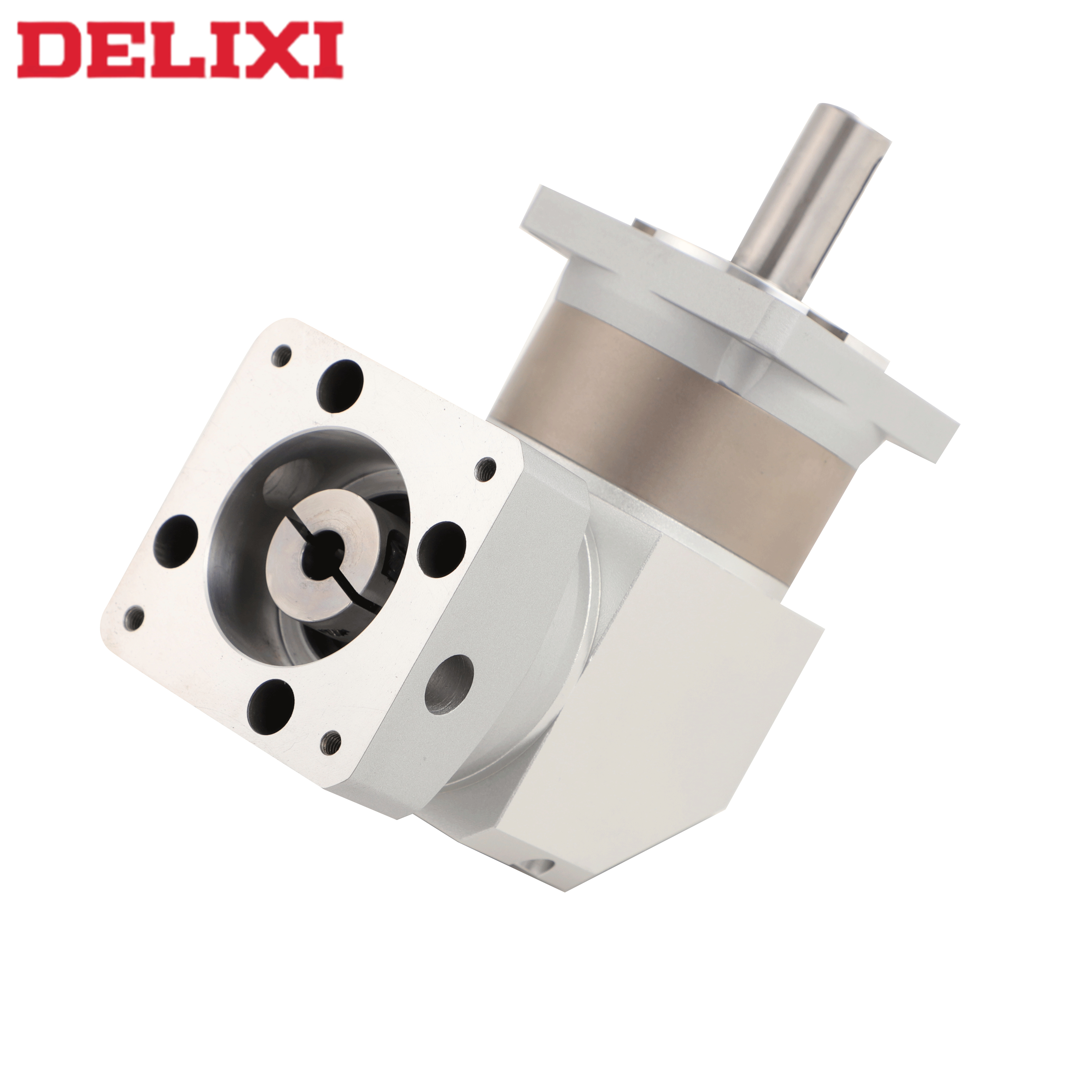

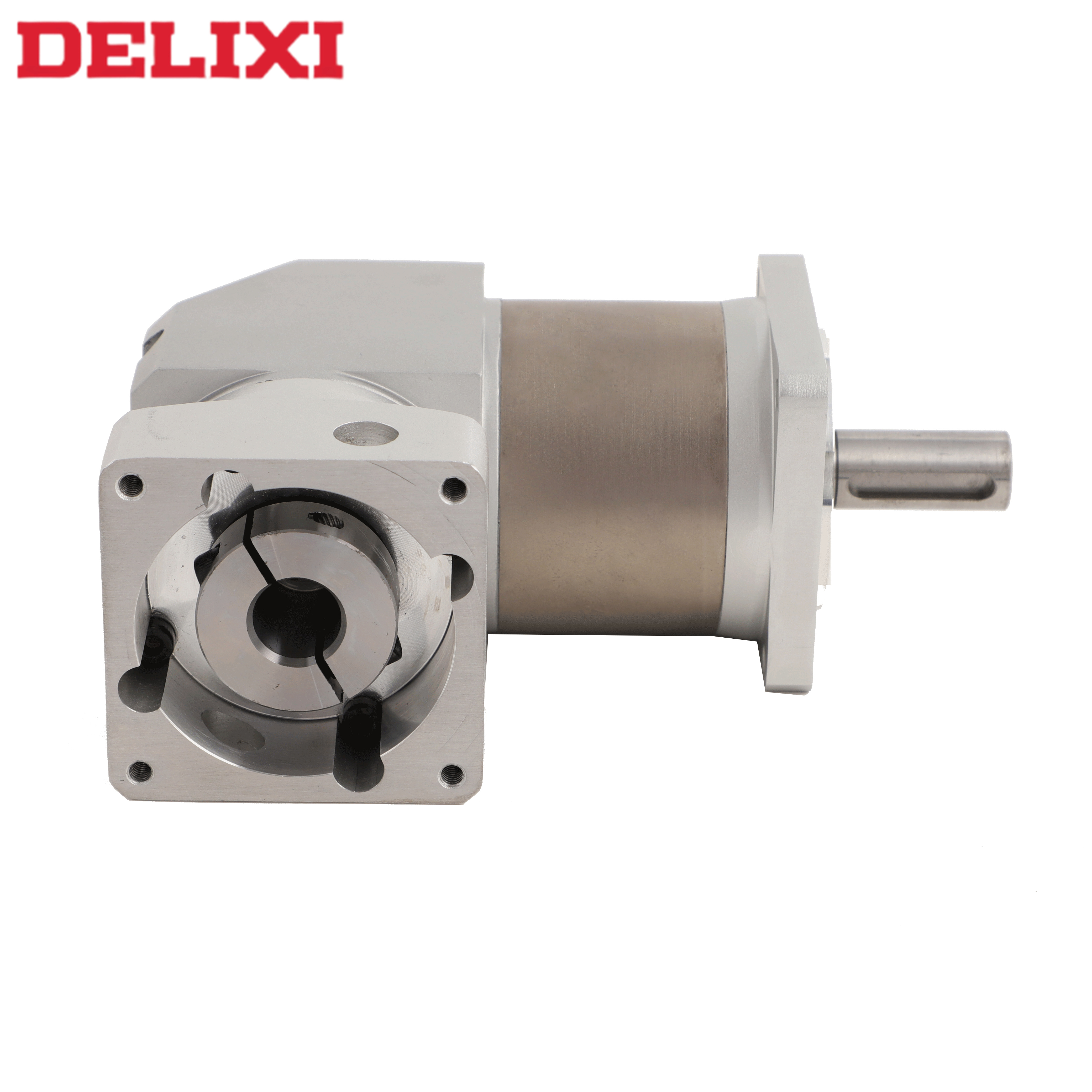

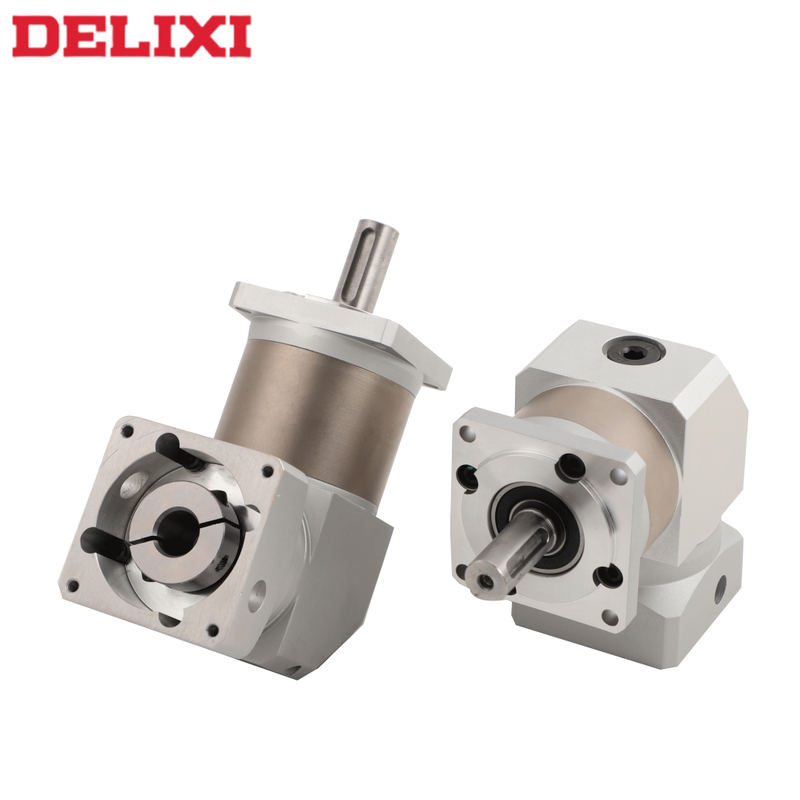

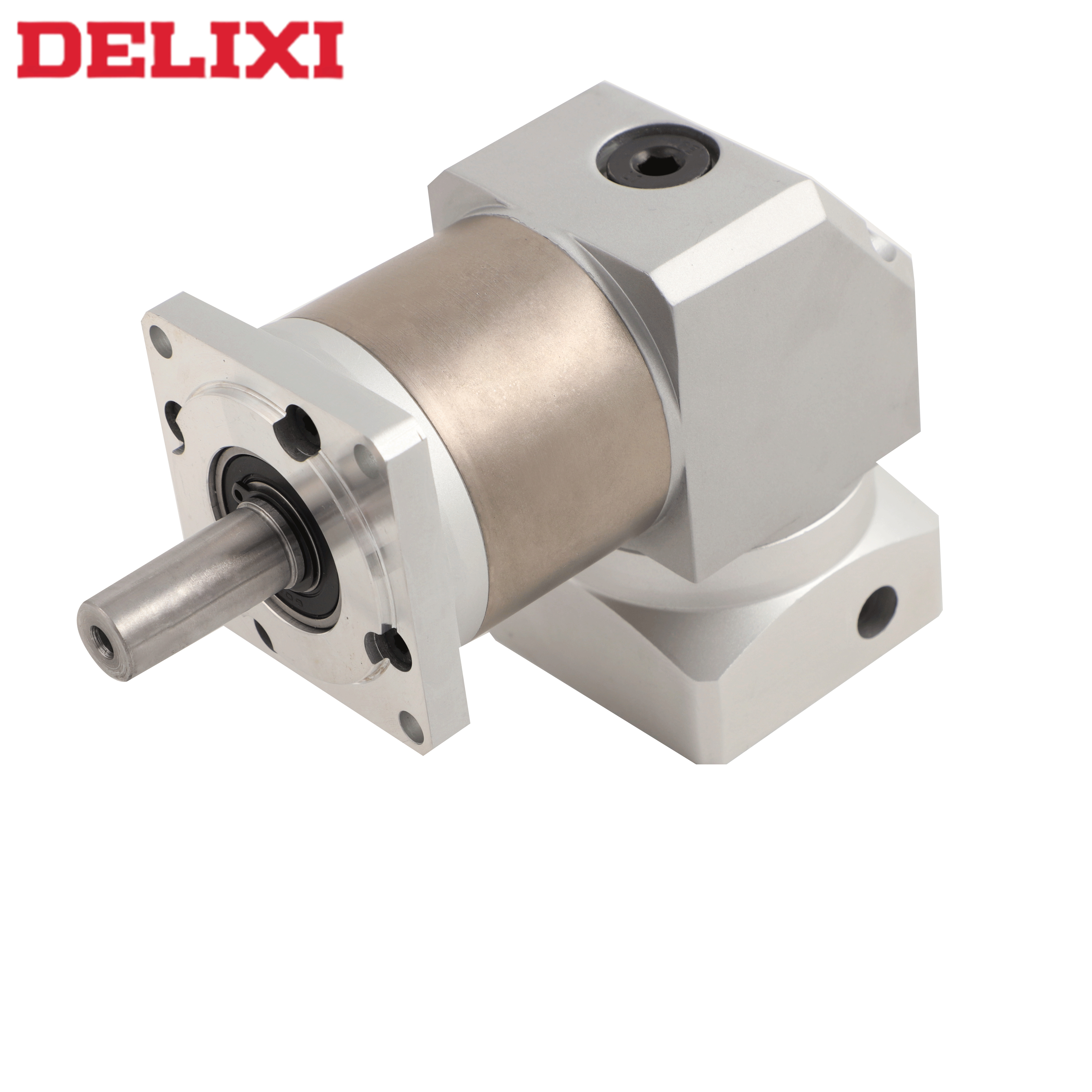

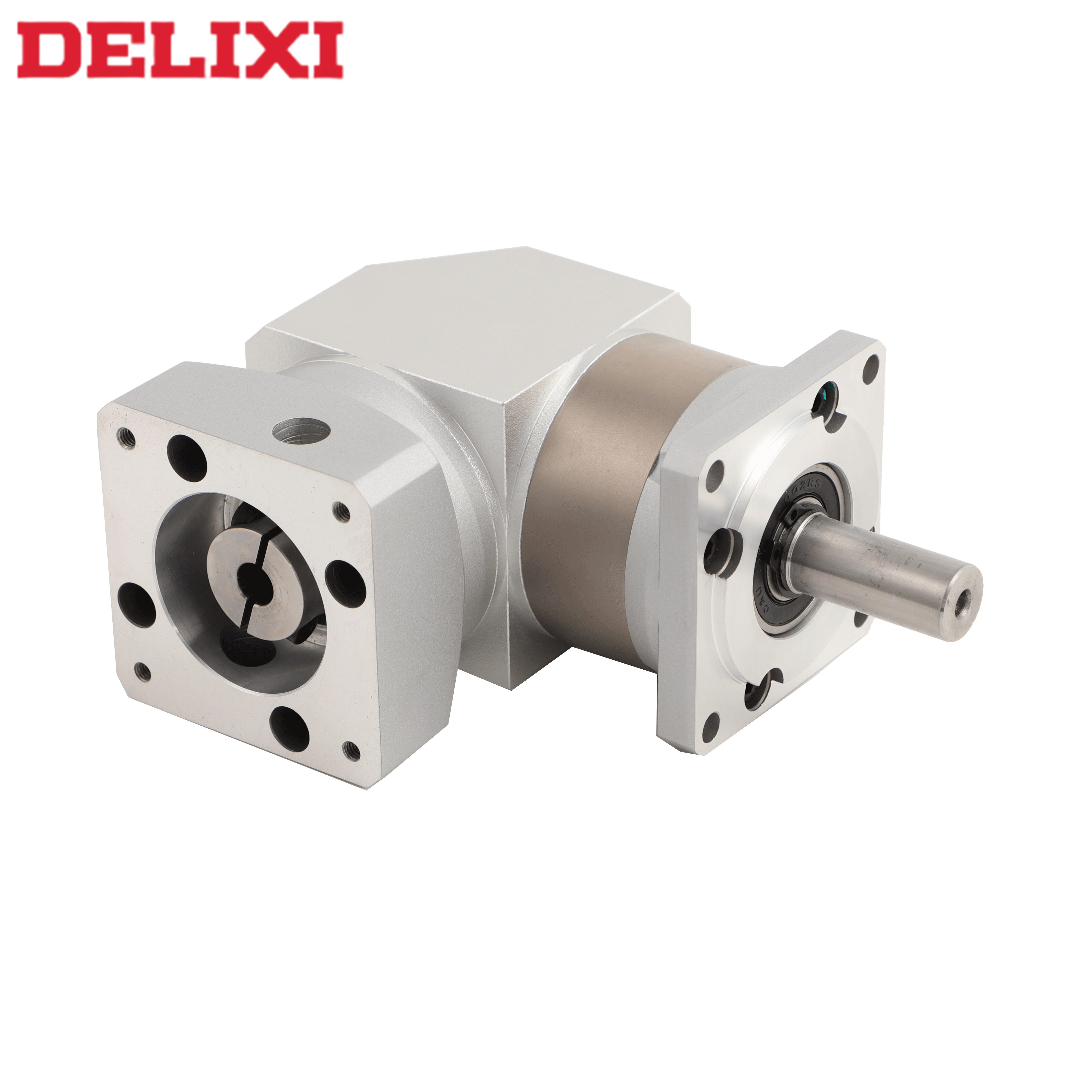

60mm High Precision Right Angle Gear Planetary Gearbox

60mm High Precision Right Angle Gear Planetary Gearbox

Planetary gearbox is a versatile industrial product that reduces the speed of the motor while increasing the output torque. Planetary gearboxes can be used as supporting components in lifting, excavation, transportation, construction and other industries.

Model:
HPZS60-L1/L2-MA/MB/MC

Ratio:	4-70
Norminal output torque:	10-32N.m
Input speed:	3000-6000rpm
Backlash:	≤10/15arcmin
Efficiency:	94-96%
Weight:	1.4-1.65kg
Availability:

Quantity:



Inquire Add to Basket

Product Description

Product Introduction

Planetary gearbox is a versatile industrial product that reduces the speed of the motor while increasing the output torque. Planetary gearboxes can be used as supporting components in lifting, excavation, transportation, construction and other industries.

Why Choose Our Products?

1.With conical tooth reversing structure to realize the output of amicable angle steering

2.Input connections are available in a wide range of sizes and options

3.Steel teeth straight gear transmission, single cantilever structure, simple design, cost-effective
4.Smooth running and low noise

Technical Parameters

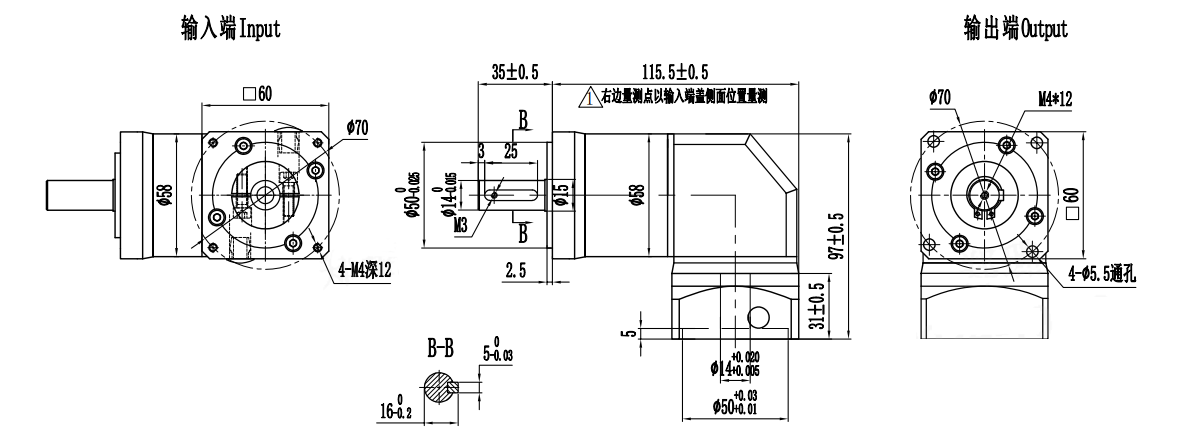

HPZS60-L1/L2-MA

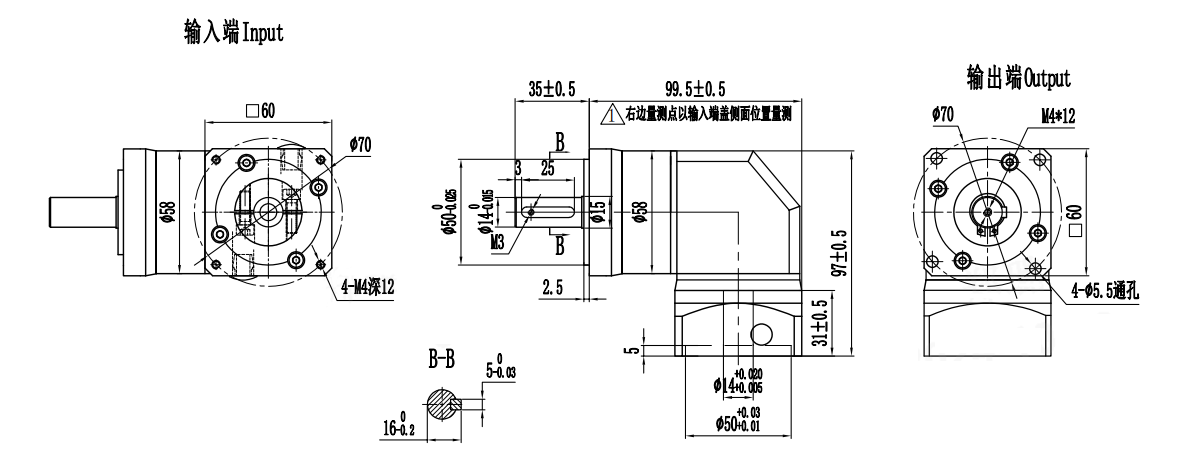

HPZS60-L1MA

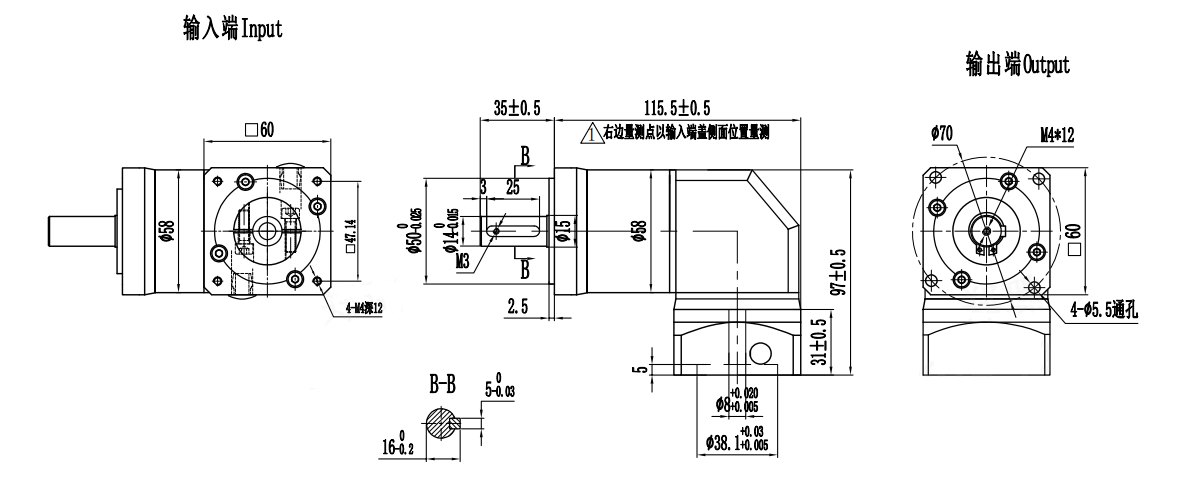

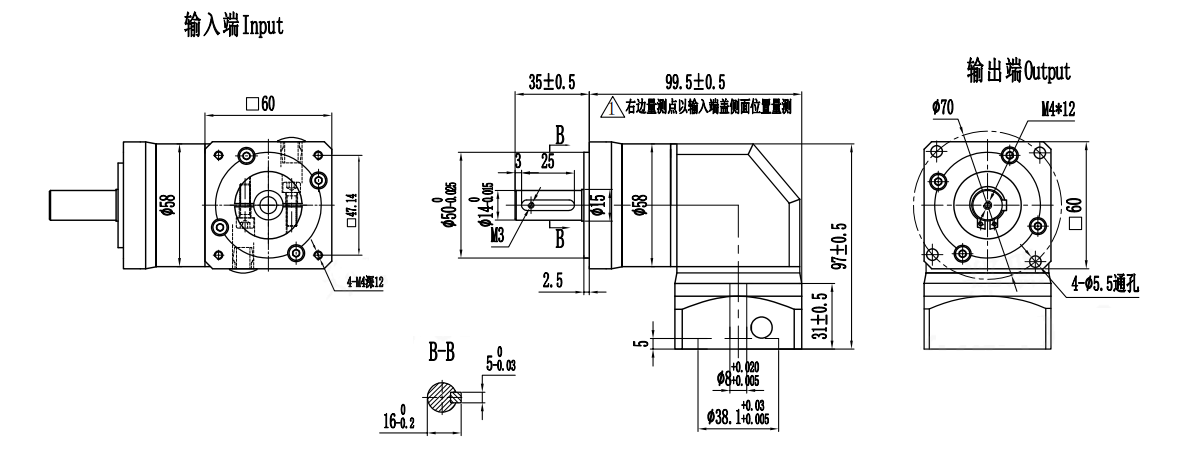

HPZS60-L1/L2-MB

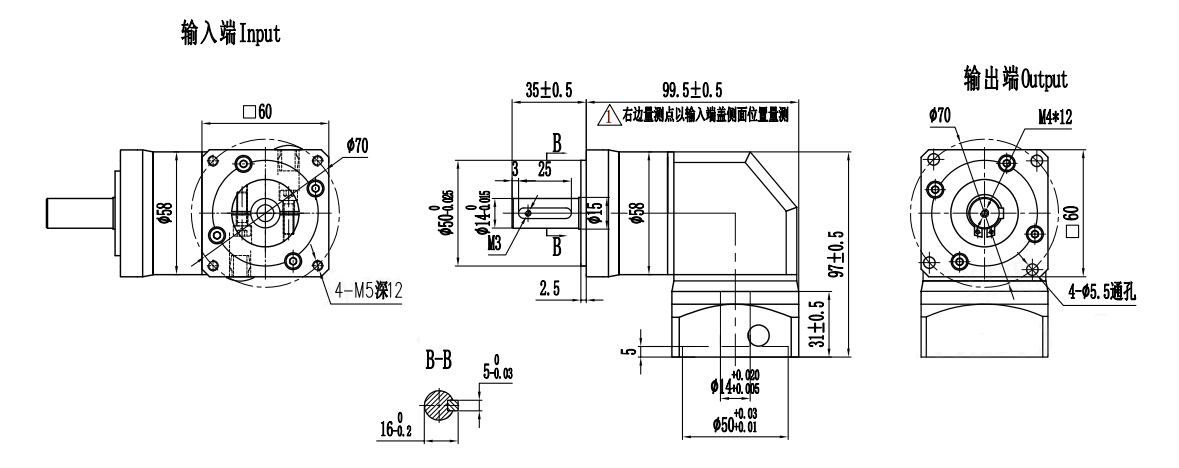

HPZS60-L1/L2-MC

HPZS60-L2MC

Product Uses

Industrial automation field / CNC machine tool industry / new energy field / medical equipment industry / packaging and printing industry / electronic manufacturing field / automobile manufacturing industry / logistics and warehousing field

Type MA: standard flange: adapting to 400W aervo motor, install threaded holes M4

Type MB: standard flange: adapting to 57 stepper motor

Type MC: standard flange: adapting to 400W aervo motor, install threaded holes M5

Please inquire us for more details of this product!
