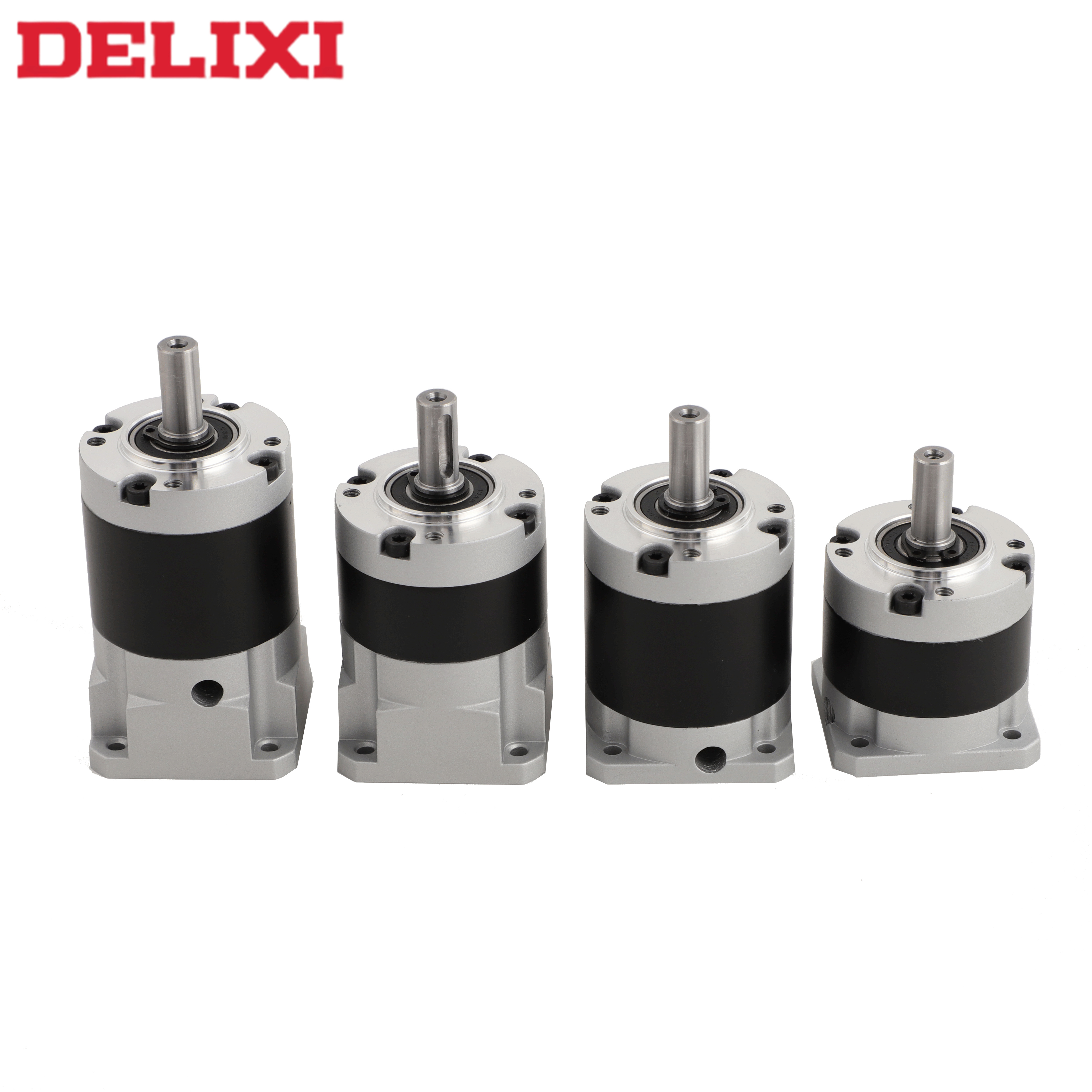

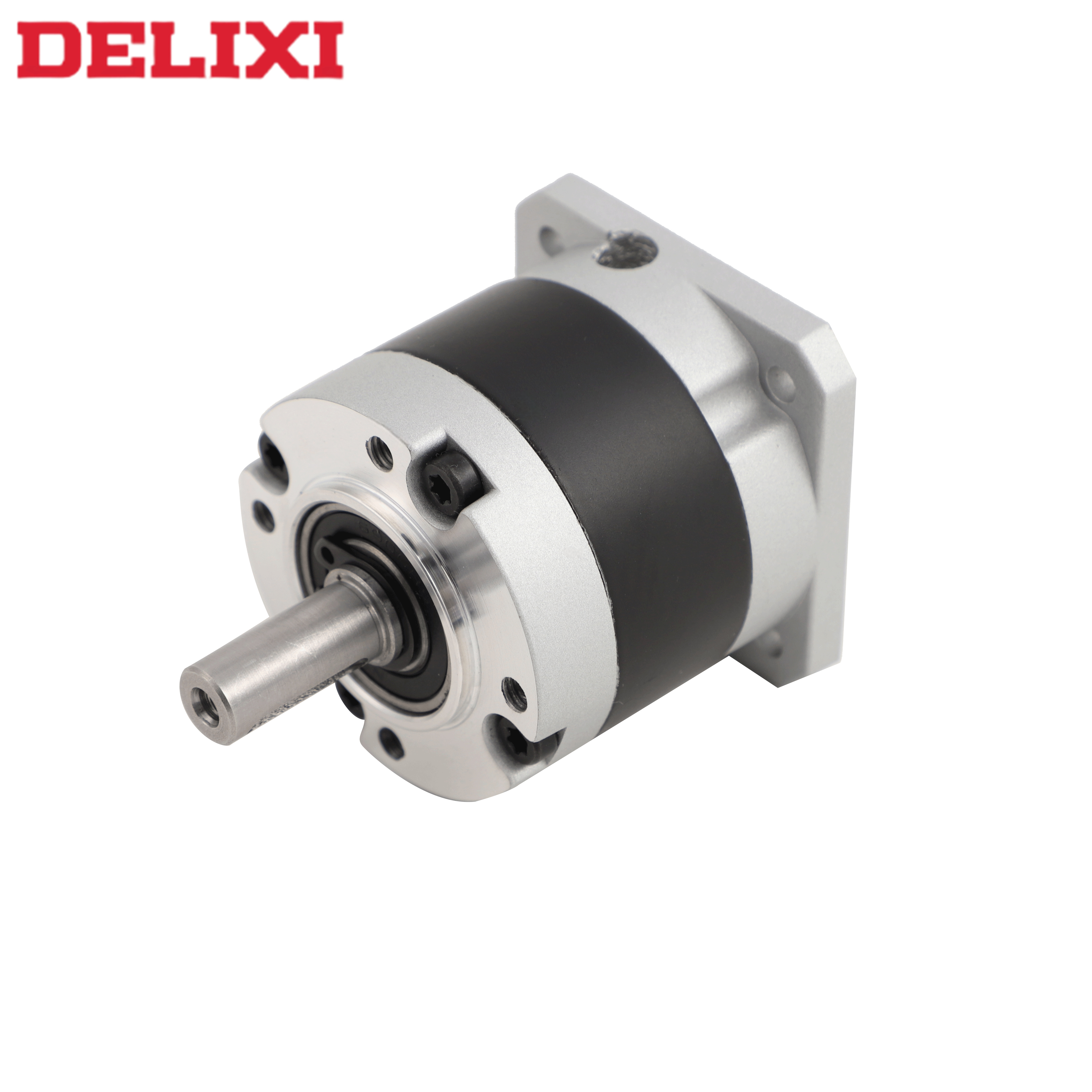

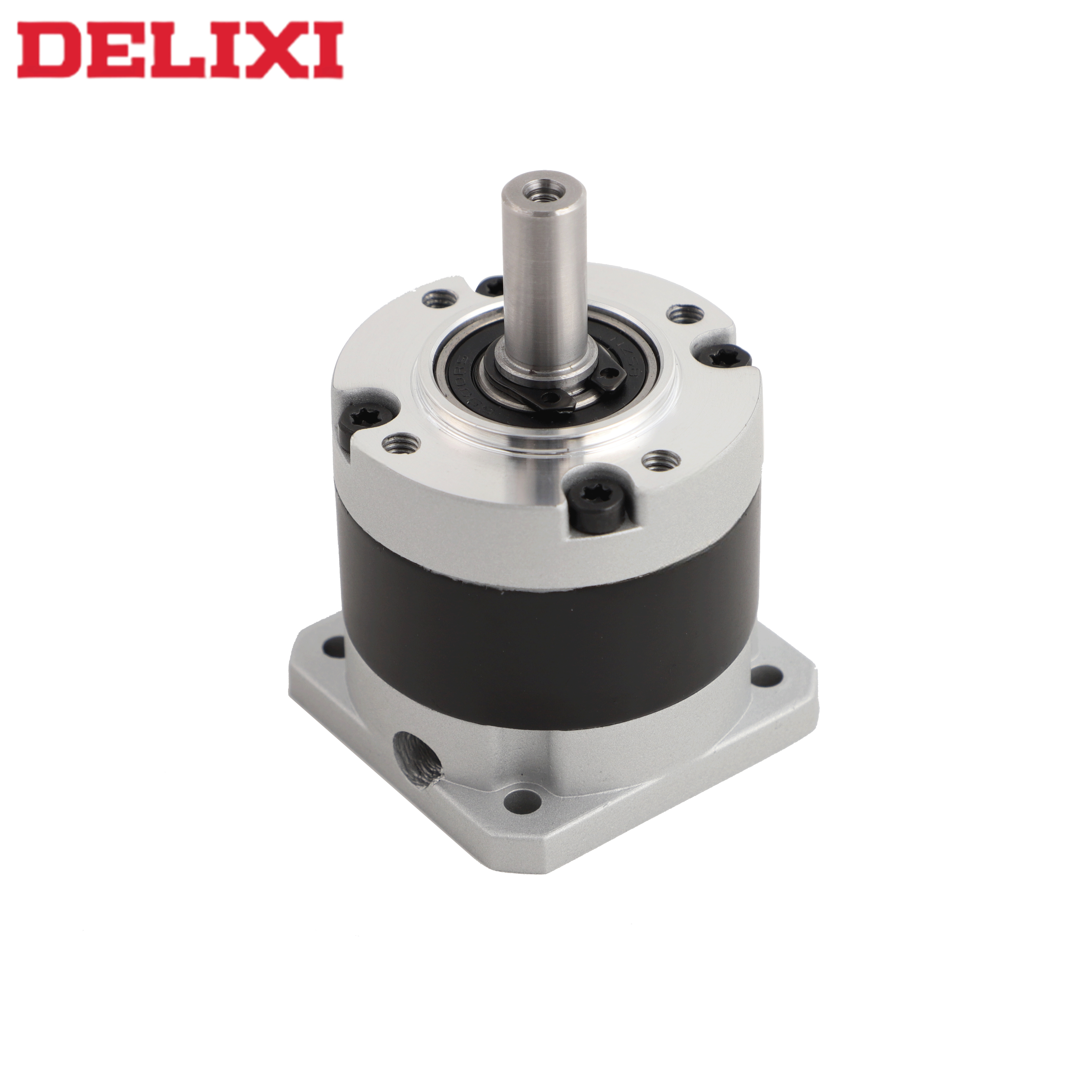

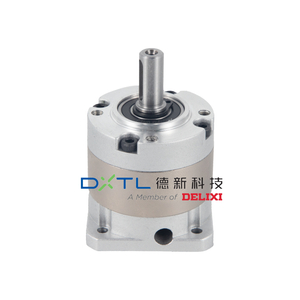

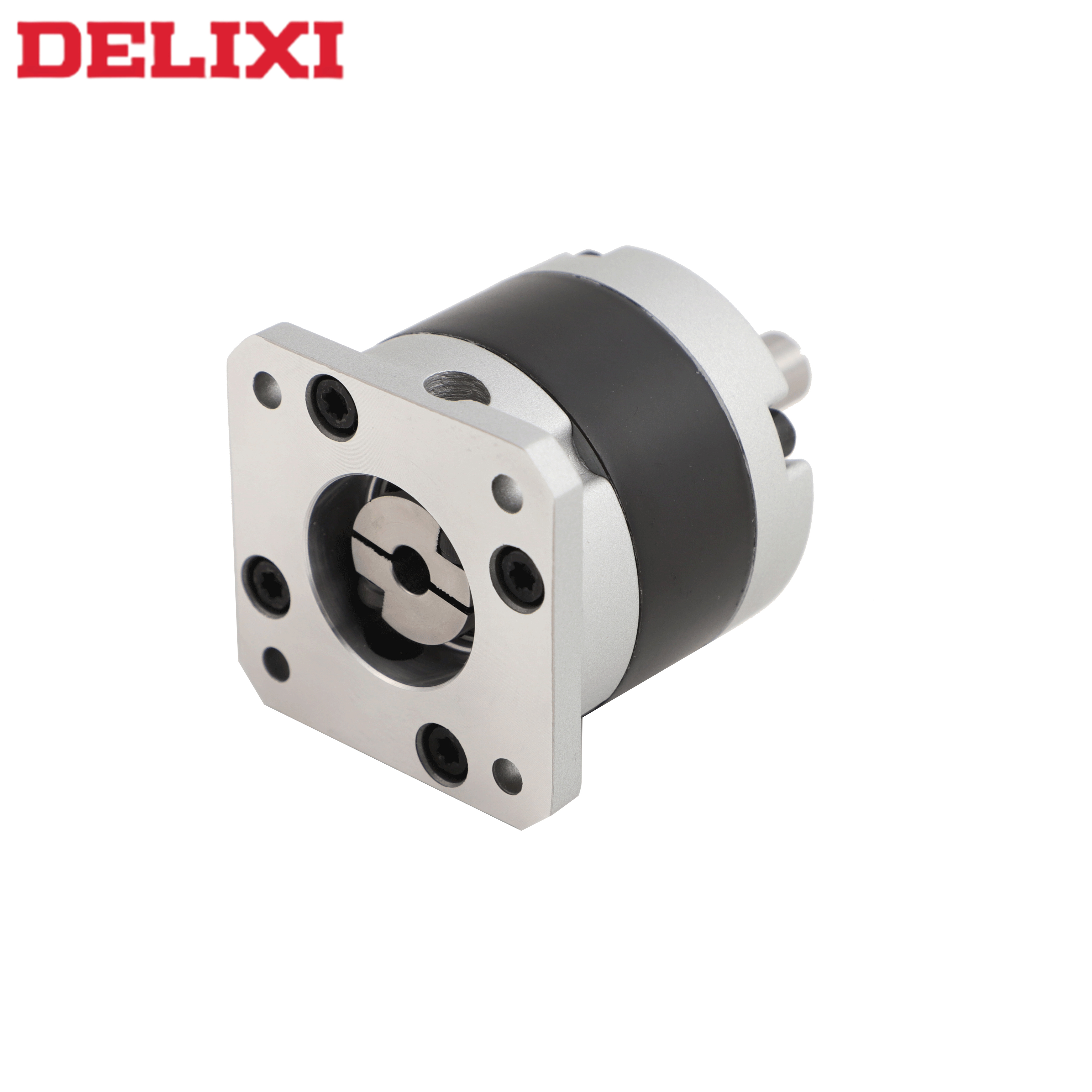

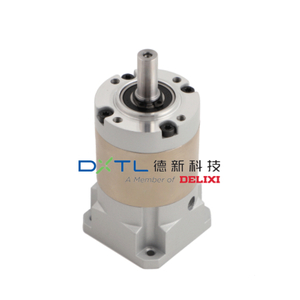

42mm Powder Meyallurgy Spur Gear Planetary Gearbox Round Mounted Flange with Single/Double Stage

42mm Powder Meyallurgy Spur Gear Planetary Gearbox Round Mounted Flange with Single/Double Stage

Planetary gearbox is a versatile industrial product that reduces the speed of the motor while increasing the output torque. Planetary gearboxes can be used as supporting components in lifting, excavation, transportation, construction and other industries.

Model:
FLE42-L1/L2-SW

Ratio:	04/05/10/20/25/50/100
Norminal output torque:	9-12N.m
Input speed:	1000-2000rpm
Backlash:	≤30/45arcmin
Efficiency:	90/80%
Weight:	0.25-0.38kg
Availability:

Quantity:



Inquire Add to Basket

Product Description

Product Introduction

Planetary gearbox is a versatile industrial product that reduces the speed of the motor while increasing the output torque. Planetary gearboxes can be used as supporting components in lifting, excavation, transportation, construction and other industries.

Why Choose Our Products?

1.Round flange shaft output, threaded reverse connection, standardized dimensions
2.Input connections are available in a wide range of sizes and options
3.Powder metallurgy steel teeth straight gear transmission, single cantilever structure, simple design, cost-effective
4.Smooth running and low noise

Technical Parameters

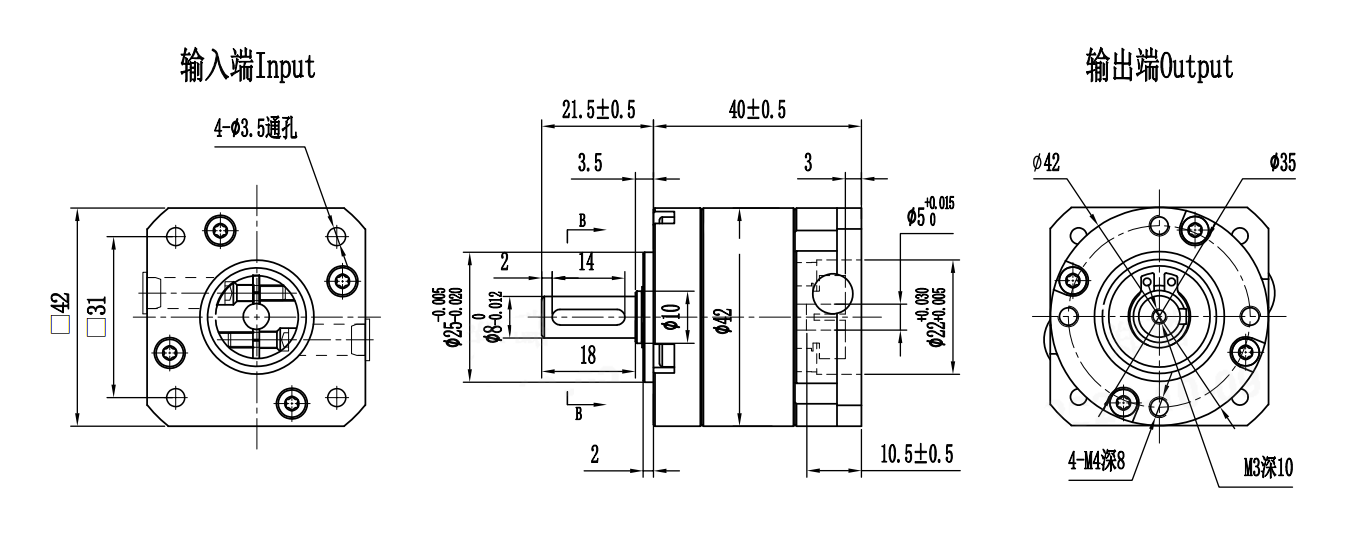

FLE42-L1

FLE42-L1

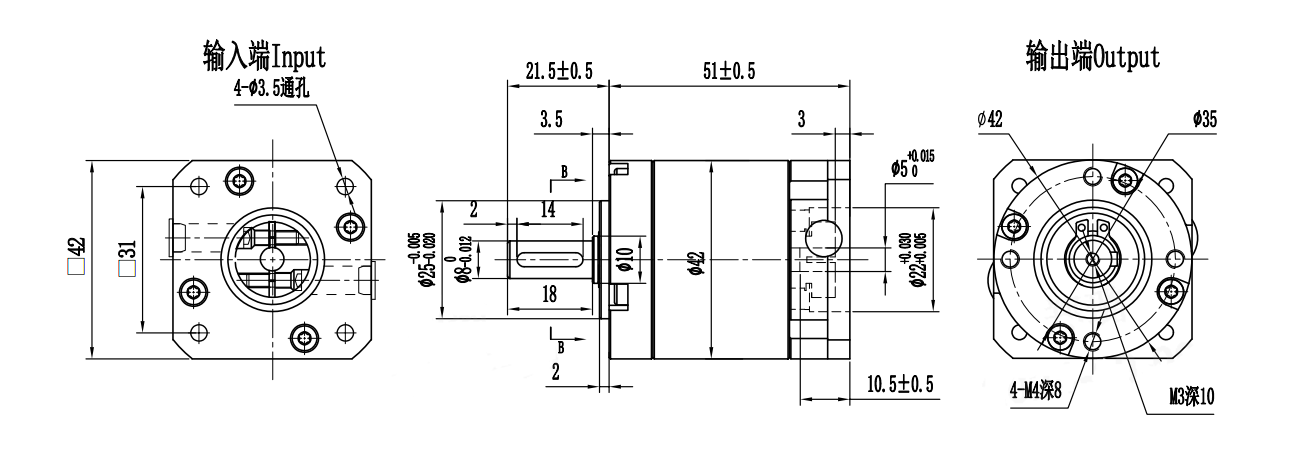

FLE42-L2

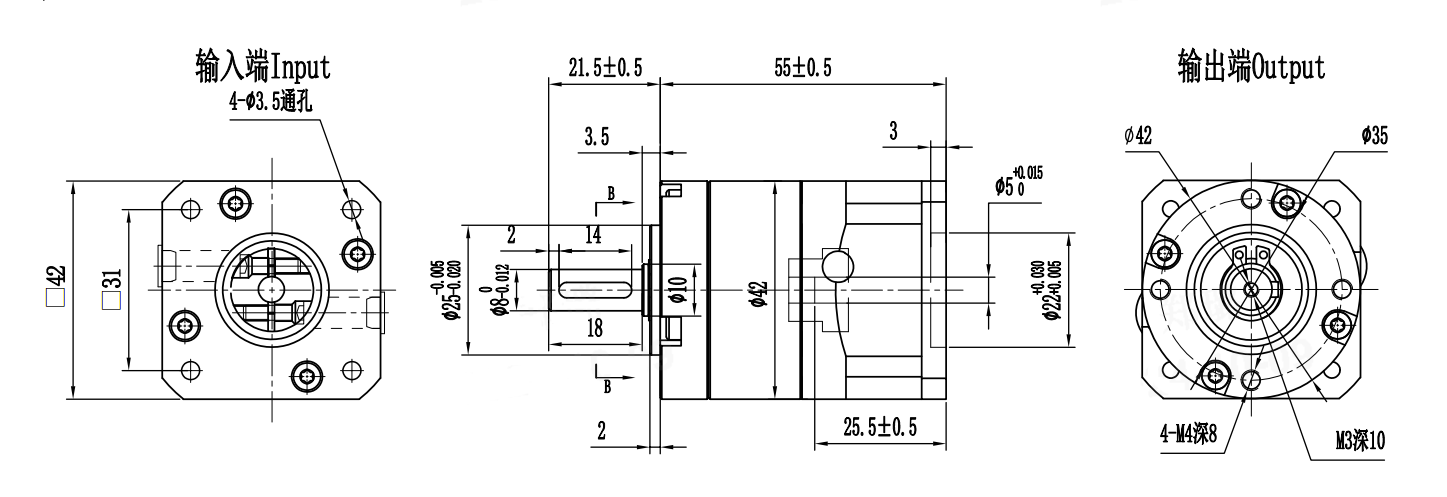

FLE42-L1-SW

FLE42-L2-SW

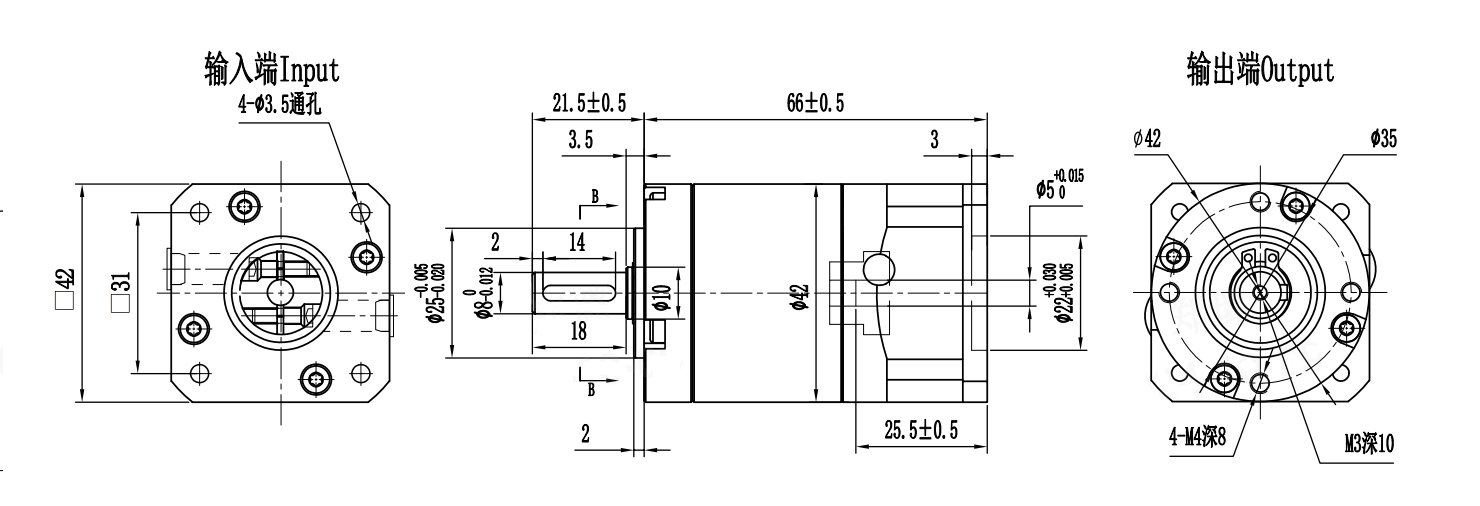

FLE42-L2SW

Product Uses

Industrial automation field / new energy field / medical equipment industry / packaging and printing industry / electronic manufacturing field / automobile manufacturing industry / logistics and warehousing field

Please inquire us for more details of this product!
