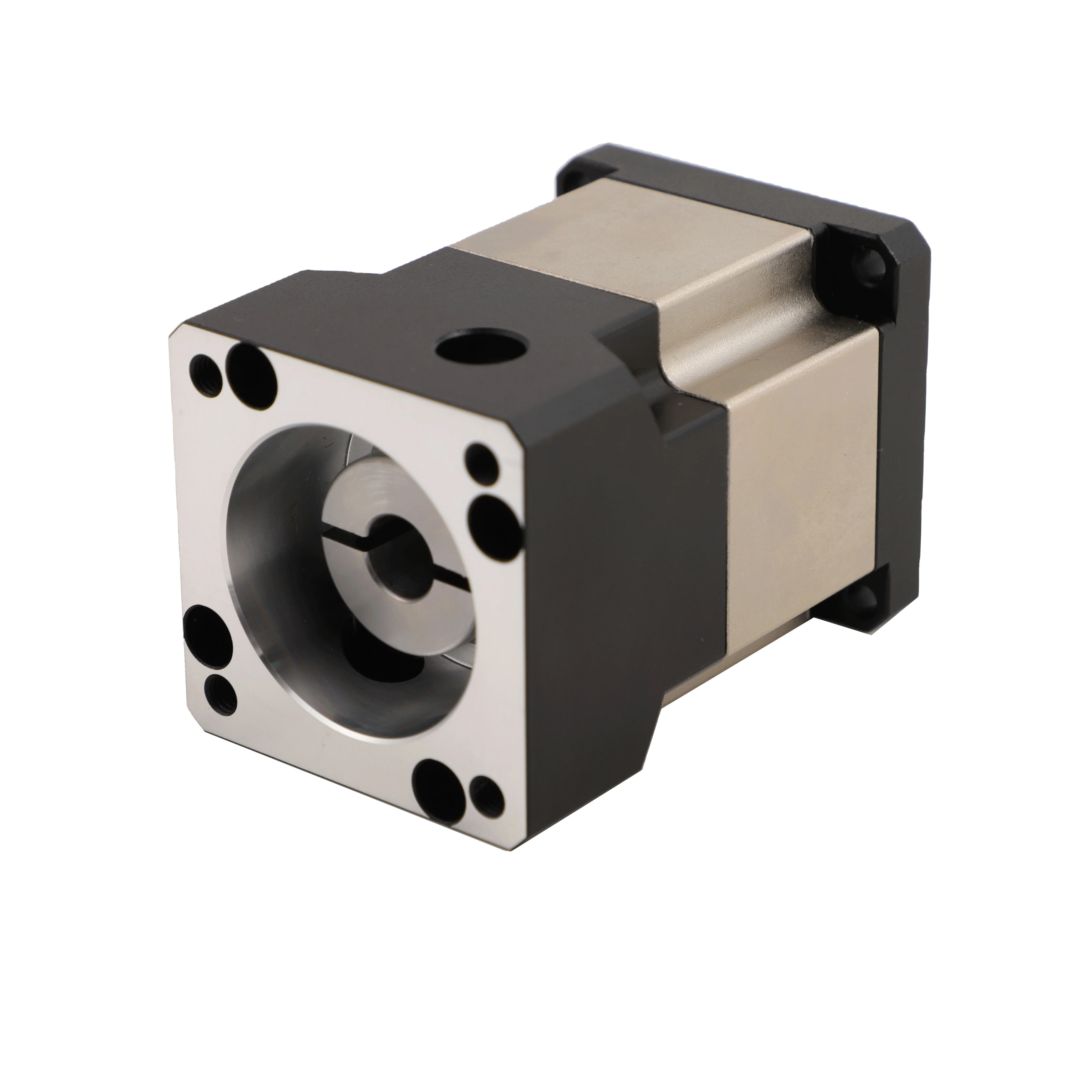

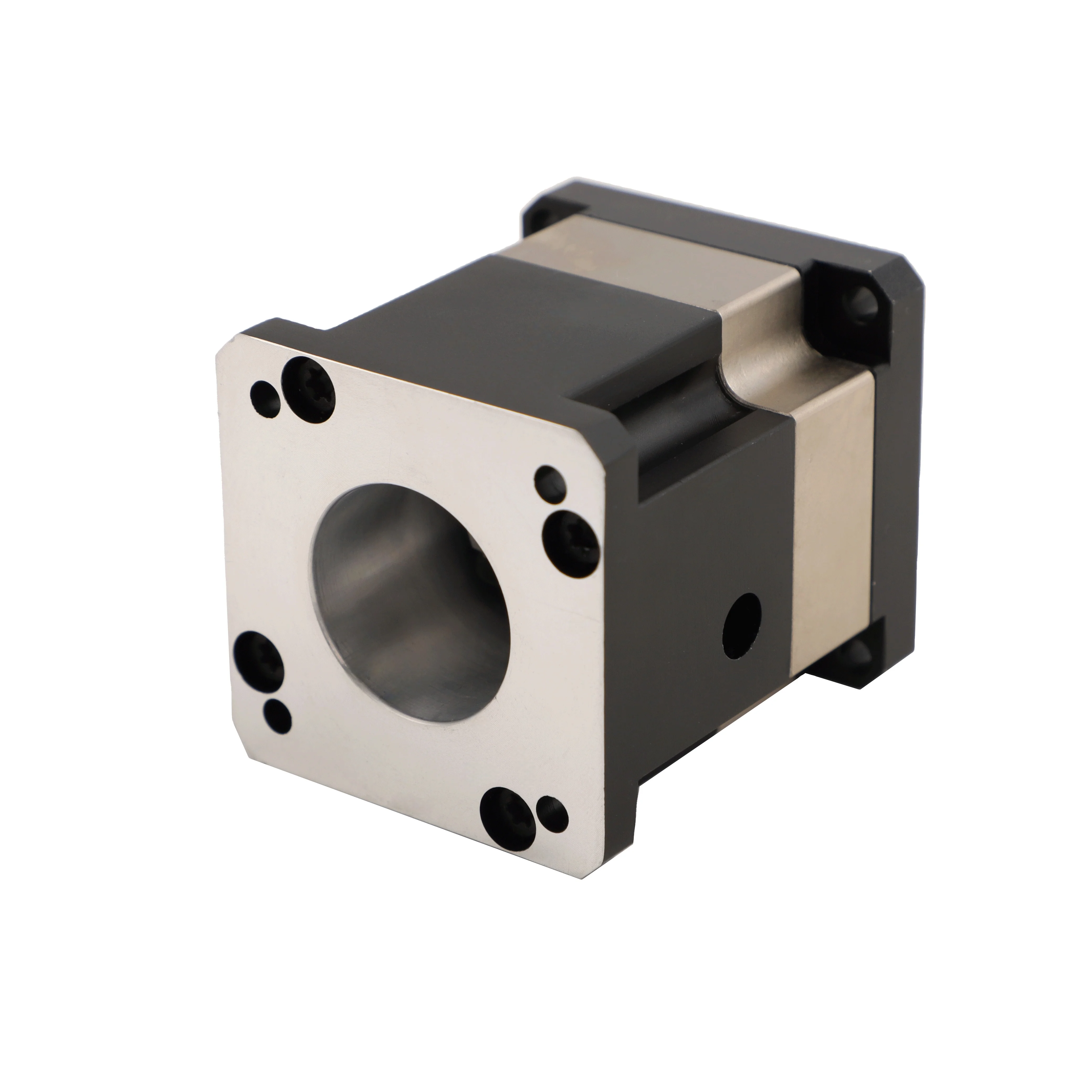

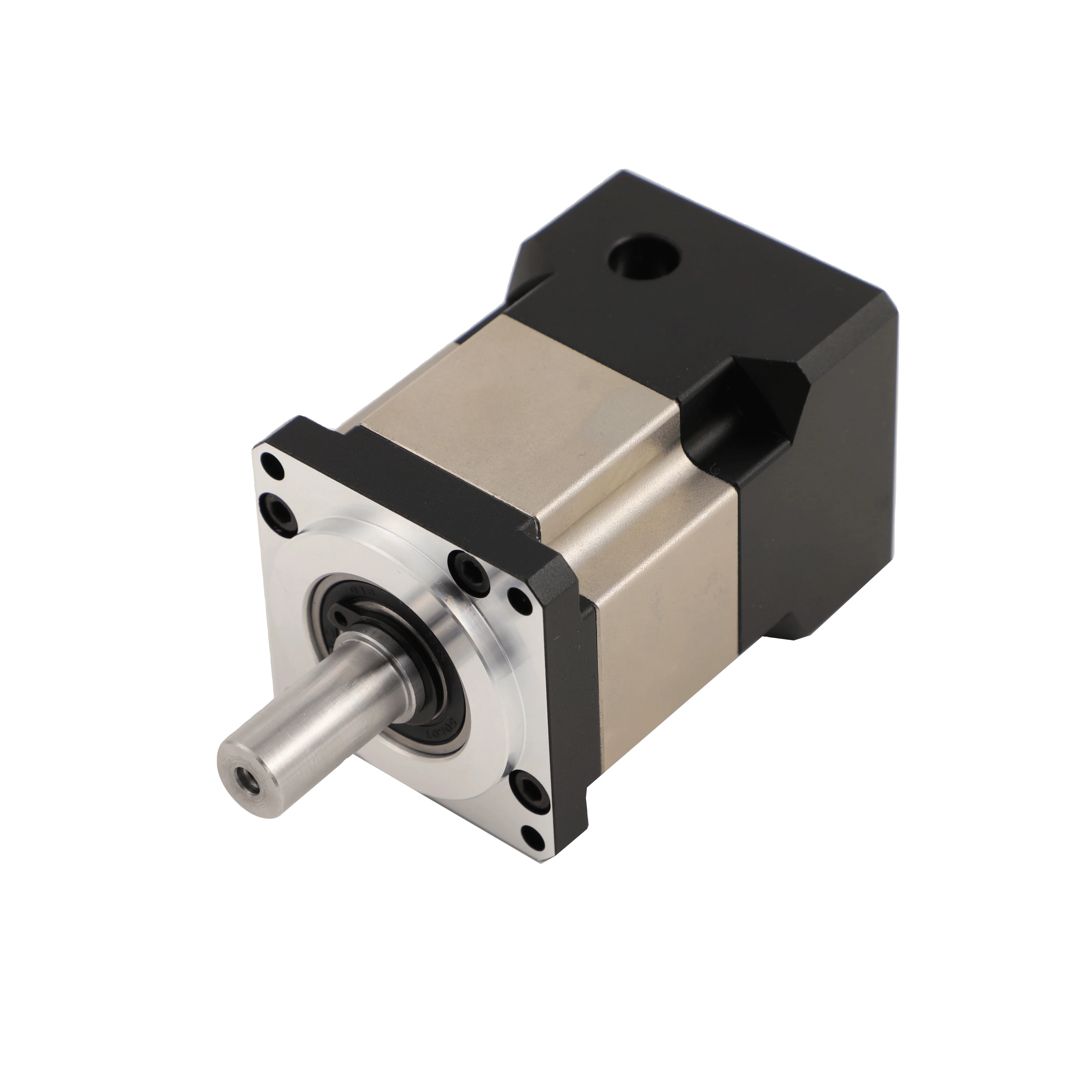

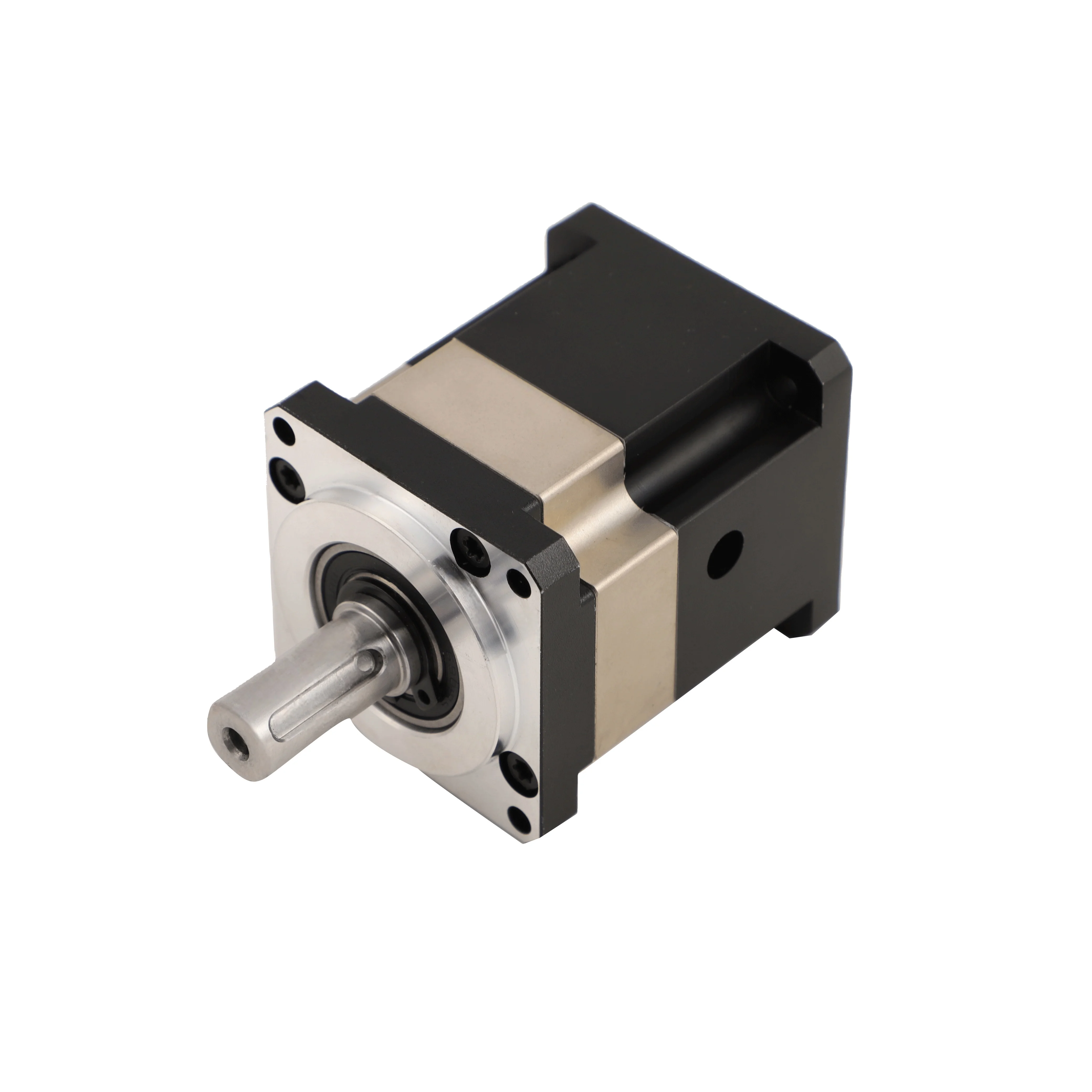

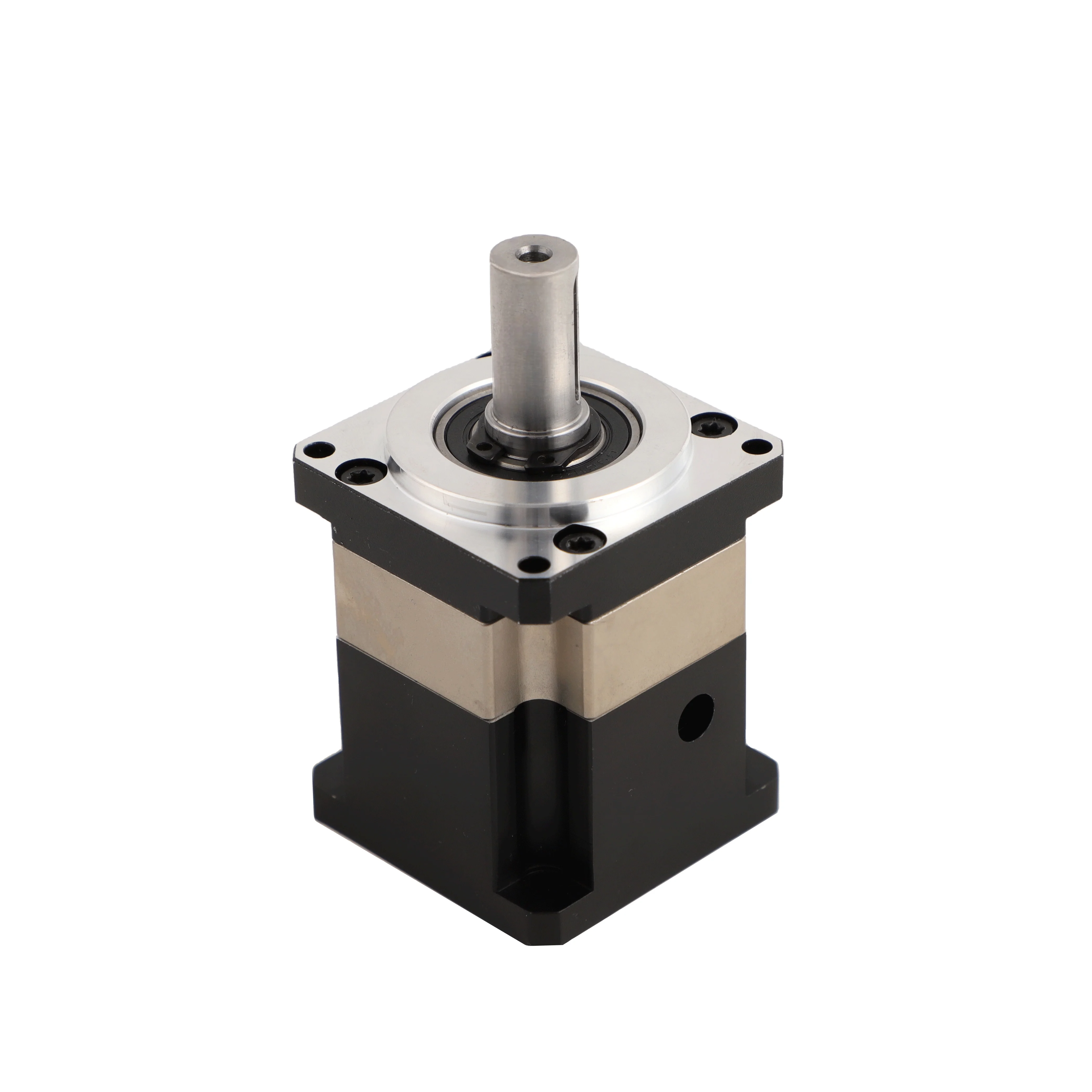

High Torque 42mm Planetary Gearbox Reducer Planetary Gearboxes Use for Servo Stepper Motor
High Torque 42mm Planetary Gearbox Reducer Planetary Gearboxes Use for Servo Stepper Motor
High Torque 42mm Planetary Gearbox Reducer Planetary Gearboxes Use for Servo Stepper Motor
High Torque 42mm Planetary Gearbox Reducer Planetary Gearboxes Use for Servo Stepper Motor
High Torque 42mm Planetary Gearbox Reducer Planetary Gearboxes Use for Servo Stepper Motor
High Torque 42mm Planetary Gearbox Reducer Planetary Gearboxes Use for Servo Stepper Motor
High Torque 42mm Planetary Gearbox Reducer Planetary Gearboxes Use for Servo Stepper Motor
High Torque 42mm Planetary Gearbox Reducer Planetary Gearboxes Use for Servo Stepper Motor
High Torque 42mm Planetary Gearbox Reducer Planetary Gearboxes Use for Servo Stepper Motor
High Torque 42mm Planetary Gearbox Reducer Planetary Gearboxes Use for Servo Stepper Motor
High Torque 42mm Planetary Gearbox Reducer Planetary Gearboxes Use for Servo Stepper Motor
High Torque 42mm Planetary Gearbox Reducer Planetary Gearboxes Use for Servo Stepper Motor

High Torque 42mm Planetary Gearbox Reducer Planetary Gearboxes Use for Servo Stepper Motor

Inquiry
  • Overview
  • Recommended Products
High Torque 42mm Planetary Gearbox Reducer Planetary Gearboxes Use for Servo Stepper Motor factory
High Torque 42mm Planetary Gearbox Reducer Planetary Gearboxes Use for Servo Stepper Motor details
SPECIFICATIONS
STAGE
RATIO
RATED TORQUE (N.m)
HPS42 Planetary Gearbox
L1
3
8
4
9
5
9
7
5
10
5
L2
16
10
20
12
25
12
28
10
30
10
35
10
40
10
50
10
70
10
100
5
Rated Input Speed (rpm)
1000
Max Input Speed (rpm)
2000
Backlash
L1
≤ 15Arcmin
L2
≤ 20Arcmin
Fault stop torque(N.m)
2 times of rated torque
Efficiency
L1
96%
L2
94%
Average life span
20000h
Operating temperature
-10°~+150°
Nosie
≤55 db
IP
54
Installation method
Any installation method
