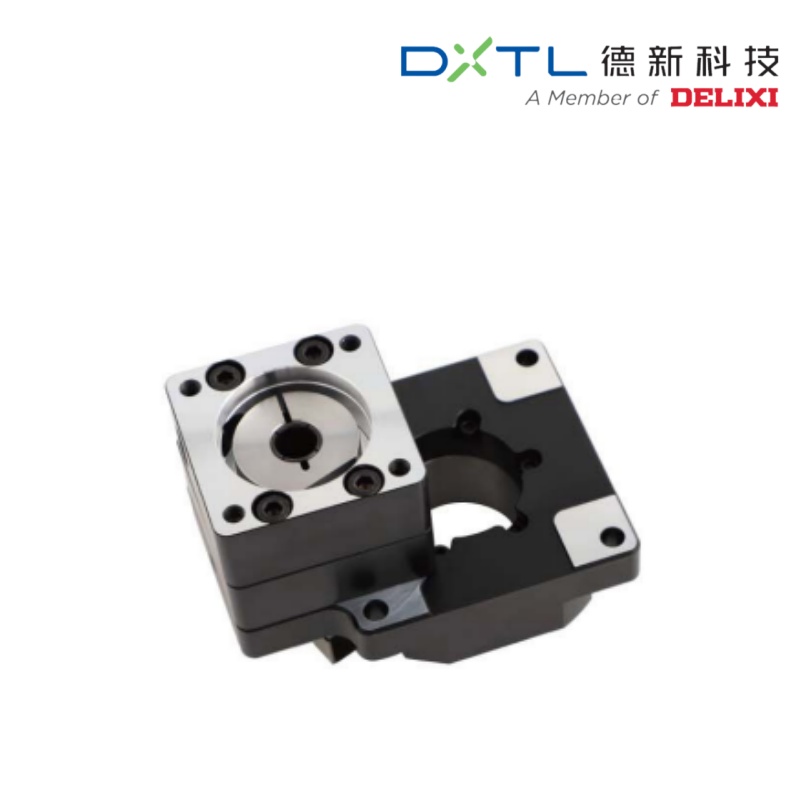

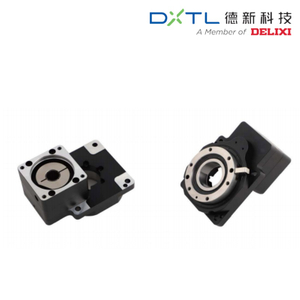

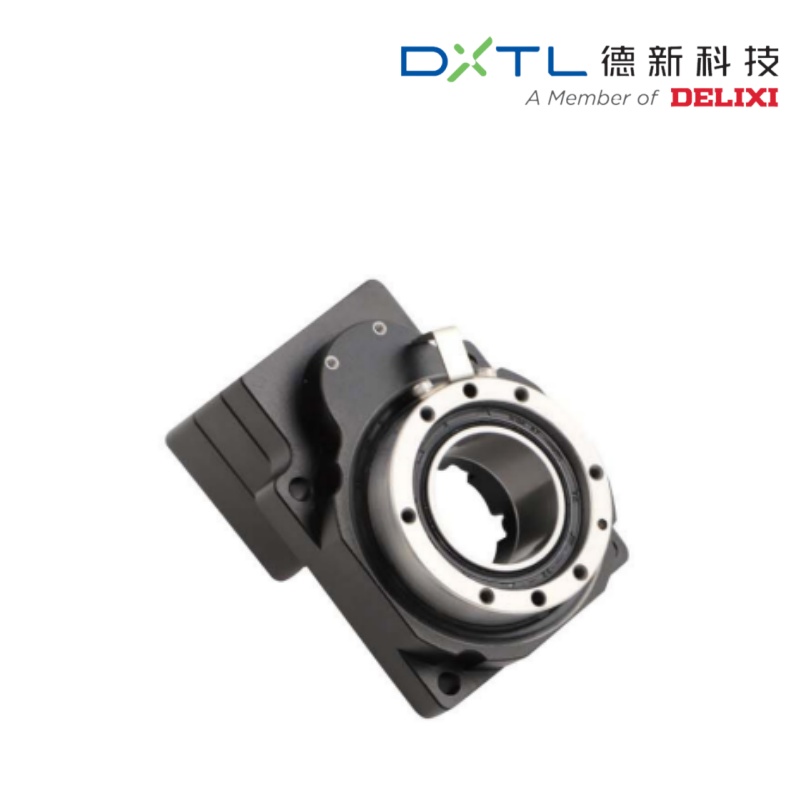

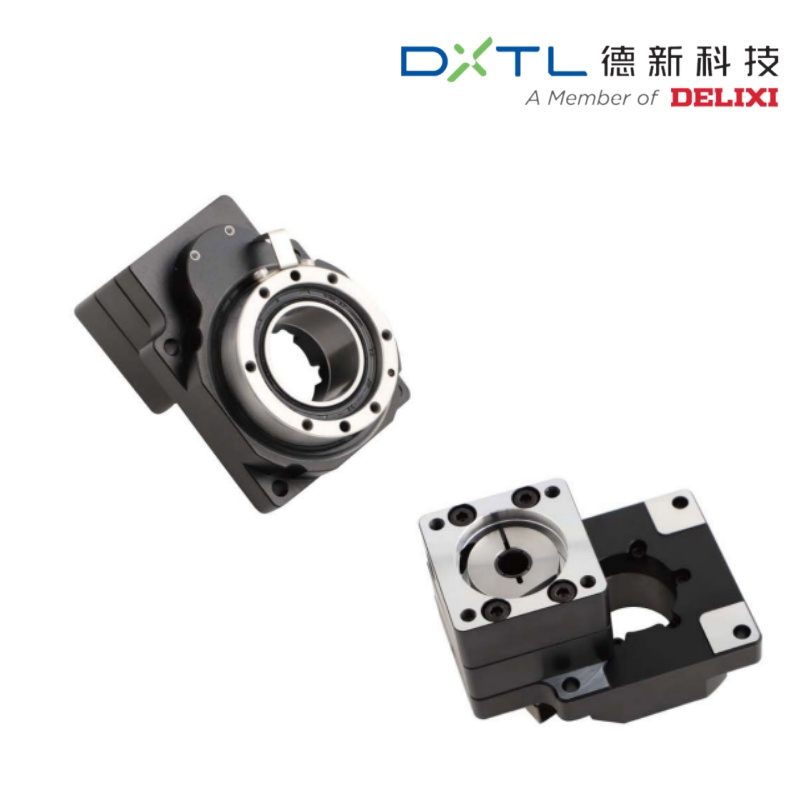

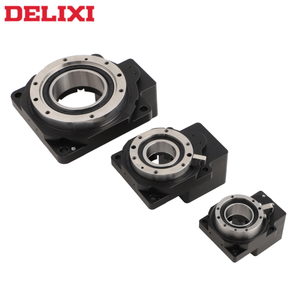

Hollow rotate platform is driven by motor to automate angle adjustment. Precision gear transmission, angle adjustment without limit. Precision shaft system design ensures high precision and large load bearing; stepping motor and transmission parts are connected by imported high-quality elastic couplings to exclude space and machining shape and position errors. The outer ring of the rotate platform surface is intuitively graduated; standard interface, convenient signal transmission; manual handwheel configuration, electric control manual are available. Servo motor or stepping motor is optional.
1.Universal series with highly flexible input connections
2.Equipped with servo motors, stepper motors, planetary gearboxes and rotators.
3.Swivel surface for direct connection of working parts, easy to install
4.Hollow design, easy to use for wiring and piping.
5.High precision, return gap 0.5arcmin
| Reduction Ratio | 5:1 / 10:1 |
| Allowable Output Speed | 200rpm |
| Weight | 1.0kg |
| Life Span | 20000h |
| Positioning Accuracy | 3arcmin |
| Repeatable Positioning Accuracy | ±15arcsec |
| Allowed Output | 5.2N.m / 4.5N.m |
| Axial Load | 10kg |
| Parallelism of Rotate Platform | ≤0.015mm |
| Coaxiality of Rotate Platform | ≤0.010mm |
| Protection Level | IP 40 |
| Transmission Efficiency | 95% |
| Lubrication Method | Grease for long-lasting lubrication |
| Noises | ≤65dB |
| Adapted Motors | Φ8-26/Φ30-3.5/M3-Φ45 |
V1: Adapt to 100W servo motor, install holes M3, distributed circle Φ45
V2: Adapt to 100W servo motor, install holes M4, distributed circle Φ46
T1: Adapt to 42-step motor, install holes M3, distributed circle Φ43.8
Please inquire us for more details of this product!
Hollow rotate platform is driven by motor to automate angle adjustment. Precision gear transmission, angle adjustment without limit. Precision shaft system design ensures high precision and large load bearing; stepping motor and transmission parts are connected by imported high-quality elastic couplings to exclude space and machining shape and position errors. The outer ring of the rotate platform surface is intuitively graduated; standard interface, convenient signal transmission; manual handwheel configuration, electric control manual are available. Servo motor or stepping motor is optional.
1.Universal series with highly flexible input connections
2.Equipped with servo motors, stepper motors, planetary gearboxes and rotators.
3.Swivel surface for direct connection of working parts, easy to install
4.Hollow design, easy to use for wiring and piping.
5.High precision, return gap 0.5arcmin
| Reduction Ratio | 5:1 / 10:1 |
| Allowable Output Speed | 200rpm |
| Weight | 1.0kg |
| Life Span | 20000h |
| Positioning Accuracy | 3arcmin |
| Repeatable Positioning Accuracy | ±15arcsec |
| Allowed Output | 5.2N.m / 4.5N.m |
| Axial Load | 10kg |
| Parallelism of Rotate Platform | ≤0.015mm |
| Coaxiality of Rotate Platform | ≤0.010mm |
| Protection Level | IP 40 |
| Transmission Efficiency | 95% |
| Lubrication Method | Grease for long-lasting lubrication |
| Noises | ≤65dB |
| Adapted Motors | Φ8-26/Φ30-3.5/M3-Φ45 |
V1: Adapt to 100W servo motor, install holes M3, distributed circle Φ45
V2: Adapt to 100W servo motor, install holes M4, distributed circle Φ46
T1: Adapt to 42-step motor, install holes M3, distributed circle Φ43.8
Please inquire us for more details of this product!
