Introduction of Machining Accuracy

In modern manufacturing, machining accuracy serves as a pivotal indicator of product quality, directly correlating with a product's functional performance, service life, and market competitiveness. Machining accuracy encompasses several key aspects, including but not limited to dimensional accuracy control, form accuracy assurance, positional accuracy requirements, surface roughness management, cutting force and vibration impacts, tool wear and accuracy, thermal deformation control strategies, and machining environment stability. The following is a detailed exploration of these aspects.

1. Dimensional Accuracy Control

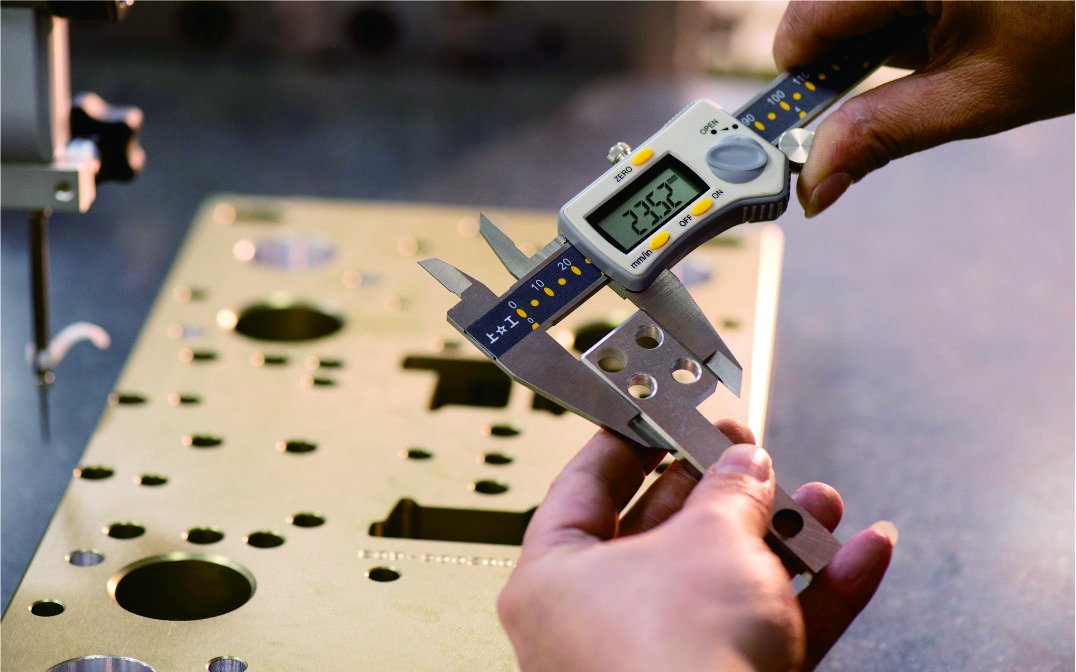

Dimensional accuracy refers to the closeness of a machined part's dimensional parameters to their ideal values. To achieve high dimensional accuracy, precision measurement tools (such as laser measuring instruments and coordinate measuring machines, CMMs) are employed for real-time monitoring and calibration, coupled with CNC (Computer Numerical Control) technology to precisely control the machine tool's motion trajectory, ensuring each machining process meets preset dimensional requirements. Furthermore, rational process design and clamping methods are crucial for enhancing dimensional accuracy.

2. Form Accuracy Assurance

Form accuracy denotes the deviation between a part's actual shape and its ideal shape. To guarantee form accuracy, appropriate machining methods and process parameters must be selected, such as employing grinding and lapping for high-precision work. Regular inspection and calibration of machine tools and fixtures are essential to prevent form errors caused by equipment aging or improper installation.

3. Positional Accuracy Requirements

Positional accuracy pertains to the accuracy of the relative positions of various geometric elements on a part, including hole center distances, parallelism, and perpendicularity. To enhance positional accuracy, precise fixture design and positioning methods are required, such as using precision locating pins and floating supports to ensure stable positioning during machining. Additionally, strengthening the rigidity and stability of machine tools can minimize positional deviations caused by vibrations.

4. Surface Roughness Management

Surface roughness directly impacts a part's wear resistance, corrosion resistance, and sealing properties. Managing surface roughness involves selecting suitable machining methods and process parameters based on the part's functional requirements, including ultraprecision machining and polishing. Rational choice of tool materials, angles, and lubrication methods can also effectively reduce surface roughness.

5. Cutting Force and Vibration Impacts

Excessive cutting forces and vibrations are significant factors affecting machining accuracy. They can intensify tool wear and cause machine tool vibrations, leading to machining errors. Therefore, optimizing cutting parameters, selecting high-rigidity tools and fixtures, and enhancing machine tool stability are crucial for mitigating cutting forces and vibrations.

6.Tool Wear and Accuracy

Tool wear directly influences machining accuracy and surface quality. To reduce tool wear, selecting suitable tool materials for the workpiece material, such as carbide, ceramic, or diamond tools, and controlling cutting parameters are essential. Regular tool inspection and replacement are necessary to avoid using excessively worn tools for machining.

7. Thermal Deformation Control Strategies

Heat generated during machining can cause thermal deformation of the machine tool, tool, and workpiece, thereby affecting machining accuracy. To control thermal deformation, effective cooling systems are employed to dissipate cutting heat promptly. Additionally, reducing continuous high-intensity cutting operations, and avoiding prolonged exposure of machine tools to high temperatures are essential.

In summary, enhancing machining accuracy is a systematic endeavor requiring consideration of multiple dimensions, including dimensional, form, positional, and surface roughness accuracies. Comprehensive measures must be taken, incorporating cutting forces, vibrations, tool wear, thermal deformation, and machining environment factors, to achieve high-precision, high-quality product machining.
