How to Adjust Slot Die Parameters for Uniform Coating?

Achieving uniform coating starts with knowing which slot die parameters matter most and how they affect the final result. The core parameters to focus on are die gap, coating pressure, substrate speed, and fluid viscosity. The die gap is the distance between the slot die lips—it directly controls the initial coating thickness. Too narrow a gap leads to thin, uneven layers; too wide causes excess material and drips. Coating pressure determines how the fluid flows out of the slot die—stable, consistent pressure ensures even dispensing. Substrate speed (how fast the material being coated moves) works with pressure: faster speeds need higher pressure to maintain thickness, while slower speeds require lower pressure. Fluid viscosity (how thick the coating material is) also plays a role—thicker fluids need a wider die gap or higher pressure to flow smoothly. Understanding how these parameters interact helps you make targeted adjustments instead of guesswork.

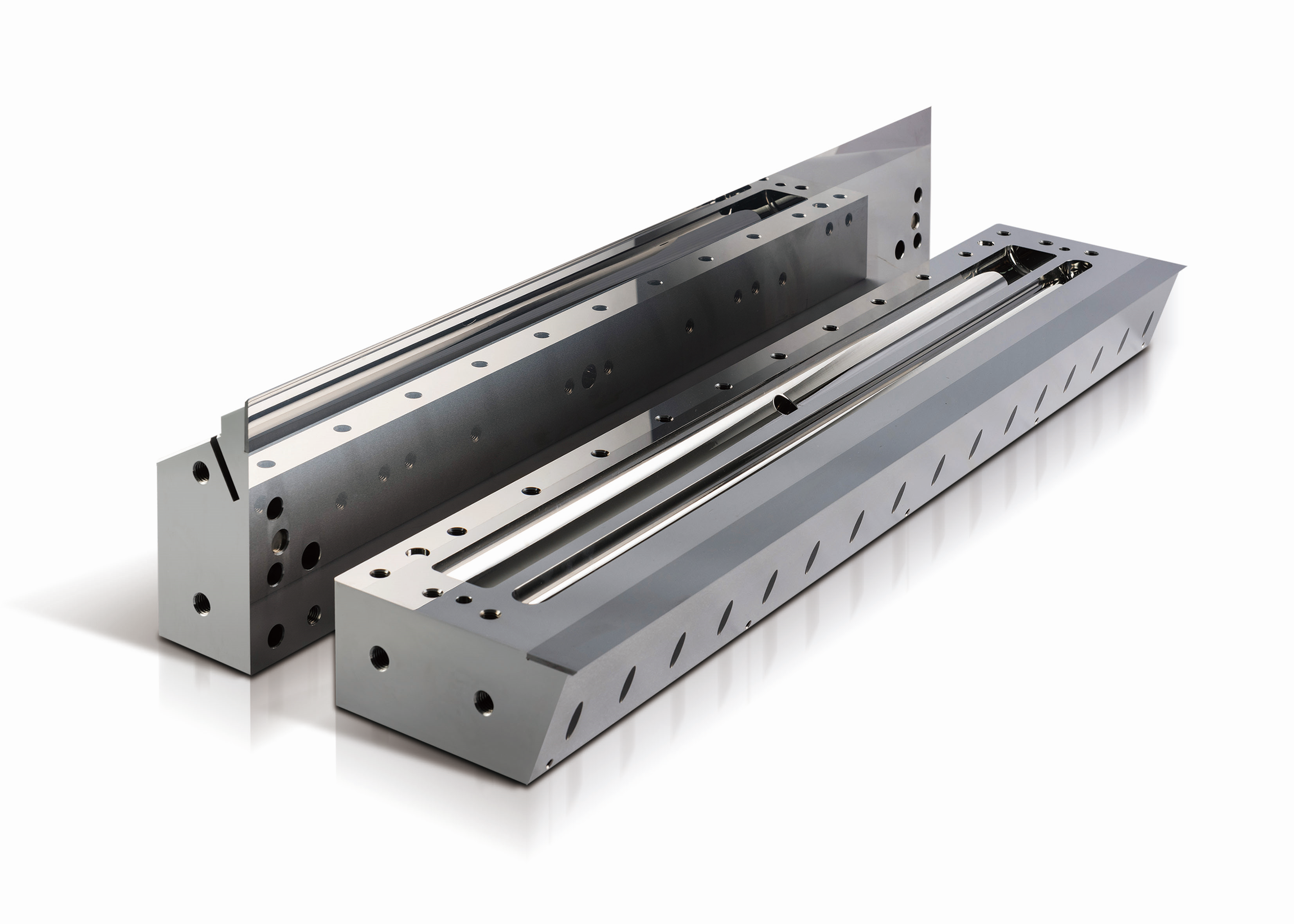

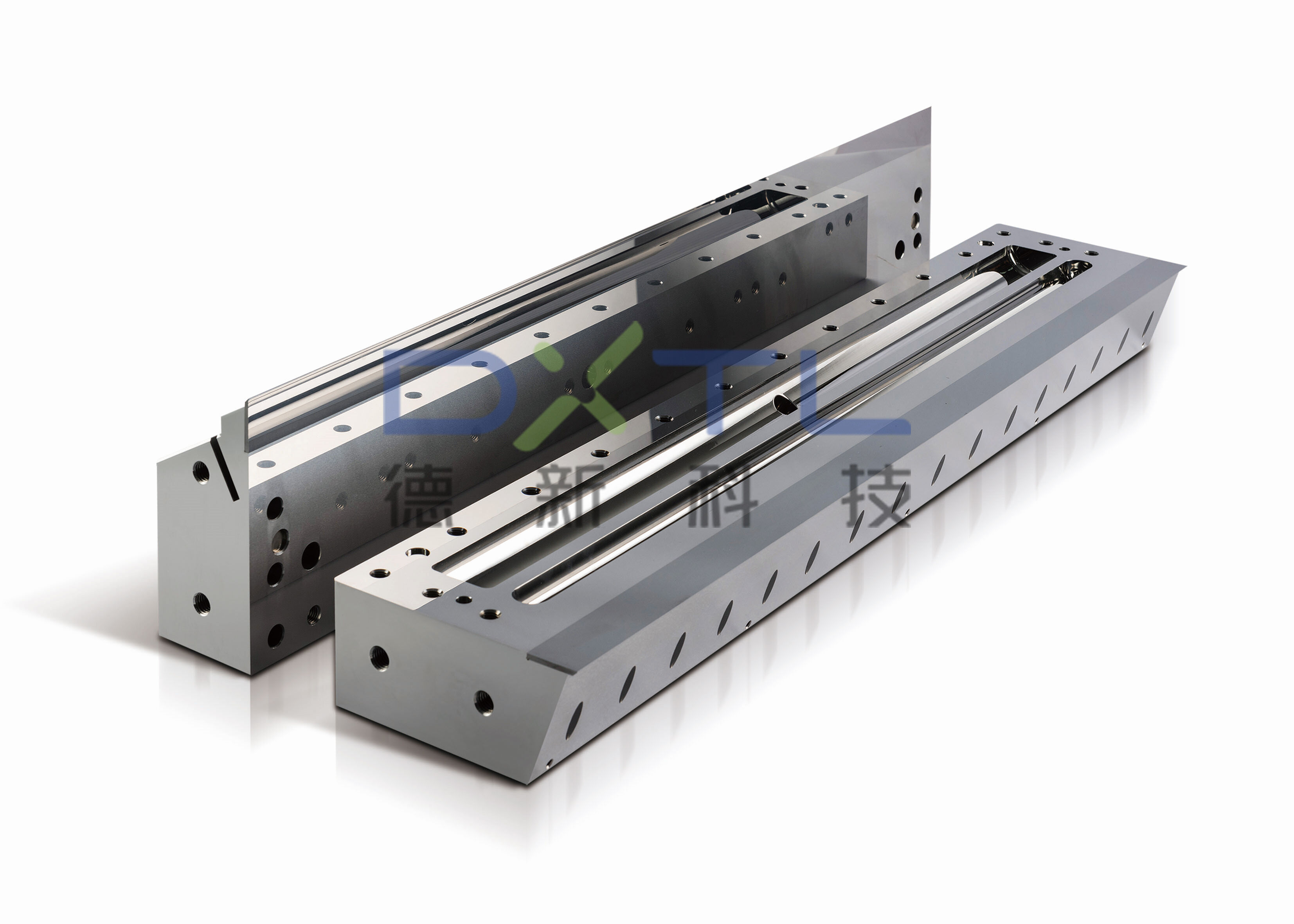

The die gap is the foundation of uniform coating, so calibrating it correctly is non-negotiable. Start by cleaning the slot die lips thoroughly—any debris or dried material will throw off gap measurements. Use a feeler gauge (the most accurate tool for this task) to check the gap at multiple points along the slot die—left, middle, right, and several spots in between. The goal is to have the same gap width across the entire length of the slot die. If one side is narrower, adjust the die bolts gently to widen it; if wider, tighten the bolts slightly. Make small adjustments (1-2 thousandths of an inch at a time) and recheck with the feeler gauge. For automated slot die systems, use the control panel to adjust the gap, but still verify manually. A consistent die gap ensures the coating material flows evenly from the slot die, preventing thin spots on one side and thick spots on the other.

Coating pressure and flow rate are closely linked—getting this balance right keeps the slot die dispensing material evenly. Start with the manufacturer’s recommended pressure range for your coating material and substrate. Use a pressure regulator to set a baseline pressure, then run a test coating. If the coating is uneven (streaks or gaps), adjust the pressure slightly. Higher pressure increases flow rate, which can fix thin spots, but too much pressure causes overcoating or splattering. Lower pressure reduces flow, helping with thick, uneven areas. For slot die systems with multiple channels, ensure each channel has the same pressure—imbalances here lead to striped or patchy coatings. Use a flow meter to monitor the output from the slot die, making sure it’s consistent throughout the run. Stable pressure and flow rate mean the slot die delivers the same amount of material across the substrate, resulting in a smooth, uniform layer.

Substrate speed is a critical parameter that needs to sync with die gap and pressure for uniform coating. If the substrate moves too fast relative to the slot die’s flow rate, the coating will be too thin; too slow, and it will be too thick or uneven. Start by setting the substrate speed to the manufacturer’s suggestion, then adjust based on test results. For example, if the coating is thin and spotty, slow down the speed or increase pressure to compensate. If it’s thick and drippy, speed up the substrate or reduce pressure. It’s also important to ensure the substrate moves at a constant speed—fluctuations cause thickness variations. Use the slot die system’s speed control to maintain consistency, and check the substrate for wrinkles or uneven tension (these can also affect coating uniformity). Syncing speed with other slot die parameters creates a balanced process where the material is applied evenly as the substrate moves past the die.

Even with initial parameter setup, you may need to fine tune and troubleshoot to get flawless uniform coating. After running a test, inspect the coated substrate closely—look for streaks, bubbles, thin edges, or thick patches. If you see streaks, check the slot die lips for debris (clean them gently) or adjust the die gap slightly. Bubbles often mean air is entering the fluid line—bleed the line to remove air before adjusting pressure. Thin edges (called “edge bead”) can be fixed by adjusting the slot die’s end plates or reducing pressure slightly at the edges. For thick patches, ensure the substrate is flat and tension is even, or reduce local pressure. Keep a log of adjustments—note what parameter you changed, how much, and the result. This helps you replicate successful settings for future jobs. Regularly clean the slot die and check fluid viscosity (thickeners or thinners may be needed) to maintain consistency. Fine tuning and troubleshooting turn good coating into perfect coating, ensuring the slot die performs at its best.
